CYLINDER HEAD COVER

GSX400S 1985 (F) GENERAL EXPORT (E01)

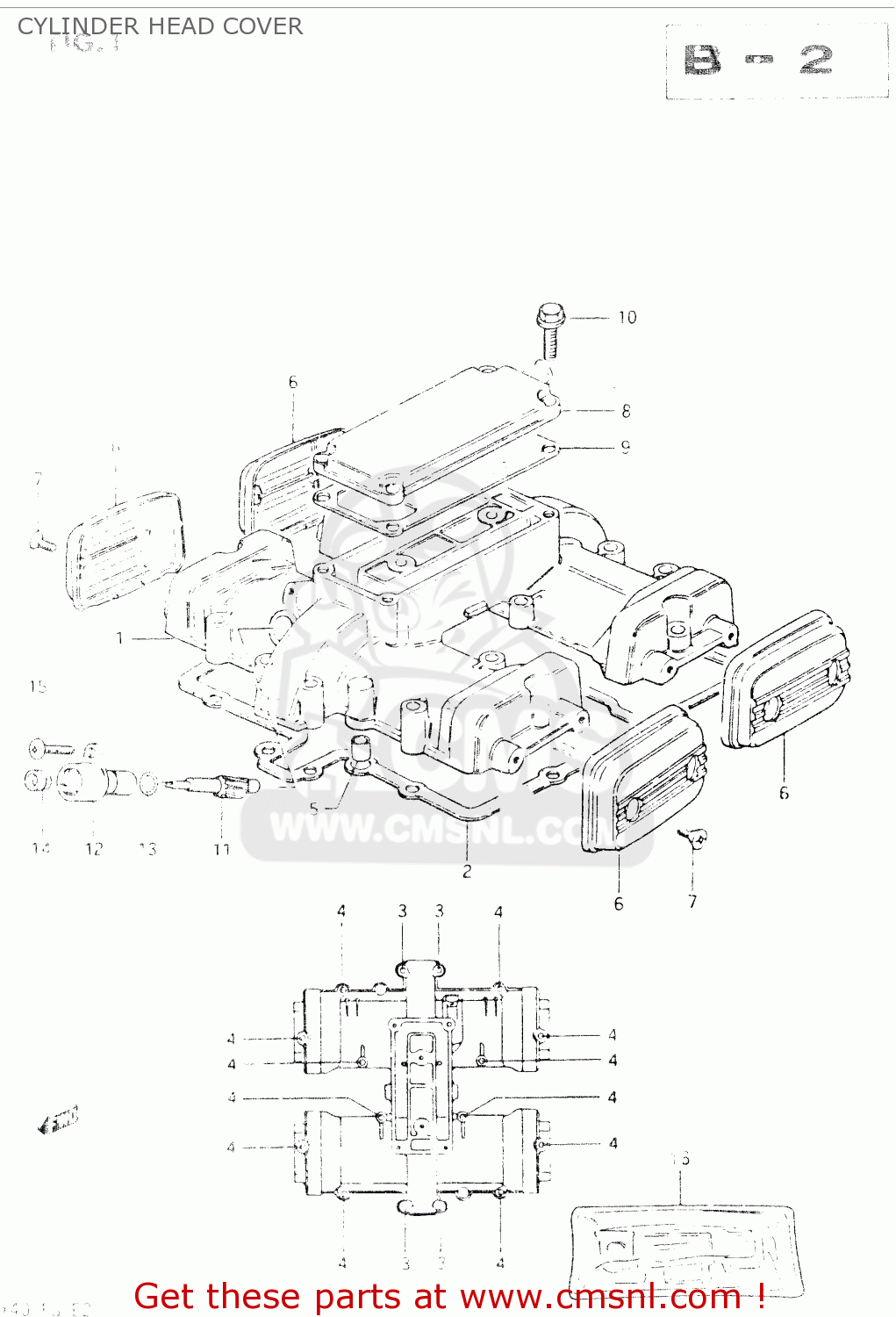

Cylinder head cover diagram GSX400S 1985 (F) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1117144220
ref: 1

COVER, CYLINDER HEAD

€ 118.00

1117344220
ref: 2

GASKET (MCA)

€ 33.00

0151706354
ref: 3

BOLT 6X35

€ 2.50

0151706305
ref: 4

BOLT 6X30

€ 2.50

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

1117449221
ref: 6

CAP,CYLINDER HEAD COVER

€ 23.00

0912705015
ref: 7

SCREW(5X12)

€ 2.00

1117645411
ref: 8

COVER,BREATHER

€ 24.50

1117745400
ref: 9

GASKET (MCA)

€ 19.00

0151706205
ref: 10

BOLT

€ 2.50

2643147003
ref: 11

GEAR,TACHOMETER DRIVEN

€ 29.00

2644149000
ref: 12

SLEEVE,TACHOMETER DRIVE GEAR

€ 18.00

2645145000A
ref: 13

SEAL,TACHOMETER DRIVEN

€ 4.50

0928905002
ref: 14

SEAL,OIL(5X12X8)

€ 11.00

0912805101
ref: 15

SCREW(5X12)

€ 1.50

16-1

1140144811
ref: 16-1
OPT MODEL E EXCEPT E

GASKET SET

€ 208.50

16-2

1140144812
ref: 16-2
OPT MODEL F EXCEPT E

GASKET SET

€ 208.50
