FUEL TANK (GSX400SE/SF/SG,GSX400EF E17)

GSX400S 1985 (F) GENERAL EXPORT (E01)

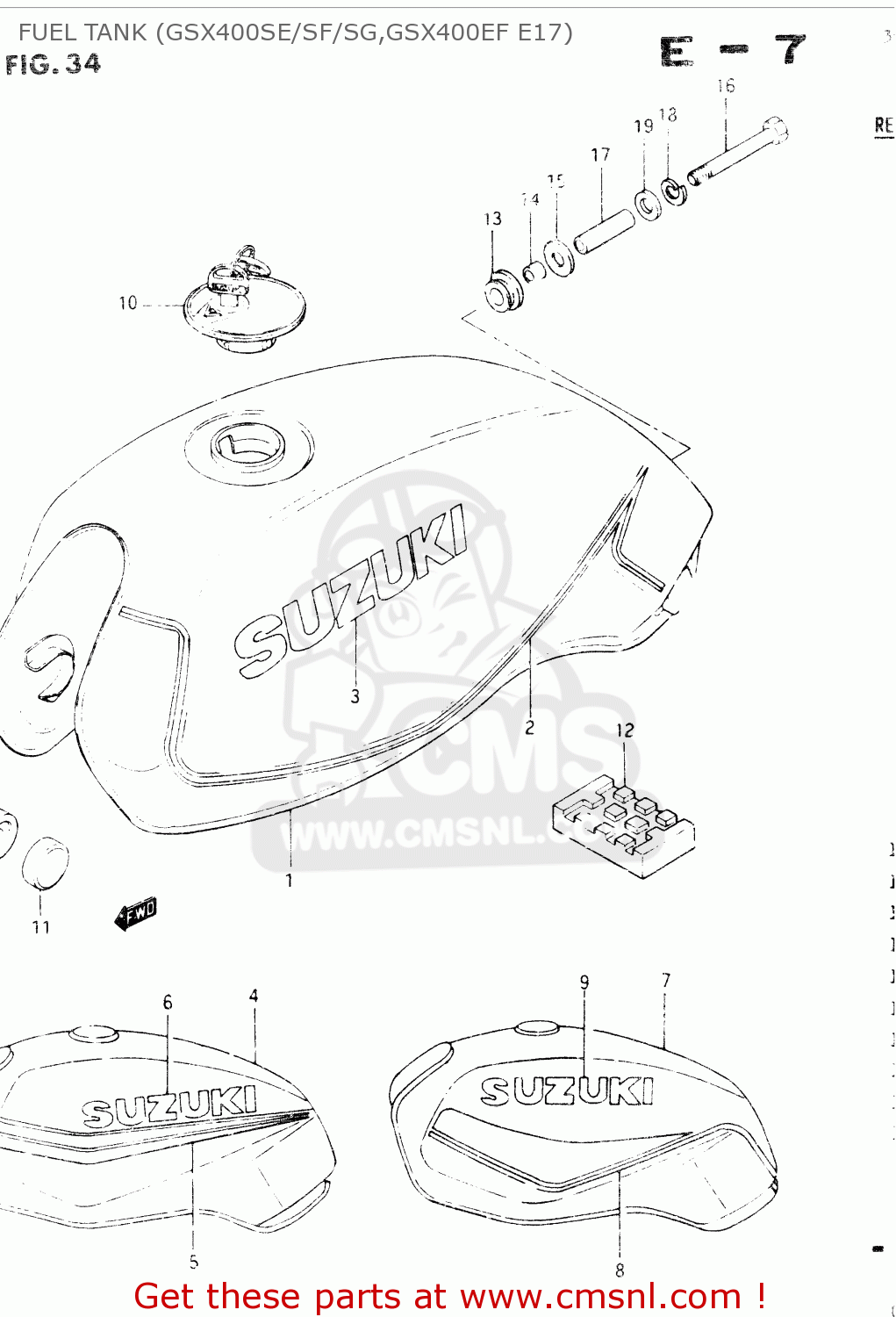

Fuel tank (gsx400se/sf/sg,gsx400ef e17) diagram GSX400S 1985 (F) GENERAL EXPORT (E01)

FUEL TANK (GSX400SE/SF/SG,GSX400EF E17) GSX400S 1985 (F) GENERAL EXPORT (E01)
FUEL TANK (GSX400SE/SF/SG,GSX400EF E17) GSX400S 1985 (F) GENERAL EXPORT (E01)
FUEL TANK (GSX400SE/SF/SG,GSX400EF E17) GSX400S 1985 (F) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
491004441087P
ref: 1-1
MODEL E
TANK ASSY, FUEL
€ 531.50
1-2
441004448087P
ref: 1-2
MODEL E E22
TANK ASSY, FUEL
€ 531.50
1-3
491004441086R
ref: 1-3
MODEL E
TANK ASSY, FUEL
€ 531.50
1-4
441004448086R
ref: 1-4
MODEL E E22
TANK ASSY, FUEL
€ 531.50
2-1
681104443087P
ref: 2-1
MODEL E,FOR 87P
TAPE SET, FUEL TANK
€ 0.00
2-2
681104443086R
ref: 2-2
MODEL E,FOR 86R
TAPE SET, FUEL TANK
€ 0.00
3
681114440007G
ref: 3
MODEL E
EMBLEM,FUEL TANK
€ 8.50
4-1
49100444507PD
ref: 4-1
MODEL F
TANK ASSY, FUEL
€ 531.50
4-2
49100444807PD
ref: 4-2
MODEL F E22
TANK ASSY, FUEL
€ 531.50
4-3
49100444507PE
ref: 4-3
MODEL F
TANK ASSY, FUEL
€ 531.50
4-4
49100444807PE
ref: 4-4
MODEL F E22
TANK ASSY, FUEL
€ 531.50
5-1
68110444507PN
ref: 5-1
MODEL F,FOR 7PD
TAPE SET, FUEL TANK
€ 0.00
5-2
68110444507PP
ref: 5-2
MODEL F,FOR 7PE
TAPE SET, FUEL TANK
€ 0.00
6
681110930022R
ref: 6
MODEL F
EMBLEM (WHITE)
€ 11.00
7-1
49200444507JX
ref: 7-1
MODEL G
TANK ASSY, FUEL
€ 0.00
7-2
49200444607JK
ref: 7-2
MODEL G E22
TANK ASSY, FUEL
€ 531.50
7-3
49200444507PD
ref: 7-3
MODEL G
TANK ASSY, FUEL
€ 531.50
7-4
49200444607PD
ref: 7-4
MODEL G E22
TANK ASSY, FUEL
€ 531.50
8-1
68110444706SG
ref: 8-1
MODEL G,FOR 7JK
TAPE SET, FUEL TANK
€ 0.00
8-2
681104447083Y
ref: 8-2
MODEL G,FOR 7PD
TAPE SET, FUEL TANK
€ 0.00
9-1
681124340007G
ref: 9-1
MODEL G,FOR 7JK
EMBLEM (ORANGE)
€ 9.50
9-2
681124340022R
ref: 9-2
MODEL G,FOR 7PD
EMBLEM
681124340022R
€ 9.50
10
4420034304KEY
ref: 10
CAP SET,FUEL TANK
€ 135.50
11
0932910007
ref: 11
CUSHION
0932910007
€ 3.00
12
4454134500
ref: 12
CUSHION,FUEL TANK CTR
4454134500
€ 13.00
13
0932010005
ref: 13
CUSHION
0932010005
€ 4.00
14
0918006030
ref: 14
SPACER (6.8X10X10)
0918006030
€ 2.00
15
0916006030
ref: 15
WASHER (6.5X29X1.6)
0916006030
€ 2.50
16
0110706608
ref: 16
BOLT 6X60
0110706608
€ 2.50
17
0918006130
ref: 17
SPACER(6.5X10.5X40)
0918006130
€ 10.00
18
0832121066
ref: 18
WASHER,LOCK
0832121066
€ 2.00
19
0832221066
ref: 19
WASHER, LOWER
0832221066
€ 2.00
