REAR SWINGING ARM

GSX400S 1985 (F) GENERAL EXPORT (E01)

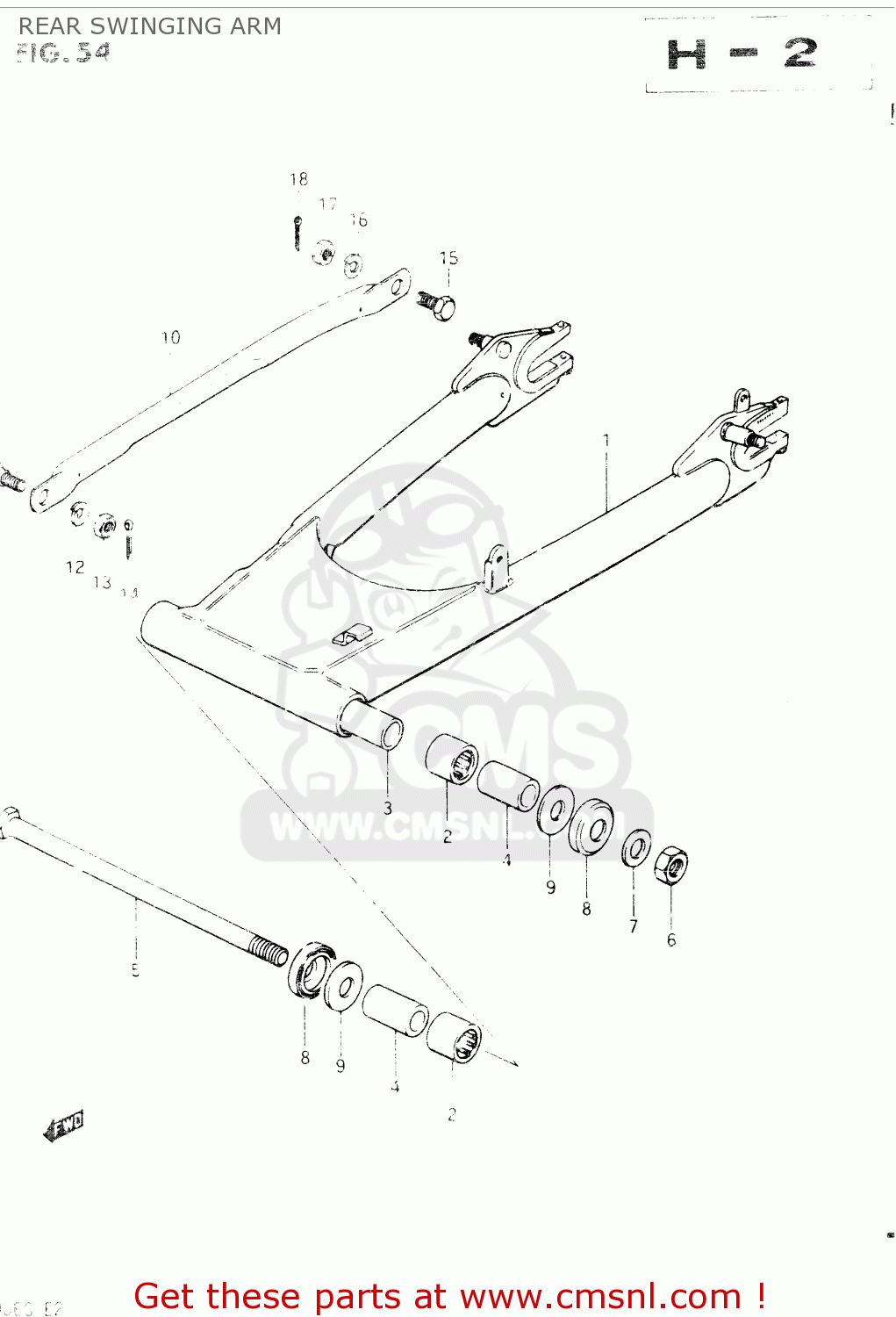

Rear swinging arm diagram GSX400S 1985 (F) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

6100044401019
ref: 1

ARM,REAR SWING

€ 247.50

0926322017
ref: 2

BEARING(22X29X30)

€ 18.50

6128144001
ref: 3

SPACER,SWINGINGARM CTR

€ 12.00

6125145001
ref: 4

SPACER,RR SWGARM PIVOT

€ 12.50

6121144400
ref: 5

SHAFT,REAR SWING ARM

€ 20.50

0831921148
ref: 6

NUT 14MM

€ 3.00

0832211148
ref: 7

WASHER

€ 2.00

6126245002
ref: 8

CVR,RR SWGARM DUST SEAL(OD:40)

€ 4.50

0916014020
ref: 9

WASHER(14.2X34X1)

€ 2.50

6431144200019
ref: 10

LINK,REAR TORQUE

€ 13.00

0911110010
ref: 11

BOLT(10X24.5)

€ 5.50

0832121108
ref: 12

LOCK WASHER

€ 2.00

0831022108
ref: 13

NUT

€ 2.50

0411120208
ref: 14

PIN 20X20

€ 1.50

0910110003
ref: 15

BOLT(10X31)

€ 4.00

0832121108
ref: 16

LOCK WASHER

€ 2.00

0831011108
ref: 17

NUT

€ 2.50

0411120208
ref: 18

PIN 20X20

€ 1.50
