FRONT BRAKE HOSE

GSX400S 1985 (F) GENERAL EXPORT (E01)

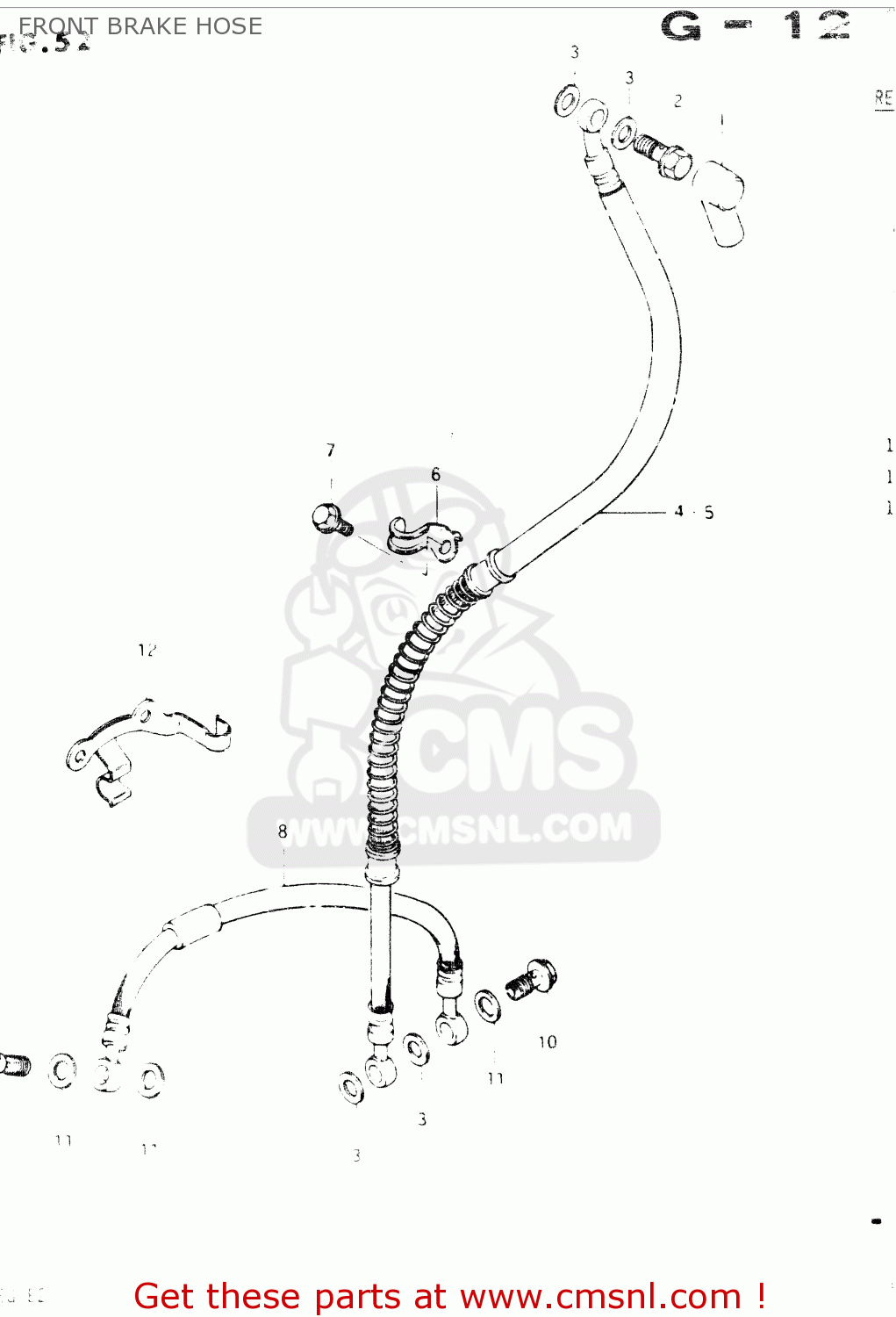

Front brake hose diagram GSX400S 1985 (F) GENERAL EXPORT (E01)

FRONT BRAKE HOSE GSX400S 1985 (F) GENERAL EXPORT (E01)

FRONT BRAKE HOSE GSX400S 1985 (F) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

5971149001
ref: 1

BOOT,MASTER CYLINDER

€ 8.50

2

0936010017
ref: 2

BOLT UNION

€ 6.50

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

5948011501
ref: 4
L:850

HOSE,FR BRAKE

€ 74.50

5

5948011511
ref: 5
L:830

HOSE, BRAKE (FLAT HANDLEBAR)

€ 57.50

6

5924611400
ref: 6

GUIDE,BRAKE HOSE NO.3

€ 4.50

7-1

0151706105
ref: 7-1

BOLT

€ 2.50

7-2

0151706125
ref: 7-2

BOLT 6X12

€ 2.50

8

5952011400
ref: 8

HOSE,ANTI NOSE

€ 66.50

9

0936010021
ref: 9

BOLT UNION

€ 5.50

10

0936010018
ref: 10

BOLT UNION

€ 7.00

11

0916110009
ref: 11

WASHER(10X15X1.5)

€ 2.00

12

5927045901
ref: 12

CLAMP,BRAKE HOSE,LEFT

€ 9.50
