BATTERY

GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)

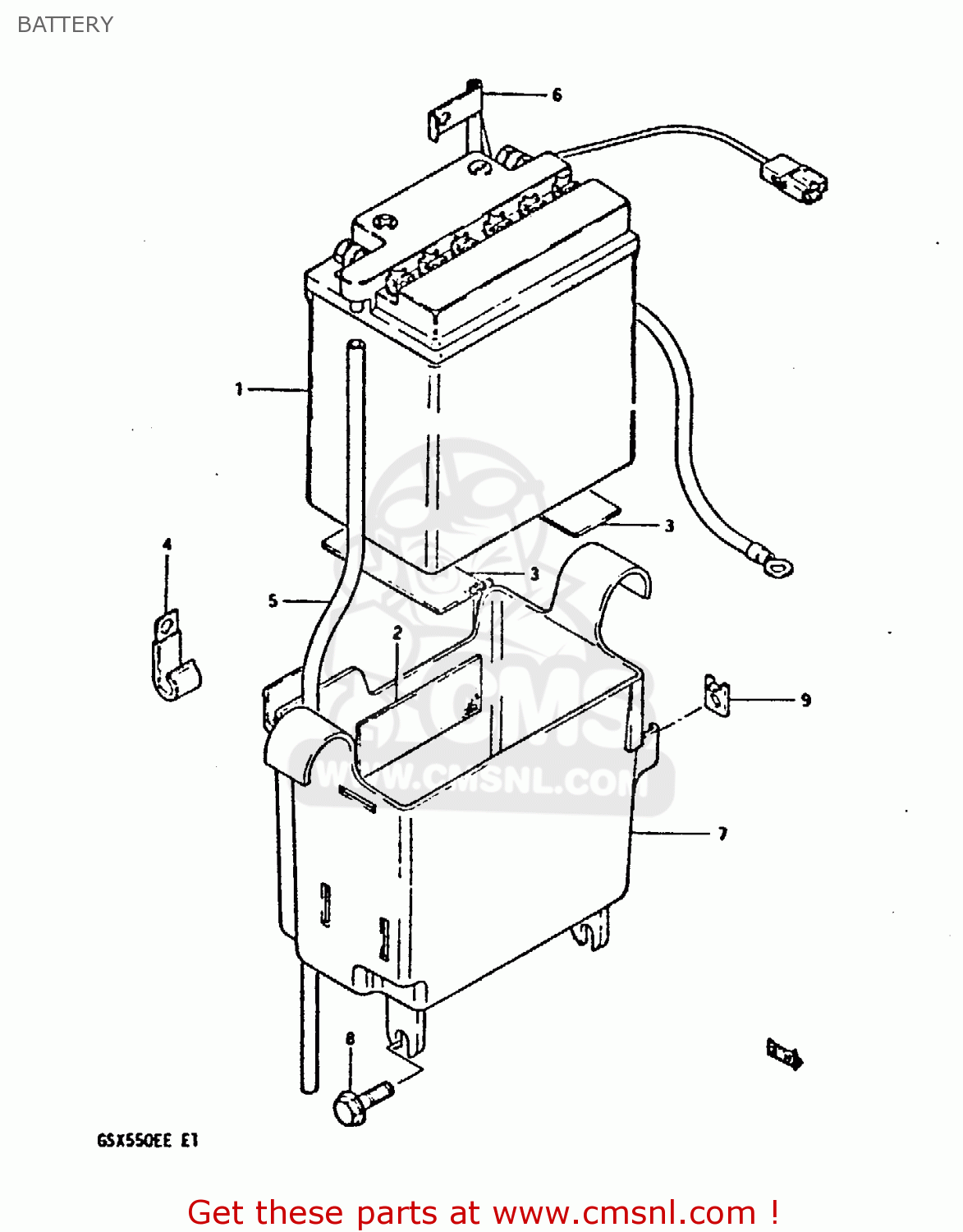

Battery diagram GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)

prices are in EUR

ref

part #

description

quantity

3361008310
ref: 1

BATTERY(YB10L-B,12V12AH)

€ 78.50

3365234000
ref: 2

PROTECTOR(30X80X2)

€ 4.50

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

0940309303
ref: 4

CLAMP

€ 5.50

3368031003
ref: 5

HOSE,BATTERY EXHAUST

€ 4.50

3385043400
ref: 6

WIRE,STARTER MOTOR LEAD

€ 10.50

4154143400
ref: 7

HOLDER,BATTERY

€ 20.50

0153406165
ref: 8

BOLT

€ 2.50

4154843400
ref: 9

WASHER,IGNITER

€ 0.00
