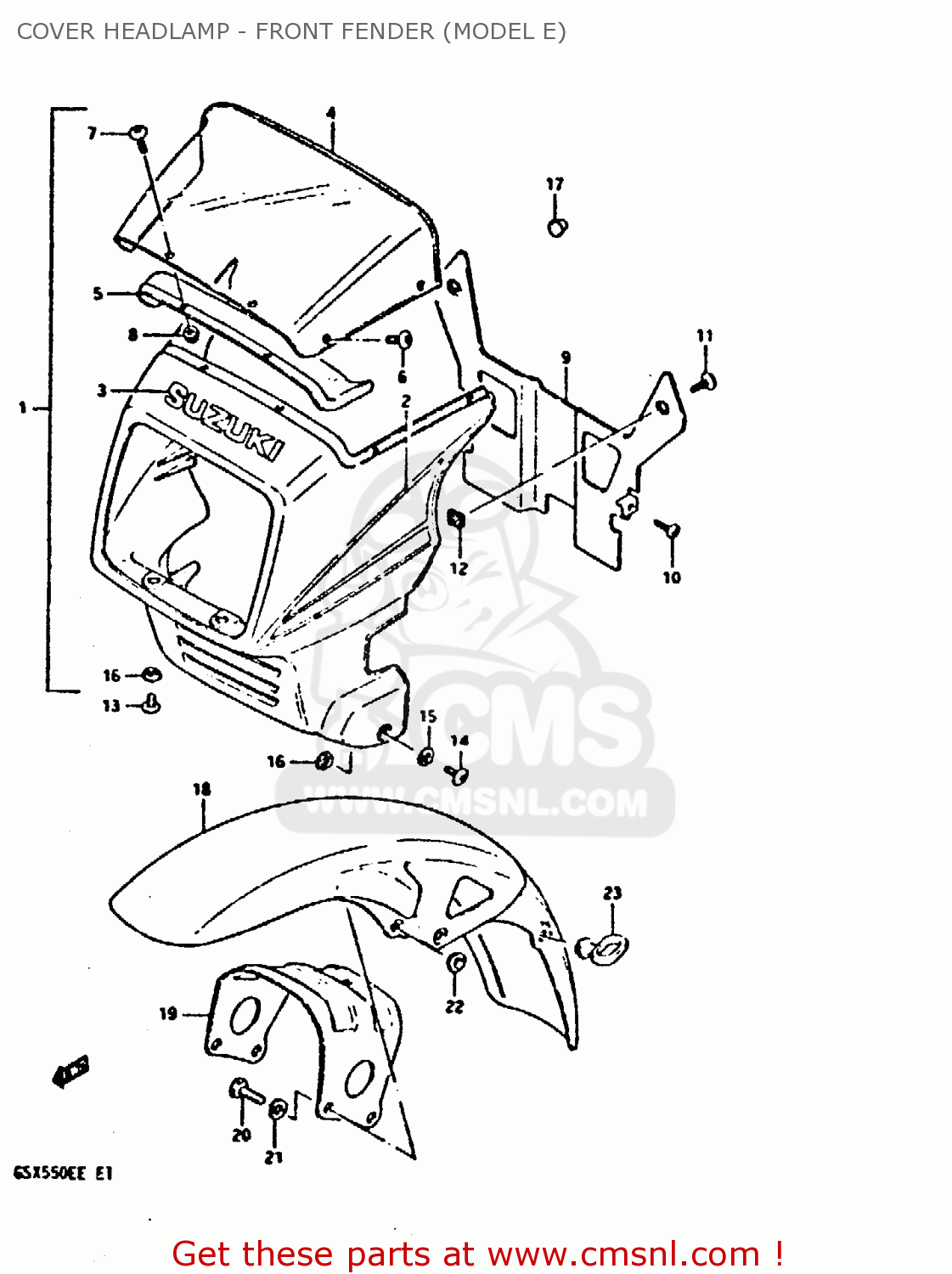

COVER HEADLAMP - FRONT FENDER (MODEL E) - GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)

ref

part #

description

quantity

1-1

518004341013Z
ref: 1-1
BLACK GSX550EE

COVER ASSY, HEADLAMP

€ 627.00

1-2

518004341007P
ref: 1-2
RED GSX550EE

COVER ASSY, HEADLAMP

€ 627.00

2-1

682504341071P
ref: 2-1
FOR 13Z GSX550EE

TAPE SET

€ 0.00

2-2

682504341060D
ref: 2-2
FOR 07P GSX550EE

TAPE SET

€ 0.00

3-1

6827143400764
ref: 3-1
FOR 13Z GSX550EE

EMBLEM

€ 0.00

3-2

6827143400064
ref: 3-2
FOR 07P GSX550EE

EMBLEM,HEADLAMP

€ 4.00

4

5184543400
ref: 4
GSX550EE

WINDOW,COVER HEADLAMP

€ 195.50

5

5184343400
ref: 5
GSX550EE

COVER,HEADLAMP,UPPER

€ 11.50

6

0913905021
ref: 6
GSX550EE

SCREW(5X12)

€ 2.00

7

0913905022
ref: 7
GSX550EE

SCREW

€ 2.50

8

0831931055
ref: 8
GSX550EE

NUT

€ 3.00

9

5187143400
ref: 9
GSX550EE

PLATE,HEADLAMP COVER

€ 11.50

10

0321105125
ref: 10
GSX550EE

SCREW

€ 2.00

11

0214204105
ref: 11
GSX550EE

SCREW

€ 1.50

12

0914804015
ref: 12
GSX550EE

NUT

€ 3.00

13

0214206125
ref: 13
GSX550EE

SCREW 6X12

€ 2.00

14

0214206125
ref: 14
GSX550EE

SCREW 6X12

€ 2.00

15

0916006039
ref: 15
GSX550EE

WASHER (6.5X18X1.6)

€ 2.00

16

0916906034
ref: 16
GSX550EE

WASHER

€ 2.50

17

0925006007
ref: 17
GSX550EE

PLUG

€ 2.00

18-1

531114340013Z
ref: 18-1

FENDER, FRONT (BLACK)

€ 209.00

18-2

531114340007P
ref: 18-2

FENDER, FRONT (RED)

€ 209.00

18-3

531114340004Y
ref: 18-3
GSX550ESE/EFE

FENDER,FRONT

€ 209.00

19

5311443400
ref: 19

BRACE,FRONT FENDER

€ 18.00

20

0110708168
ref: 20

BOLT

€ 2.00

21

0832121088
ref: 21

LOCK WASHER

€ 2.00

22

0916908034
ref: 22

WASHER

€ 2.00

23

5862121203A
ref: 23

GUIDE,CABLE

€ 7.50

COVER HEADLAMP - FRONT FENDER (MODEL E)

all assemblies
