REAR BRAKE HOSE

GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)

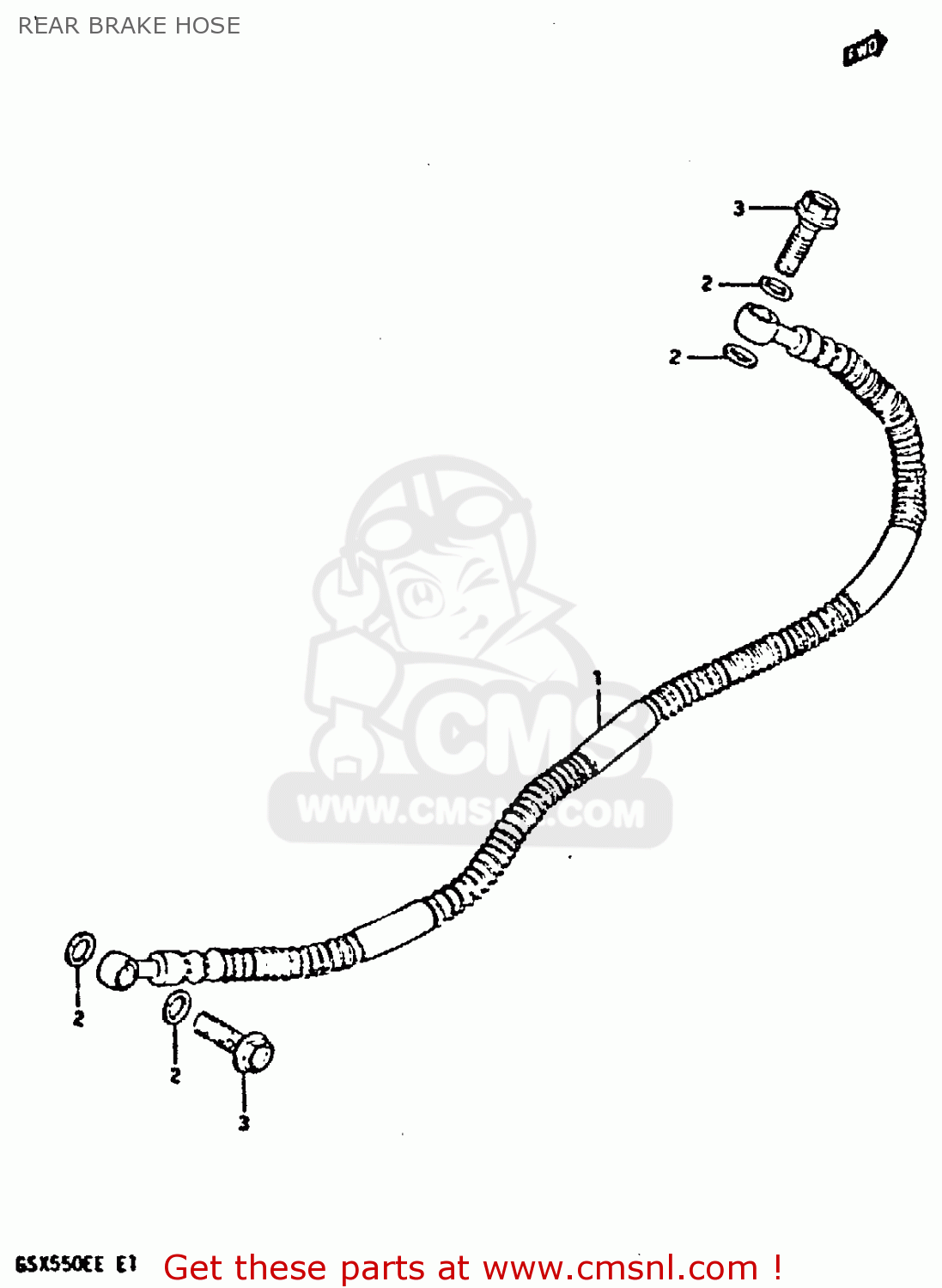

Rear brake hose diagram GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)

REAR BRAKE HOSE GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)

REAR BRAKE HOSE GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)

prices are in EUR

ref

part #

description

quantity

1

6948043403
ref: 1

HOSE,REAR BRAKE

€ 72.00

2

0916110005
ref: 2

WASHER

€ 2.00

3

0936010009
ref: 3

BOLT UNION

€ 6.50
