HANDLEBAR (GSX550ESD/ESE/EFE)

GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)

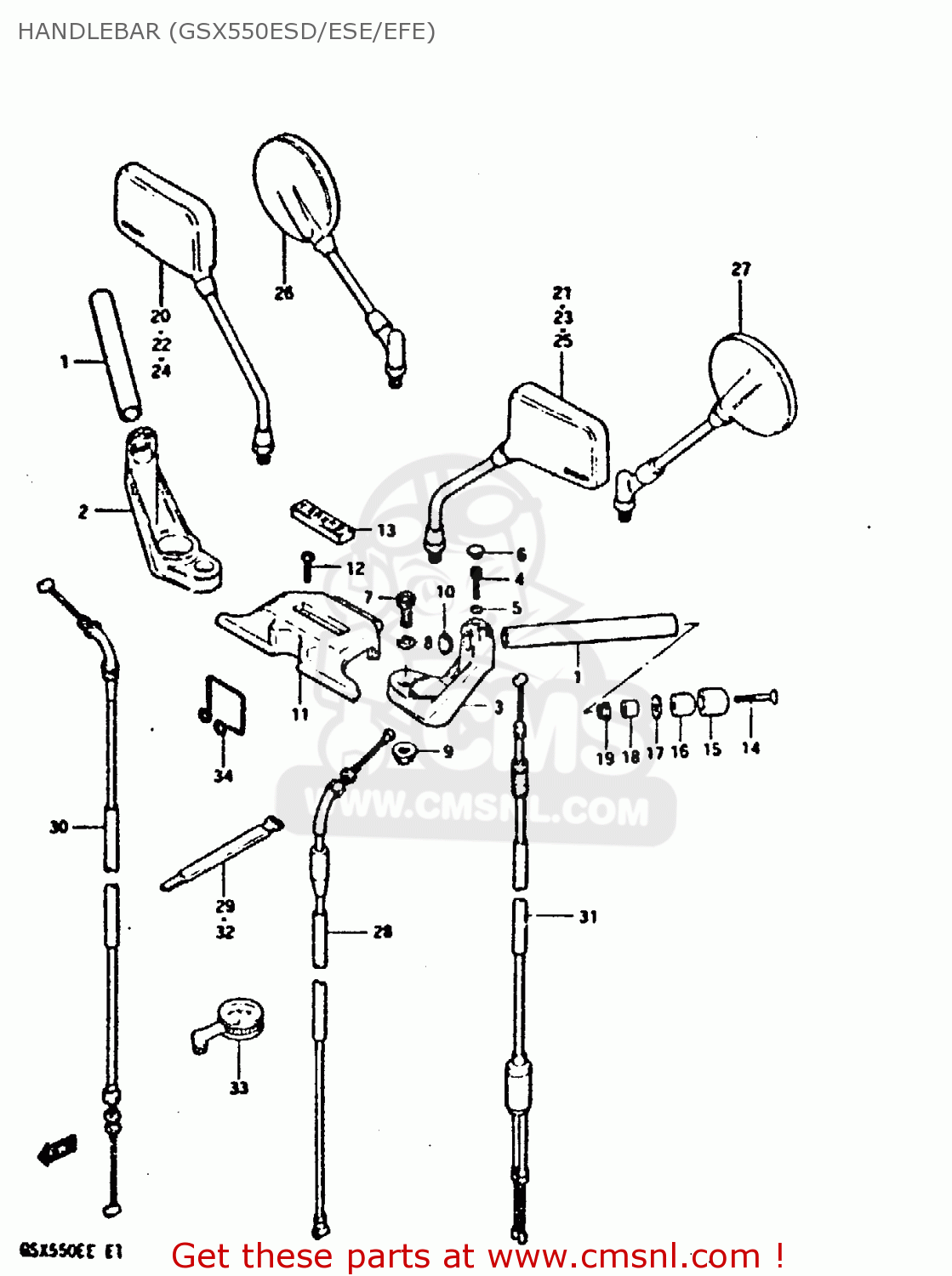

Handlebar (gsx550esd/ese/efe) diagram GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)

HANDLEBAR (GSX550ESD/ESE/EFE) GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)

HANDLEBAR (GSX550ESD/ESE/EFE) GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)

prices are in EUR

ref

part #

description

quantity

1

5611131330
ref: 1

HANDLEBAR

€ 20.00

2-1

5621143421
ref: 2-1
MODEL D

HOLDER,HANDLEBAR

€ 62.50

2-2

5621143422
ref: 2-2
MODEL E

HOLDER,HANDLEBAR,RIGHT

€ 62.50

3-1

5622143421
ref: 3-1
MODEL D

HOLDER,HANDLEBAR

€ 163.50

3-2

5622143422
ref: 3-2
MODEL E

HOLDER,HANDLEBAR,LEFT

€ 163.50

4

0711008355
ref: 4

BOLT 8X35

€ 4.00

5

0916408015
ref: 5

WASHER

€ 3.00

6

0925006004
ref: 6

CAP(OD:14.5)

€ 1.50

7

0910610023
ref: 7

BOLT(10X50)

€ 6.00

8

0916410005
ref: 8

WASHER

€ 6.50

9

0831921105
ref: 9

NUT

€ 3.00

10

5721543401
ref: 10

CAP,GRIP END

€ 4.00

11

5617043400
ref: 11

PAD,HANDLEBAR

€ 29.00

12

0211205358
ref: 12

SCREW

€ 1.50

13

6828143400
ref: 13

EMBLEM,HANDLE PAD

€ 9.50

14

0213206555
ref: 14

SCREW 6X55

€ 2.00

15

5627404700
ref: 15

CAP,BALANCER

€ 96.00

16

5627149410
ref: 16

BALANCER,HANDLEBAR

€ 14.50

17

5627534400
ref: 17

SPACER,BALANCER

€ 2.50

18

5627204700
ref: 18

EXPANDER,BALANCER

€ 5.00

19

0915906024
ref: 19

NUT

€ 2.00

20

NOTUSED
ref: 20

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

21

NOTUSED
ref: 21

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

22

NOTUSED
ref: 22

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

23

NOTUSED
ref: 23

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

24

NOTUSED
ref: 24

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

25

NOTUSED
ref: 25

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

26

5650009020
ref: 26
E2, E4, E21

MIRROR ASSEMBLY,RIGHT

€ 344.50

27

5650009020
ref: 27
E2, E4, E21

MIRROR ASSEMBLY,RIGHT

€ 344.50

28

5650010020
ref: 28
E2 F.NO.110119~

MIRROR ASSEMBLY,REAR VIEW

€ 90.00

29

5660010020
ref: 29
E2 F.NO.110119~

MIRROR ASSEMBLY,REAR VIEW

€ 92.00

30

5820043400
ref: 30

CABLE ASSY,CLUTCH

€ 22.50

31

0940718301
ref: 31

CLAMP

€ 6.00

32-1

5830043400
ref: 32-1
MODEL D

CABLE ASSEMBLY,THROTTLE

€ 27.00

32-2

5830043401
ref: 32-2
MODEL E

CABLE ASSEMBLY,THROTTLE

€ 27.00

33-1

5841043400
ref: 33-1
MODEL D

CABLE COMP,STARTER

€ 29.50

33-2

5841043401
ref: 33-2
MODEL E

CABLE COMP,STARTER

€ 29.50

34

0940718301
ref: 34

CLAMP

€ 6.00

35

9620041330
ref: 35

GAUGE ASSY,AIR PRESSURE

€ 77.50

36

5862131310
ref: 36

GUIDE,CABLE/HARNESS

€ 0.00
