SIGNAL GENERATOR

GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)

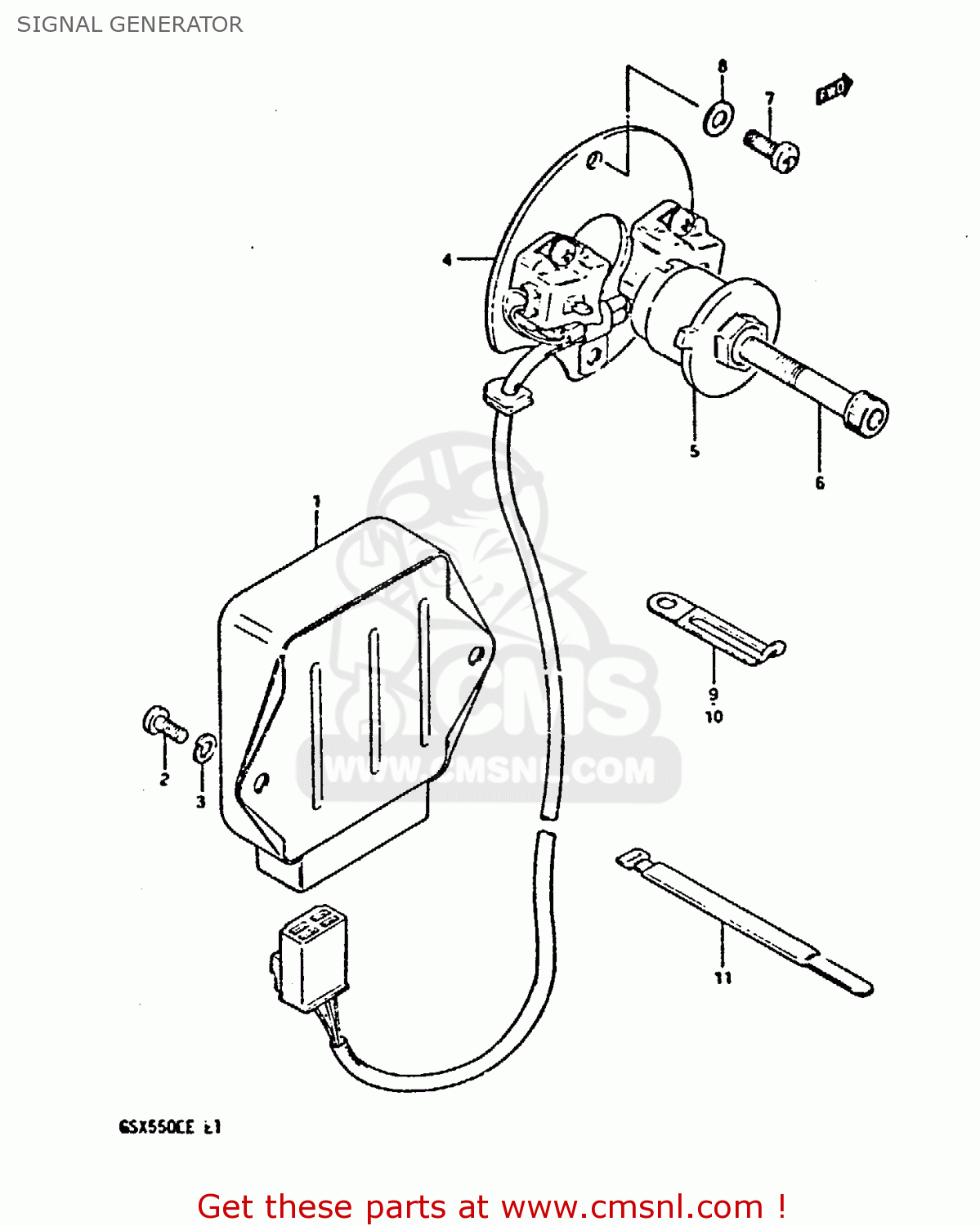

Signal generator diagram GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)

prices are in EUR

ref

part #

description

quantity

3290043400
ref: 1

IGNITER UNIT ASSEMBLY

€ 531.00

0211206128
ref: 2

SCREW 6X12

€ 2.00

0832121068
ref: 3

LOCK WASHER

€ 2.50

3311043400
ref: 4

GENERATOR ASSY,SIGNAL

€ 263.50

3312043420
ref: 5

ROTOR,SIGNAL

€ 67.00

0910608018
ref: 6

BOLT

€ 3.00

0912505024
ref: 7

SCREW(5X12)

€ 2.00

0916005027
ref: 8

WASHER

€ 2.50

0940406401
ref: 9

CLAMP L:35

€ 2.50

0940408401
ref: 10

CLAMP

€ 3.50

0940718301
ref: 11

CLAMP

€ 6.00
