COWLING (GSX550ESD)

GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)

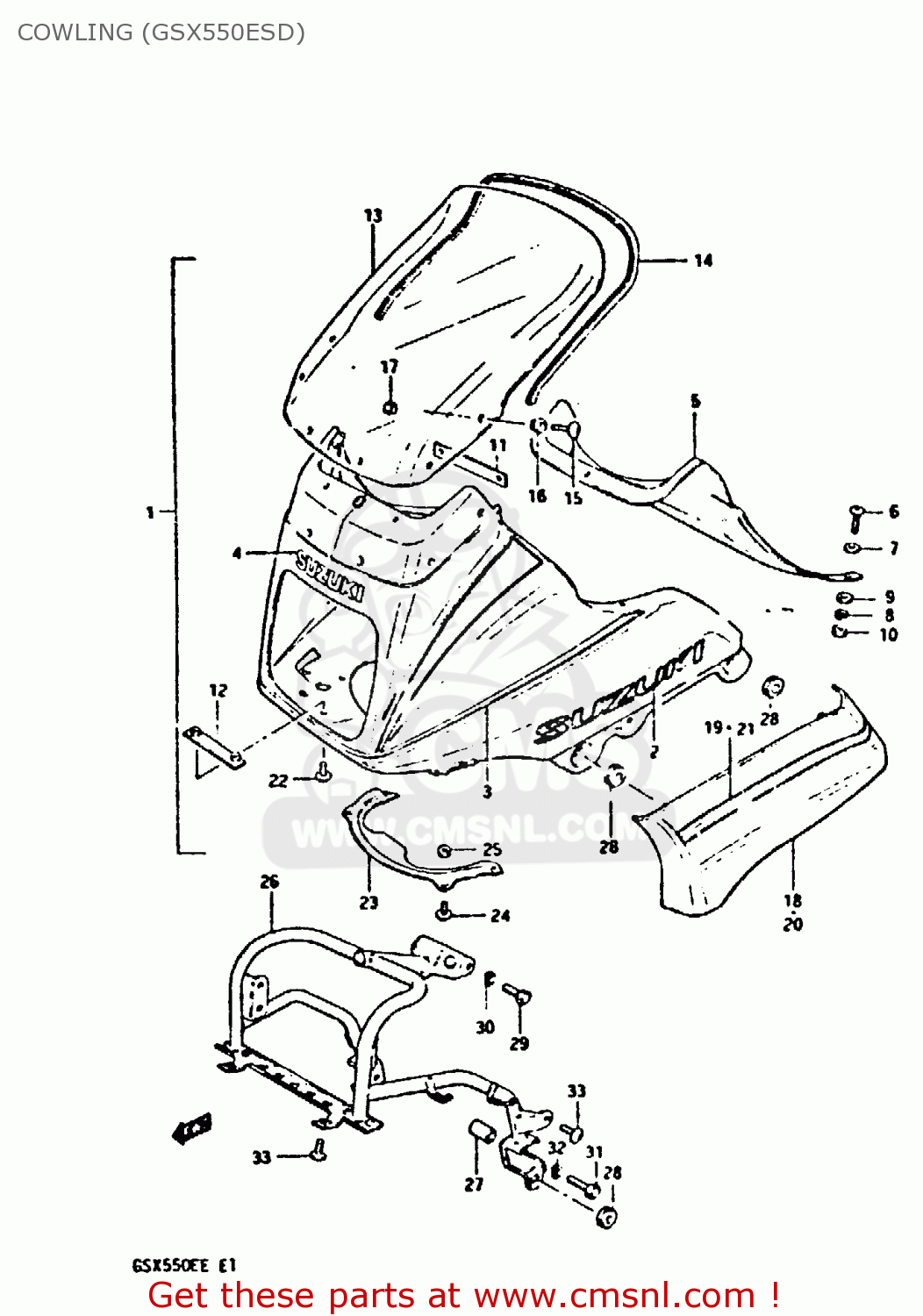

Cowling (gsx550esd) diagram GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)

COWLING (GSX550ESD) GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)
COWLING (GSX550ESD) GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)
COWLING (GSX550ESD) GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)
prices are in EUR
ref
part #
description
quantity
1-1
944004381088D
ref: 1-1
SILVER/BLUE
COWLING ASSY
€ 904.00
1-2
944004381088M
ref: 1-2
SILVER/RED
COWLING ASSY
€ 904.00
1-3
NOTUSED
ref: 1-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-4
NOTUSED
ref: 1-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-5
NOTUSED
ref: 1-5
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-6
NOTUSED
ref: 1-6
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
681113240169L
ref: 2
EMBLEM,FUEL TANK
681113240169L
€ 10.50
3-1
681904340093L
ref: 3-1
FOR 88D
TAPE SET,COWLING
€ 80.50
3-2
681904340093M
ref: 3-2
FOR 88M
TAPE SET
€ 0.00
4
6827143400064
ref: 4
EMBLEM,HEADLAMP
6827143400064
€ 4.00
5
9442243400
ref: 5
PANEL,COWLING,UPPER
€ 16.50
6
0214205165
ref: 6
SCREW
0214205165
€ 2.50
7
0832221055
ref: 7
WASHER,5MM
0832221055
€ 2.50
8
0832121055
ref: 8
WASHER,LOCK
0832121055
€ 3.00
9
0832221055
ref: 9
WASHER,5MM
0832221055
€ 2.50
10
0831012055
ref: 10
NUT ,5MM
0831012055
€ 2.50
11
9441643400
ref: 11
BRACKET,COWLING,UPPER
€ 3.50
12
9442043400
ref: 12
BRACKET,COWLING,LOWER
€ 2.50
13-1
9461143400
ref: 13-1
WINDOW,COWLING
€ 281.50
13-2
NOTUSED
ref: 13-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
14-1
9463143400
ref: 14-1
MOLDING,LOWER
9463143400
€ 18.00
14-2
NOTUSED
ref: 14-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
15
0214205167
ref: 15
SCREW
0214205167
€ 1.50
16
0932005008
ref: 16
CUSHION
0932005008
€ 5.00
17
9462943400
ref: 17
NUT
9462943400
€ 1.50
18-1
944304340088D
ref: 18-1
FOR 88D
COVER,COWLING
€ 63.50
18-2
944304340088M
ref: 18-2
FOR 88M
COVER, RH
€ 63.50
19-1
681934340093L
ref: 19-1
FOR 88D
TAPE SIDE RH
€ 9.50
19-2
681934340093M
ref: 19-2
FOR 88M
TAPE SIDE RH
€ 0.00
20-1
944404340088D
ref: 20-1
FOR 88D
COVER,COWLING
€ 25.00
20-2
944404340088M
ref: 20-2
FOR 88M
COVER, LH
€ 25.00
21-1
681944340093L
ref: 21-1
FOR 88D
TAPE SIDE LH
€ 9.00
21-2
681944340093M
ref: 21-2
FOR 88M
TAPE SIDE LH
€ 0.00
22
0214205127
ref: 22
SCREW
0214205127
€ 1.50
23
9444543400
ref: 23
COVER, LOWER
9444543400
€ 19.00
24
0214205127
ref: 24
SCREW
0214205127
€ 1.50
25
0831626058
ref: 25
NUT 5MM
€ 2.00
26
9451043400
ref: 26
BRACE,COWLING
9451043400
€ 112.50
27
0918008057
ref: 27
SPACER (8.2X12.5X23.5)
0918008057
€ 2.00
28
0932008018
ref: 28
CUSHION
0932008018
€ 4.00
29
0110708165
ref: 29
BOLT
€ 2.00
30
0832121085
ref: 30
LOCK WASHER
€ 2.50
31
0110708455
ref: 31
BOLT
€ 2.50
32
0832121085
ref: 32
LOCK WASHER
€ 2.50
33
0214206125
ref: 33
SCREW 6X12
0214206125
€ 2.00
