STARTER CLUTCH

GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)

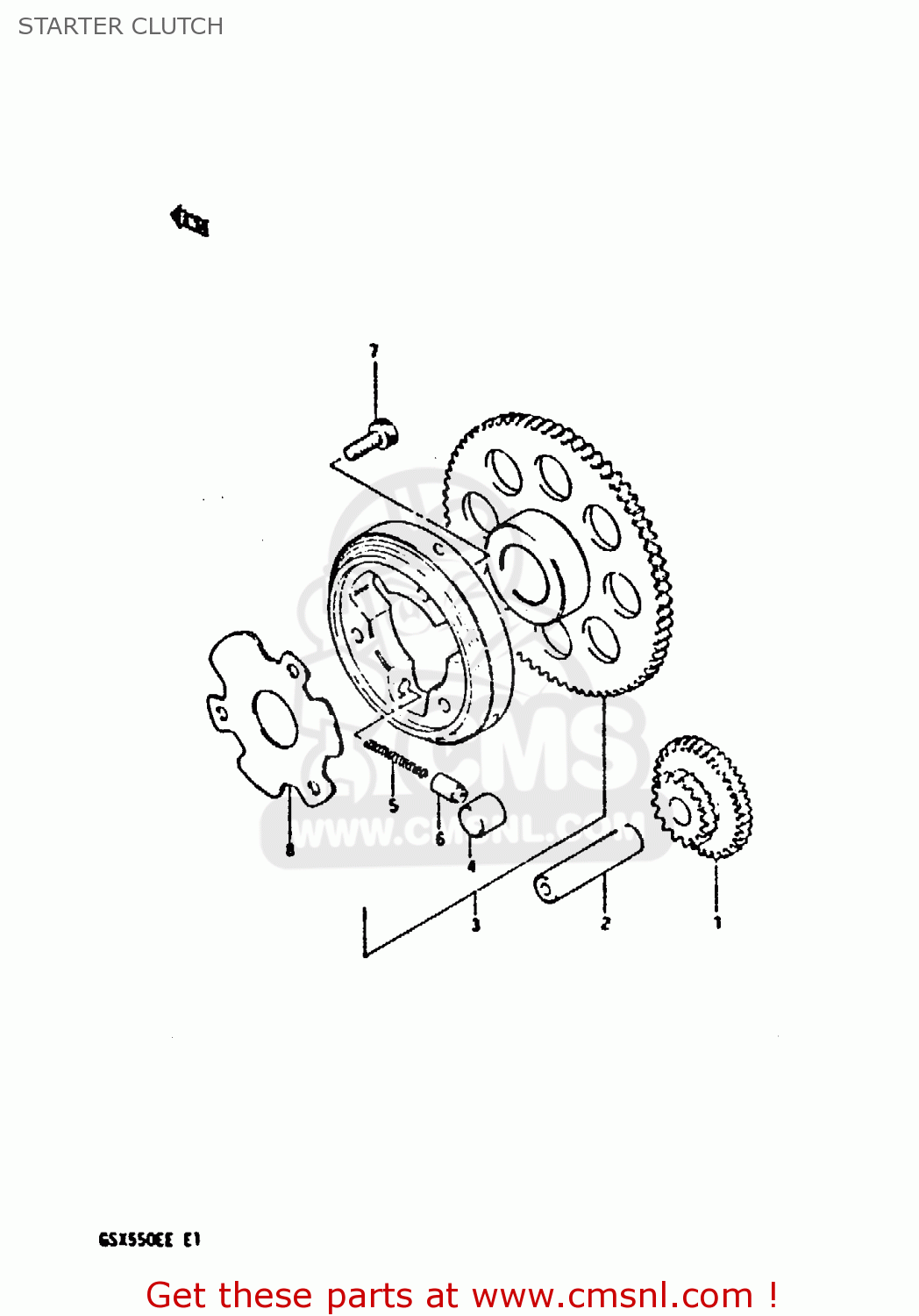

Starter clutch diagram GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)

STARTER CLUTCH GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)
STARTER CLUTCH GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)
STARTER CLUTCH GSX550EF 1984 (E) (E01 E02 E04 E16 E17 E18 21 22 24 25 26 34 39)
prices are in EUR
ref
part #
description
quantity
1
1261131301
ref: 1
GEAR,STARTER IDLE
€ 80.00
2
0920613003
ref: 2
PIN(7.4X13X56)
0920613003
€ 9.00
3
1260031850
ref: 3
CLUTCH SET,STARTER
€ 118.50
4
0926114001
ref: 4
PIN(14X13)
0926114001
€ 5.00
5
0944004015
ref: 5
SPRING
0944004015
€ 2.50
6
1263331000
ref: 6
PIECE,PUSH
1263331000
€ 9.00
7
0910608043
ref: 7
BOLT
0910608043
€ 3.00
8
1264943401
ref: 8
SHIM,STARTER CLUTCH HUB
€ 5.50
