CAM SHAFT/VALVE (MODEL N/P/R/S/T)

GSX600F 1995 (S) (E02 E22 E25 E34)

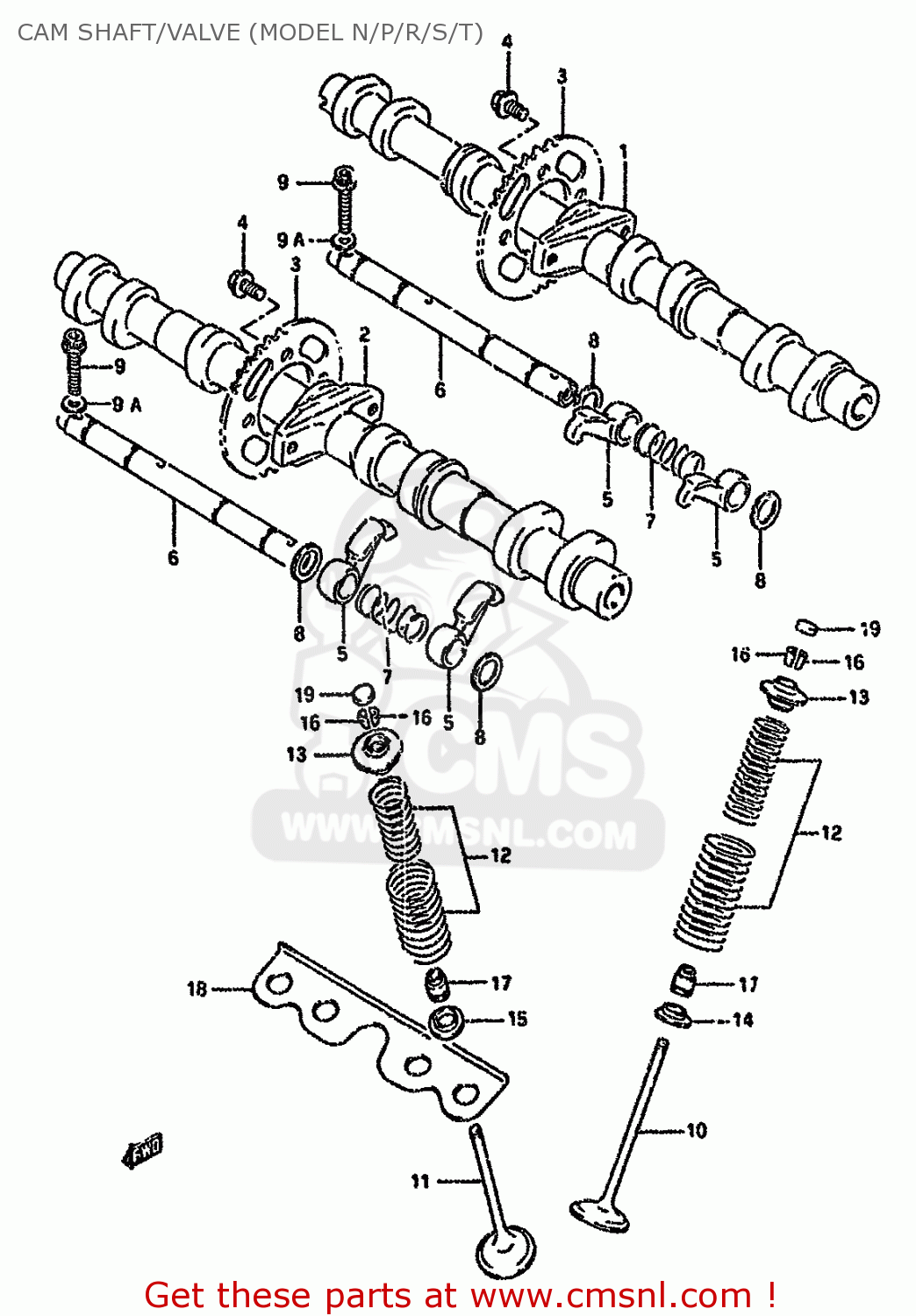

Cam shaft/valve (model n/p/r/s/t) diagram GSX600F 1995 (S) (E02 E22 E25 E34)

CAM SHAFT/VALVE (MODEL N/P/R/S/T) GSX600F 1995 (S) (E02 E22 E25 E34)
CAM SHAFT/VALVE (MODEL N/P/R/S/T) GSX600F 1995 (S) (E02 E22 E25 E34)
CAM SHAFT/VALVE (MODEL N/P/R/S/T) GSX600F 1995 (S) (E02 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
1271119E00
ref: 1-1
CAMSHAFT INTAK
€ 296.50
1-2
1271119E10
ref: 1-2
E18
CAMSHAFT,INTAKE
€ 201.50
2
1272119E00
ref: 2
CAMSHAFT,EXHAUST
€ 265.00
3-1
1274127A00
ref: 3-1
MODEL N/P/R/S
SPROCKET,CAMSHAFT
1274127A00
€ 41.00
3-2
1274126E00
ref: 3-2
MODEL T
SPROCKET,CAMSHAFT
1274126E00
€ 52.50
4
0910307001
ref: 4
BOLT(7X11)
0910307001
€ 2.00
5
1284133C02
ref: 5
ARM,VALVE ROCKER
1284133C02
€ 48.50
6
1286119E00
ref: 6
SHAFT,VALVE ROCKER ARM
1286119E00
€ 36.50
7
0944014019
ref: 7
SPRING
€ 3.00
8
0821212183
ref: 8
WASHER
€ 0.00
9-1
0712006255
ref: 9-1
MODEL N/P
BOLT
€ 2.50
9-2
0712006253
ref: 9-2
MODEL R/S/T
BOLT,OIL PAN
0712006253
€ 2.50
9A
0832201063
ref: 9A
MODEL R/S/T
WASHER
0832201063
€ 2.00
10
1291119E00
ref: 10
VALVE,INTAKE
1291119E00
€ 23.50
11
1291219E00
ref: 11
VALVE,EXHAUST
1291219E00
€ 34.50
12
1292041C00
ref: 12
SPRING SET,VALVE
1292041C00
€ 12.50
13
1293141C01
ref: 13
RETAINER,VALVE SPRING
1293141C01
€ 8.50
14
1293381400
ref: 14
SEAT,VALVE SPRING
1293381400
€ 4.00
15-1
1293427A00
ref: 15-1
MODEL N
SEAT,VALVE SPRING
1293427A00
€ 7.00
15-2
1293427A01
ref: 15-2
MODEL P/R/S/T
SEAT,VALVE SPRING EXH INNER
1293427A01
€ 7.00
16
1293227A00
ref: 16
COTTER VALVE
1293227A00
€ 2.50
17
0928905011
ref: 17
SEAL,OIL(5X10X9.7)
0928905011
€ 6.00
18-1
1113719C00
ref: 18-1
MODEL N/P
PLATE,VALVE SEAT
€ 7.00
18-2
1113719C01
ref: 18-2
MODEL R/S/T
PLATE,VALVE SEAT
€ 7.00
19-1
1289241C00230
ref: 19-1
SHIM,TAPPET(T:2.3)
1289241C00230
€ 7.50
19-2
1289241C00235
ref: 19-2
SHIM,TAPPET(T:2.35)
1289241C00235
€ 7.00
19-3
1289241C00240
ref: 19-3
SHIM,TAPPET(T:2.4)
€ 7.00
19-4
1289241C00245
ref: 19-4
SHIM,TAPPET(T:2.45)
1289241C00245
€ 7.00
19-5
1289241C00250
ref: 19-5
SHIM,TAPPET(T:2.5)
1289241C00250
€ 7.00
19-6
1289241C00255
ref: 19-6
SHIM,TAPPET(T:2.55)
1289241C00255
€ 7.50
19-7
1289241C00260
ref: 19-7
SHIM,TAPPET(T:2.6)
1289241C00260
€ 8.00
19-8
1289241C00265
ref: 19-8
SHIM,TAPPET(T:2.65)
1289241C00265
€ 7.00
19-9
1289241C00270
ref: 19-9
SHIM,TAPPET(T:2.7)
1289241C00270
€ 8.00
19-10
1289241C00275
ref: 19-10
SHIM,TAPPET(T:2.75)
1289241C00275
€ 7.50
19-11
1289241C00280
ref: 19-11
SHIM,TAPPET(T:2.8)
1289241C00280
€ 7.50
19-12
1289241C00285
ref: 19-12
SHIM,TAPPET(T:2.85)
1289241C00285
€ 7.50
19-13
1289241C00290
ref: 19-13
SHIM,TAPPET(T:2.9)
1289241C00290
€ 7.50
19-14
1289241C00295
ref: 19-14
SHIM,TAPPET(T:2.95)
1289241C00295
€ 7.00
19-15
1289241C00300
ref: 19-15
SHIM,TAPPET(T:3.0)
1289241C00300
€ 7.00
19-16
1289241C00305
ref: 19-16
SHIM,TAPPET(T:3.05)
1289241C00305
€ 7.50
19-17
1289241C00310
ref: 19-17
SHIM,TAPPET(T:3.1)
1289241C00310
€ 7.50
19-18
1289241C00315
ref: 19-18
SHIM,TAPPET(T:3.15)
1289241C00315
€ 7.50
19-19
1289241C00320
ref: 19-19
SHIM,TAPPET(T:3.2)
1289241C00320
€ 7.50
19-20
1289241C00325
ref: 19-20
SHIM,TAPPET(T:3.25)
1289241C00325
€ 7.00
19-21
1289241C00330
ref: 19-21
SHIM,TAPPET(T:3.3)
1289241C00330
€ 7.00
19-22
1289241C00335
ref: 19-22
SHIM,TAPPET(T:3.35)
1289241C00335
€ 7.00
19-23
1289241C00340
ref: 19-23
SHIM,TAPPET(T:3.4)
1289241C00340
€ 7.00
19-24
1289241C00345
ref: 19-24
SHIM,TAPPET(T:3.45)
€ 7.00
19-25
1289241C00350
ref: 19-25
SHIM,TAPPET(T:3.5)
1289241C00350
€ 7.00
20
1280041810
ref: 20
OPT NOT SHOWN
SHIM SET,TAPPET
€ 793.00
21
9900069471
ref: 21
CASE,TAPPET SHIM
9900069471
€ 103.50
