TAIL LAMP (MODEL P/R/S/T)

GSX600F 1995 (S) (E02 E22 E25 E34)

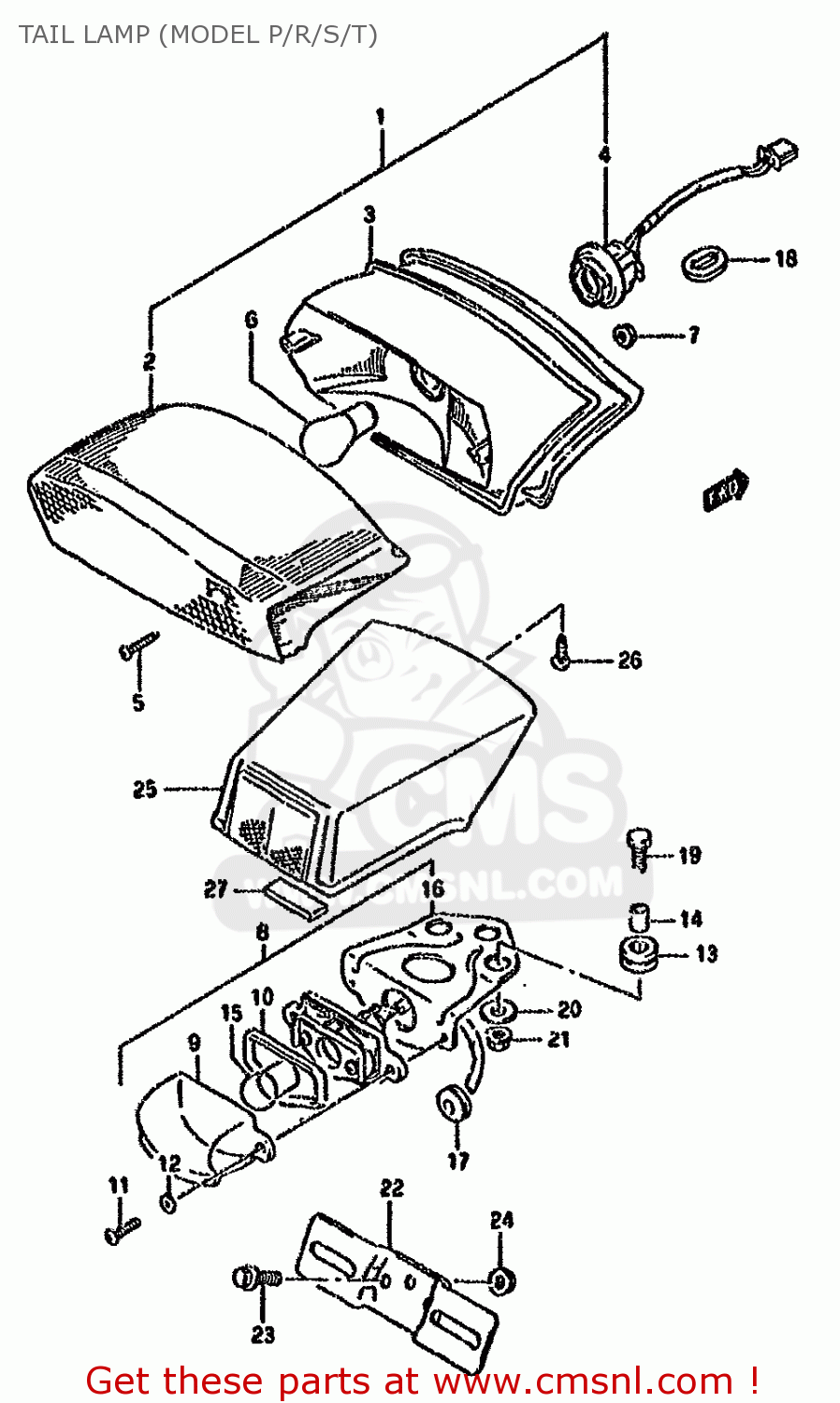

Tail lamp (model p/r/s/t) diagram GSX600F 1995 (S) (E02 E22 E25 E34)

TAIL LAMP (MODEL P/R/S/T) GSX600F 1995 (S) (E02 E22 E25 E34)
TAIL LAMP (MODEL P/R/S/T) GSX600F 1995 (S) (E02 E22 E25 E34)
TAIL LAMP (MODEL P/R/S/T) GSX600F 1995 (S) (E02 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
3571019C50
ref: 1
LAMP ASSY,RR COMBINATION
€ 141.50
2
3571219C00
ref: 2
LENS
3571219C00
€ 57.50
3
3571319C00
ref: 3
GASKET (NAS)
3571319C00
€ 7.00
4
3571819C00
ref: 4
SOCKET
3571819C00
€ 33.00
5
0321104203
ref: 5
SCREW
€ 1.50
6
0947112083
ref: 6
BULB(12V21/5W)
0947112083
€ 6.00
7
0831620063
ref: 7
NUT
0831620063
€ 2.00
8
3591019C10
ref: 8
LAMP ASSY,LICENSE
3591019C10
€ 83.50
9
3591200A21
ref: 9
LENS,LICENSE LAMP
3591200A21
€ 24.00
10
3591304A00
ref: 10
GASKET,LICESE LAMP (NAS)
3591304A00
€ 4.00
11-1
0211204167
ref: 11-1
MODEL P
SCREW
0211204167
€ 1.00
11-2
0211204163
ref: 11-2
MODEL R/S/T
SCREW 4X16
0211204163
€ 1.00
12
0832201047
ref: 12
WASHER
0832201047
€ 2.00
13
3576535300
ref: 13
CUSHION,RR COMBINATION
3576535300
€ 3.00
14
3576619C00
ref: 14
SPACER
3576619C00
€ 2.00
15
0947112140
ref: 15
BULB(12V5W,BF150-40160A)
€ 4.00
16
3591619C00
ref: 16
BRACKET
3591619C00
€ 13.00
17
0930807009
ref: 17
GROMMET
€ 2.00
18
0930812007
ref: 18
GROMMET
€ 3.50
19
0911606115
ref: 19
-09116-06056
BOLT(6X20)
0911606115
€ 2.00
20-1
0916006060
ref: 20-1
MODEL P/R
WASHER
0916006060
€ 2.00
20-2
0916006077
ref: 20-2
MODEL S/T
WASHER(6.5X20X1.2)
0916006077
€ 2.00
21
0831620063
ref: 21
NUT
0831620063
€ 2.00
22
3592700A10
ref: 22
BRACKET,LICENSE PLATE
3592700A10
€ 6.00
23-1
0912506055
ref: 23-1
MODEL P
SCREW(6X25)
0912506055
€ 3.00
23-2
0214206253
ref: 23-2
MODEL R/S
SCREW
0214206253
€ 1.50
23-3
0214206203
ref: 23-3
MODEL T
SCREW
0214206203
€ 2.00
24
0831000063
ref: 24
NUT 6MM
0831000063
€ 2.00
25
3591719C00
ref: 25
COVER,LICENSE LAMP
3591719C00
€ 26.00
26
0354105163
ref: 26
SCREW
0354105163
€ 1.50
27
3599505C00
ref: 27
PROTECTOR,LICENSE LAMP
3599505C00
€ 2.00
23
0916006060
ref: 23
WASHER
0916006060
€ 2.00
24
0831620063
ref: 24
NUT
0831620063
€ 2.00
25
3592700A10
ref: 25
BRACKET,LICENSE PLATE
3592700A10
€ 6.00
26
0151706254
ref: 26
BOLT
€ 2.50
27
0831620063
ref: 27
NUT
0831620063
€ 2.00
28
3595043431
ref: 28
E39,E77
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.00
29-1
3597519C00
ref: 29-1
MODEL J/K E39,MODEL
BRACKET
€ 3.00
29-2
3597520C01
ref: 29-2
MODEL L/M E39-35975-
BRACKET,RR SIDE RR,R
3597520C01
€ 3.00
30-1
3597619C00
ref: 30-1
MODEL J/K E39,MODEL
BRACKET
€ 3.00
30-2
3597620C01
ref: 30-2
MODEL L/M E39-35976-
BRACKET,RR SIDE RR,L
3597620C01
€ 3.00
31
0214205123
ref: 31
SCREW 5X12
0214205123
€ 1.50
32
0831620053
ref: 32
NUT
0831620053
€ 2.00
33
3591719C00
ref: 33
COVER,LICENSE LAMP
3591719C00
€ 26.00
34
0354105163
ref: 34
SCREW
0354105163
€ 1.50
35
3599505C00
ref: 35
PROTECTOR,LICENSE LAMP
3599505C00
€ 2.00
