OIL PAN
GSX600F 1995 (S) (E02 E22 E25 E34)

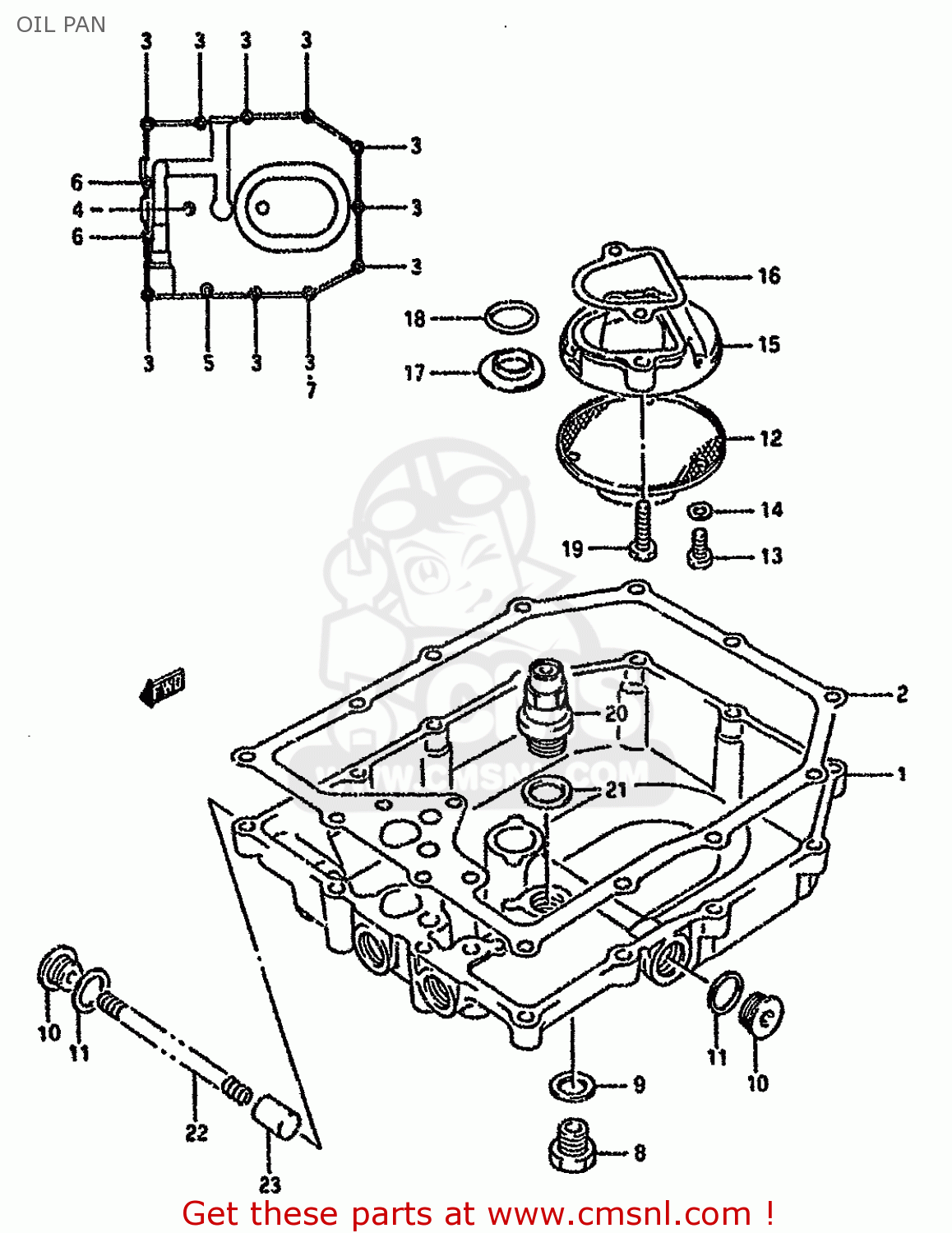

Oil pan diagram GSX600F 1995 (S) (E02 E22 E25 E34)
OIL PAN GSX600F 1995 (S) (E02 E22 E25 E34)
×
prices are in EUR
ref
part #
description
quantity
1
1151119C00
ref: 1
PAN,OIL
€ 133.50
2-1
1148927A10
ref: 2-1
MODEL J/K/L/M/N
GASKET,OIL PAN (NAS)
€ 23.00
2-2
1148927A20
ref: 2-2
MODEL P/R/S/T
GASKET,OIL PAN (NAS)
€ 23.00
3-1
0711006255
ref: 3-1
MODEL J/K/L/M/N
BOLT
€ 3.00
3-2
0713006258
ref: 3-2
MODEL P
BOLT
€ 2.50
3-3
0713006253
ref: 3-3
MODEL R/S/T
BOLT,CL.COVER
€ 3.00
4-1
0711006355
ref: 4-1
MODEL J/K/L/M/N
BOLT
€ 3.50
4-2
0713006358
ref: 4-2
MODEL P
BOLT
€ 3.50
4-3
0713006353
ref: 4-3
MODEL R/S/T
BOLT
€ 3.50
5-1
0711006405
ref: 5-1
MODEL J/K/L/M/N
BOLT
€ 3.50
5-2
0713006408
ref: 5-2
MODEL P
BOLT
€ 2.50
5-3
0713006403
ref: 5-3
MODEL R/S/T
BOLT
€ 3.50
6-1
0711006455
ref: 6-1
MODEL J/K/L/M/N
BOLT
€ 2.50
6-2
0713006458
ref: 6-2
MODEL P
BOLT
€ 2.50
6-3
0713006453
ref: 6-3
MODEL R/S/T
BOLT
€ 2.50
7
0916806024
ref: 7
GASKET(5.8X11X1.2) (NAS)
€ 2.00
8
0924714001
ref: 8
PLUG
€ 5.00
9
0916814002
ref: 9
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
10
0924816010
ref: 10
PLUG
€ 4.50
11
0916816002
ref: 11
GASKET(16X22X2) (NAS)
€ 2.00
12
1652006B01
ref: 12
STRAINER,ENGINE OIL
€ 12.50
13-1
0110706127
ref: 13-1
MODEL J/K/L/M/N/P
BOLT
€ 2.00
13-2
0157006123
ref: 13-2
MODEL R/S/T
BOLT
€ 1.50
14
0832121067
ref: 14
MODEL J/K/L/M/N/P
WASHER,LOCK
€ 2.50
15
1652548B01
ref: 15
PROTECTOR,OIL STRAINER
€ 18.00
16-1
1652827A10
ref: 16-1
MODEL J/K/L/M/N
O-RING
€ 9.00
16-2
1652827A20
ref: 16-2
MODEL P/R/S/T
GASKET,OIL STRAINER PROTECTOR (NAS)
€ 9.00
17
1652927A01
ref: 17
GASKET,OIL OUTLET (NAS)
€ 2.00
18
0928018009
ref: 18
O RING(D:3.2,ID:17.8)
€ 8.00
19-1
0151706257
ref: 19-1
MODEL J/K/L/M/N/P
BOLT 6X25
€ 2.50
19-2
0155006253
ref: 19-2
MODEL R/S/T
BOLT
€ 2.50
20
1644027A01
ref: 20
VALVE ASSY,OIL RELIEF
€ 42.00
21
0916816002
ref: 21
GASKET(16X22X2) (NAS)
€ 2.00
22
0944009023
ref: 22
SPRING
€ 3.00
23
1644234301
ref: 23
PLUNGER,OIL CONTROLL
€ 16.00
