CYLINDER HEAD
GSX600F 1995 (S) (E02 E22 E25 E34)

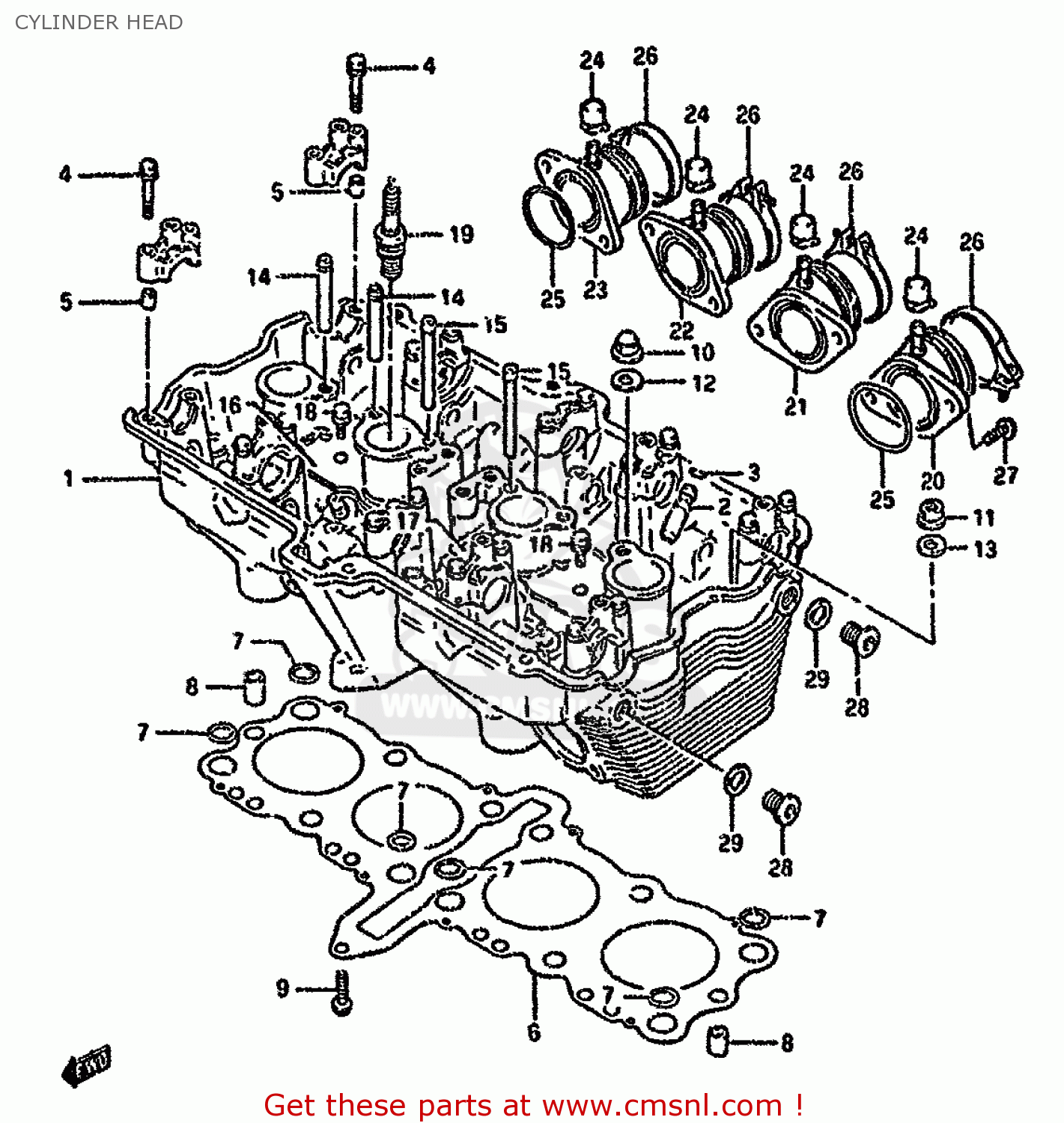

Cylinder head diagram GSX600F 1995 (S) (E02 E22 E25 E34)
CYLINDER HEAD GSX600F 1995 (S) (E02 E22 E25 E34)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110019C01
ref: 1-1
MODEL J
HEAD ASSEMBLY,CYLINDER
€ 1,261.50
1-2
1110043C00
ref: 1-2
MODEL K/L/M
HEAD ASSEMBLY,CYLINDER
€ 1,354.00
1-3
1110019E00
ref: 1-3
MODEL N/P/R/S
HEAD ASSEMBLY,CYLINDER
€ 1,352.00
1-4
1110019E20
ref: 1-4
MODEL T
HEAD ASSEMBLY,CYLINDER
€ 1,356.50
1-5
1110043C10
ref: 1-5
MODEL K/L/M E18
HEAD ASSEMBLY,CYLINDER
€ 824.00
1-6
1110019E10
ref: 1-6
MODEL N E18
HEAD ASSEMBLY,CYLINDER
€ 1,515.50
2-1
1111527A70
ref: 2-1
MODEL J/K/L/M
GUIDE,VALVE
€ 43.00
2-2
1111618D70
ref: 2-2
MODEL N/P/R/S/T
GUIDE,VALVE
€ 19.00
3
0938110004
ref: 3
RING,SNAP
€ 1.50
4
0910306026
ref: 4
BOLT(6X39)
€ 2.00
5
0920608001
ref: 5
PIN(6.2X8X11)
€ 2.00
6
1114119C03
ref: 6
GASKET,CYLINDER HEAD (NAS)
€ 63.00
7
0928012013
ref: 7
O RING(D:2.6,ID:12.1)
€ 7.50
8
0421111189
ref: 8
PIN
€ 2.00
9-1
0151706305
ref: 9-1
MODEL J/K/L/M/N/P
BOLT 6X30
€ 2.50
9-2
0155006303
ref: 9-2
MODEL R/S/T
BOLT
€ 2.50
10
0915910054
ref: 10
NUT
€ 7.50
11
0831610103
ref: 11
NUT
€ 2.00
12
0916810031
ref: 12
GASKET(10.2X20X2).3 (NAS)
€ 2.00
13
0916010060
ref: 13
WASHER (10.5X22X2.3)
€ 2.50
14
1113127A00
ref: 14
PIPE,OIL NO.1
€ 6.00
15
1113327A00
ref: 15
PIPE,OIL NO.3
€ 7.00
16
1113527A02
ref: 16
PLATE,OIL PIPE,R
€ 4.00
17
1113627A02
ref: 17
PLATE,OIL PIPE,L
€ 4.00
18-1
0151706128
ref: 18-1
MODEL J/K/L/M/N/P
BOLT
€ 2.50
18-2
0155006123
ref: 18-2
MODEL R/S/T
BOLT
€ 2.50
19-1
0948200221
ref: 19-1
MODEL J/K/L/M/N/P/R/
PLUG,SPARK(DR8ES)
€ 5.50
19-2
0948200410
ref: 19-2
MODEL T
PLUG,SPARK(CR9EK)
€ 10.50
19-3
0948200411
ref: 19-3
MODEL T
PLUG,SPARK(U27ETR)
€ 8.50
19-4
0948200412
ref: 19-4
OPT MODEL T
PLUG,SPARK(CR8EK)
€ 11.00
19-5
0948200413
ref: 19-5
OPT MODEL T
PLUG,SPARK(U24ETR)
€ 11.00
19-6
0948200462
ref: 19-6
OPT MODEL T
PLUG,SPARK(CR10EK)
€ 10.50
19-7
0948200463
ref: 19-7
OPT MODEL T
PLUG,SPARK(U31ETR)
€ 10.50
20-1
1310119C00
ref: 20-1
MODEL J/K GSX600FUL/
PIPE,INTAKE NO.1
€ 39.50
20-2
1310119C12
ref: 20-2
MODEL L/M/N/P/R/S/T
PIPE ASSY,INTAKE NO.1
€ 39.50
21-1
1310219C00
ref: 21-1
MODEL J/K GSX600FUL/
PIPE,INTAKE NO.2
€ 37.50
21-2
1310219C12
ref: 21-2
MODEL L/M/N/P/R/S/T
PIPE ASSY,INTAKE NO.2
€ 37.50
22-1
1310319C00
ref: 22-1
MODEL J/K GSX600FUL/
PIPE,INTAKE NO.3
€ 37.50
22-2
1310319C12
ref: 22-2
MODEL L/M/N/P/R/S/T
PIPE ASSY,INTAKE NO.3
€ 37.50
23-1
1310419C00
ref: 23-1
MODEL J/K GSX600FUL/
PIPE,INTAKE NO.4
€ 37.00
23-2
1310419C12
ref: 23-2
MODEL L/M/N/P/R/S/T
PIPE ASSY,INTAKE NO.4
€ 37.00
24
1315019C00
ref: 24
MODEL J/K GSX600FUL/
CAP
€ 5.50
25
0928040010
ref: 25
O RING(D:2.4,ID:39.7)
€ 3.50
26-1
0940250208
ref: 26-1
MODEL J/K GSX600FUL/
CLAMP
€ 5.00
26-2
0940252208
ref: 26-2
MODEL L/M/N/P/R/S/T
CLAMP
€ 5.50
27-1
0215206165
ref: 27-1
MODEL J/K/L/M/N/P
SCREW
€ 2.00
27-2
0211216163
ref: 27-2
MODEL R/S/T
SCREW
€ 2.00
28
0924814010
ref: 28
-09248-14004
PLUG
€ 5.00
29
0916814002
ref: 29
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
