FOOTREST
GSX600F 1995 (S) (E02 E22 E25 E34)

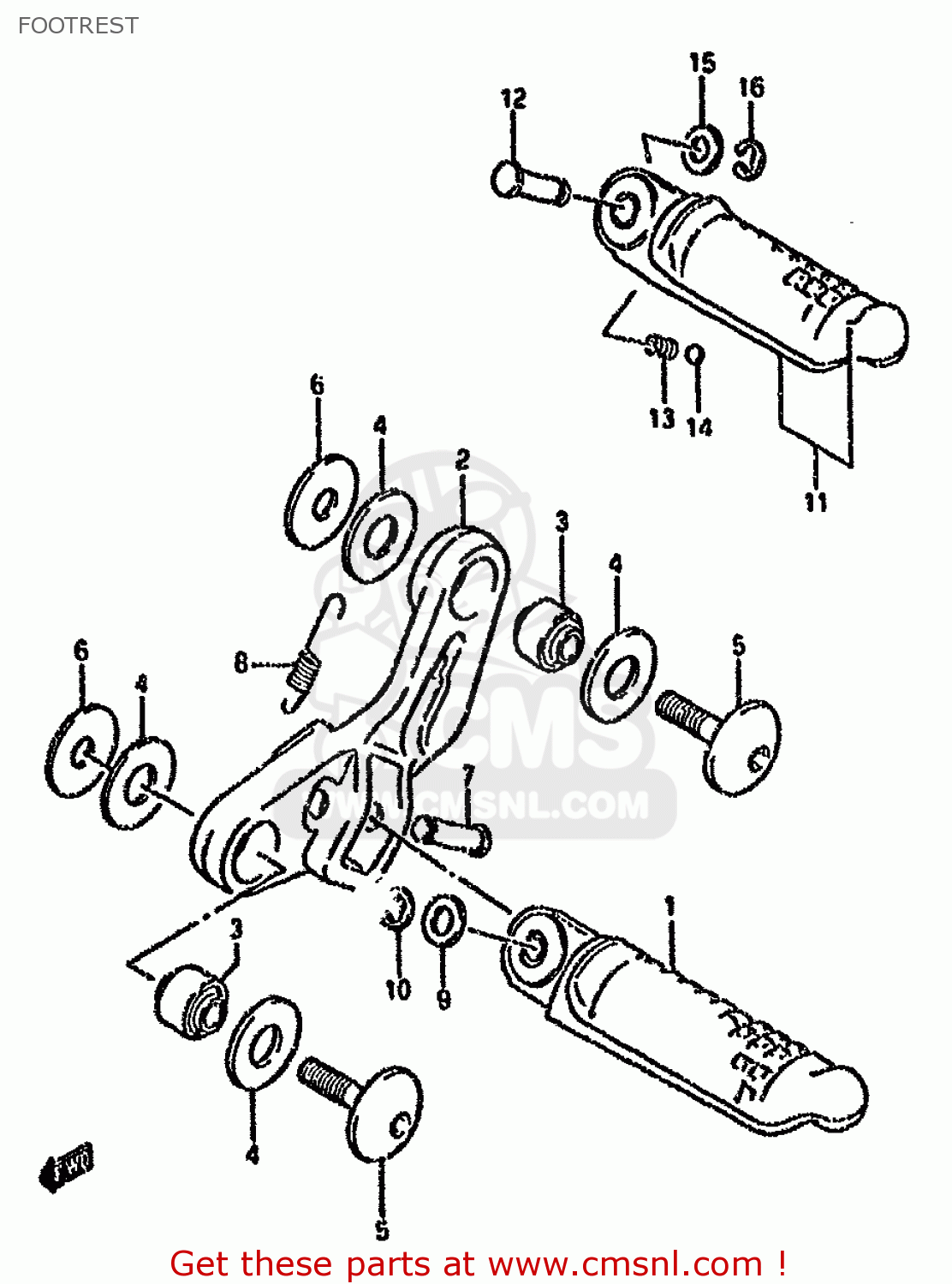

Footrest diagram GSX600F 1995 (S) (E02 E22 E25 E34)
FOOTREST GSX600F 1995 (S) (E02 E22 E25 E34)
×
prices are in EUR
ref
part #
description
quantity
1-1
4351019C00
ref: 1-1
MODEL J
BAR,FRONT FOOTREST
€ 64.50
1-2
4351019C01
ref: 1-2
MODEL K/L/M/N/P/R/S/
BAR,FRONT FOOTREST,RIGHT
€ 64.50
1-3
4352019C00
ref: 1-3
MODEL J
BAR,FRONT FOOTREST,LEFT
€ 72.50
1-4
4352019C01
ref: 1-4
MODEL K/L/M/N/P/R/S/
BAR,FRONT FOOTREST,LEFT
€ 72.50
2-1
4353119C00
ref: 2-1
HOLDER,FR FOOTREST,R
€ 43.50
2-2
4354119C00
ref: 2-2
HOLDER,FR FOOTREST,L
€ 64.00
3
0931908033
ref: 3
BUSH(8.4X20X18)
€ 7.00
4
0916112006
ref: 4
WASHER(12.5X30X2)
€ 6.50
5
0910608079
ref: 5
BOLT(8X31)
€ 9.50
6-1
0916008104
ref: 6-1
MODEL J/K/L/M/N/P/R
WASHER (8.5X30X2.3)
€ 2.00
6-2
0916008503
ref: 6-2
MODEL S/T
WASHER(8.5X30X2.3)
€ 2.00
7
0920808010
ref: 7
PIN(8X33.2)
€ 3.00
8
0944308049
ref: 8
SPRING
€ 5.50
9-1
0832211084
ref: 9-1
MODEL J/K/L/M/N/P
WASHER
€ 1.50
9-2
0832201083
ref: 9-2
MODEL R/S/T
WASHER
€ 1.50
10
0833211063
ref: 10
E.RING
€ 2.00
11-1
4361019C00
ref: 11-1
MODEL J/K/L/M/N/P/R/
BAR,PILLION FOOTREST,R
€ 65.50
11-2
4361020C00
ref: 11-2
MODEL T
BAR,PILLION FOOTREST,RIGHT
€ 52.50
11-3
4371019C00
ref: 11-3
MODEL J/K/L/M/N/P/R/
BAR,PILLION FOOTREST,L
€ 58.00
11-4
4371020C00
ref: 11-4
MODEL T
BAR,PILLION FOOTREST,LEFT
€ 52.50
12
0920808011
ref: 12
PIN
€ 3.00
13
0944005005
ref: 13
SPRING
€ 1.50
14
0611107004
ref: 14
BALL
€ 1.50
15-1
0832211084
ref: 15-1
MODEL J/K/L/M/N/P
WASHER
€ 1.50
15-2
0832201083
ref: 15-2
MODEL R/S
WASHER
€ 1.50
16
0833211063
ref: 16
E.RING
€ 2.00
