CYLINDER
GSX600F 1995 (S) (E02 E22 E25 E34)

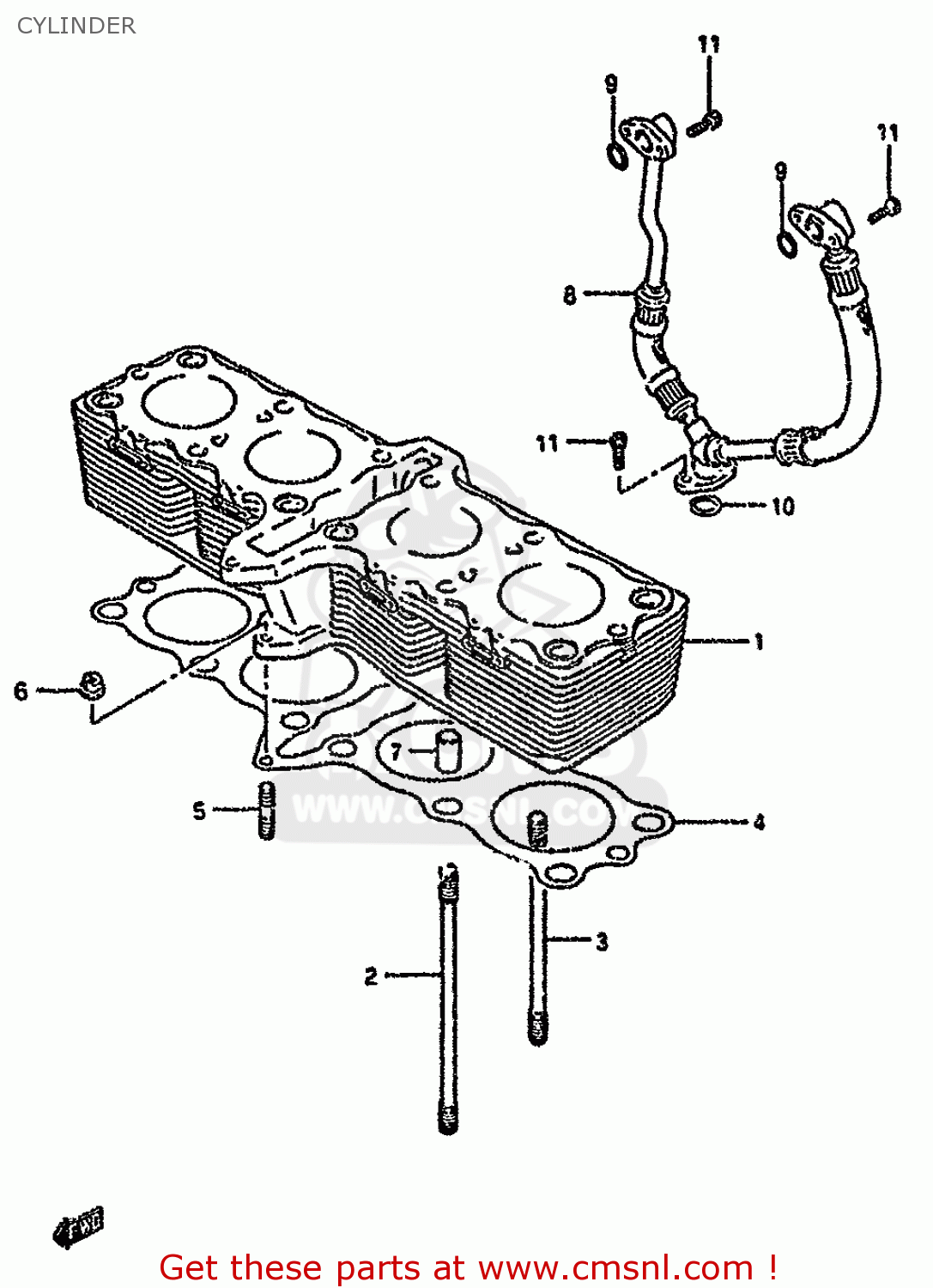

Cylinder diagram GSX600F 1995 (S) (E02 E22 E25 E34)
CYLINDER GSX600F 1995 (S) (E02 E22 E25 E34)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121019C01
ref: 1-1
MODEL J
CYLINDER
€ 861.00
1-2
1121043C00
ref: 1-2
MODEL K/L/M/N/P/R/S/
CYLINDER COMP
€ 861.00
1-3
1121043C10
ref: 1-3
MODEL K/L/M/N E18
CYLINDER COMP
€ 969.50
2
0910810109
ref: 2
STUD BOLT (L:150)
€ 11.00
3
0910810073
ref: 3
BOLT,STUD
€ 9.50
4
1124127A03
ref: 4
GASKET,CYLINDER (NAS)
€ 20.00
5-1
0142106205
ref: 5-1
MODEL J/K/L/M/N/P
STUD BOLT L:20
€ 2.50
5-2
0142106203
ref: 5-2
MODEL R/S/T
STUD,M6X1X32
€ 2.50
6-1
0831616064
ref: 6-1
MODEL J/K/L/M/N/P
NUT 6MM
€ 2.50
6-2
0831610063
ref: 6-2
MODEL R/S/T
NUT
€ 2.50
7-1
0920613006
ref: 7-1
MODEL J/K/L/M/N/P/R/
PIN
€ 9.00
7-2
0920613017
ref: 7-2
MODEL T
PIN(13X10.4X20)
€ 9.00
8
1132827A04
ref: 8
HOSE,OIL HEAD COOLER
€ 241.00
9
0928014011
ref: 9
O RING(D:2.5,ID:13.8)
€ 3.50
10
0928015007
ref: 10
O RING(D:2.4,ID:15.8)
€ 2.00
11-1
0711006165
ref: 11-1
MODEL J/K/L/M/N/P
BOLT
€ 3.00
11-2
0713006163
ref: 11-2
MODEL R/S/T
BOLT,OIL FILLE
€ 3.00
