STARTING MOTOR
GSX600F 1995 (S) (E02 E22 E25 E34)

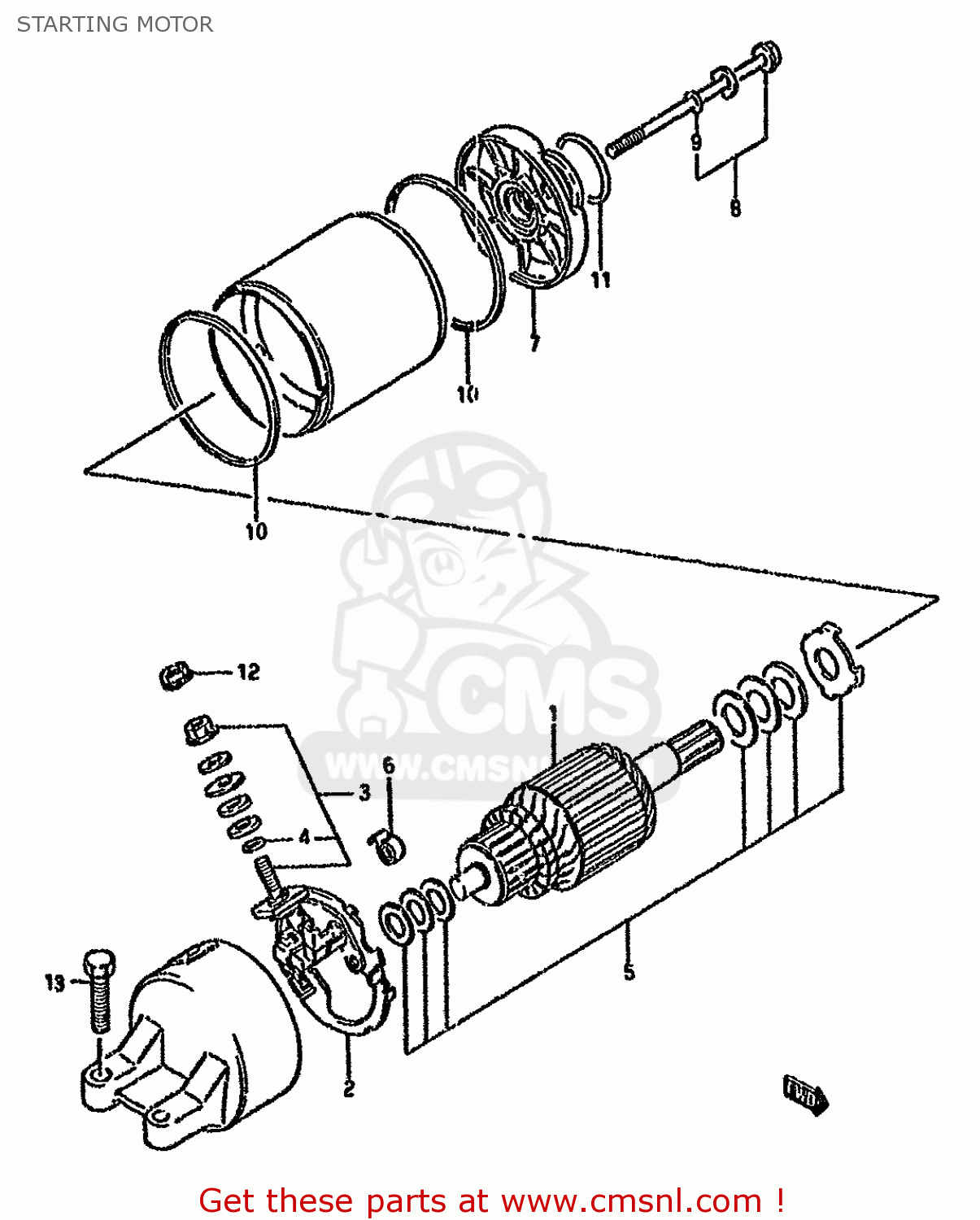

Starting motor diagram GSX600F 1995 (S) (E02 E22 E25 E34)
STARTING MOTOR GSX600F 1995 (S) (E02 E22 E25 E34)
×
prices are in EUR
ref
part #
description
quantity
0
3110019C00
ref: 0
MODEL J/K/L
MOTOR ASSEMBLY,STARTING
€ 700.00
0
3110019C01
ref: 0
E17,E18,MODEL M/N/P/
MOTOR ASSEMBLY,STARTING
€ 700.00
0
3110019C02
ref: 0
MODEL S/T
MOTOR ASSEMBLY,STARTING
€ 700.00
1-1
3131119C00
ref: 1-1
MODEL J/K/L-31311-19
ARMATURE
€ 128.00
1-2
3131119C01
ref: 1-2
E17,E18,MODEL M
ARMATURE
€ 128.00
1-3
3131119C02
ref: 1-3
MODEL N/P/S/T
ARMATURE
€ 128.00
2
3113219B10
ref: 2
HOLDER SET,BRUSH
€ 29.00
3
3113019B10
ref: 3
TERMINAL SET,BRUSH,PLUS
€ 27.50
4
3114349040
ref: 4
O RING
€ 3.00
5
3117019B10
ref: 5
SHIM SET,STARTING MOTOR
€ 8.00
6
3113531300
ref: 6
SPRING,BRUSH
€ 4.00
7
3115019B10
ref: 7
BRACKET ASSY,FR
€ 107.00
8
3128019B10
ref: 8
BOLT SET,STARTING MOTOR
€ 8.50
9
3114349040
ref: 9
O RING
€ 3.00
10
3126431300
ref: 10
O RING
€ 7.50
11
0928024003
ref: 11
O RING(D:3,ID:24.5)
€ 2.00
12
0836135066
ref: 12
NUT
€ 2.00
13
0912806024
ref: 13
SCREW (6X25)
€ 2.50
