ELECTRICAL

GSX750 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

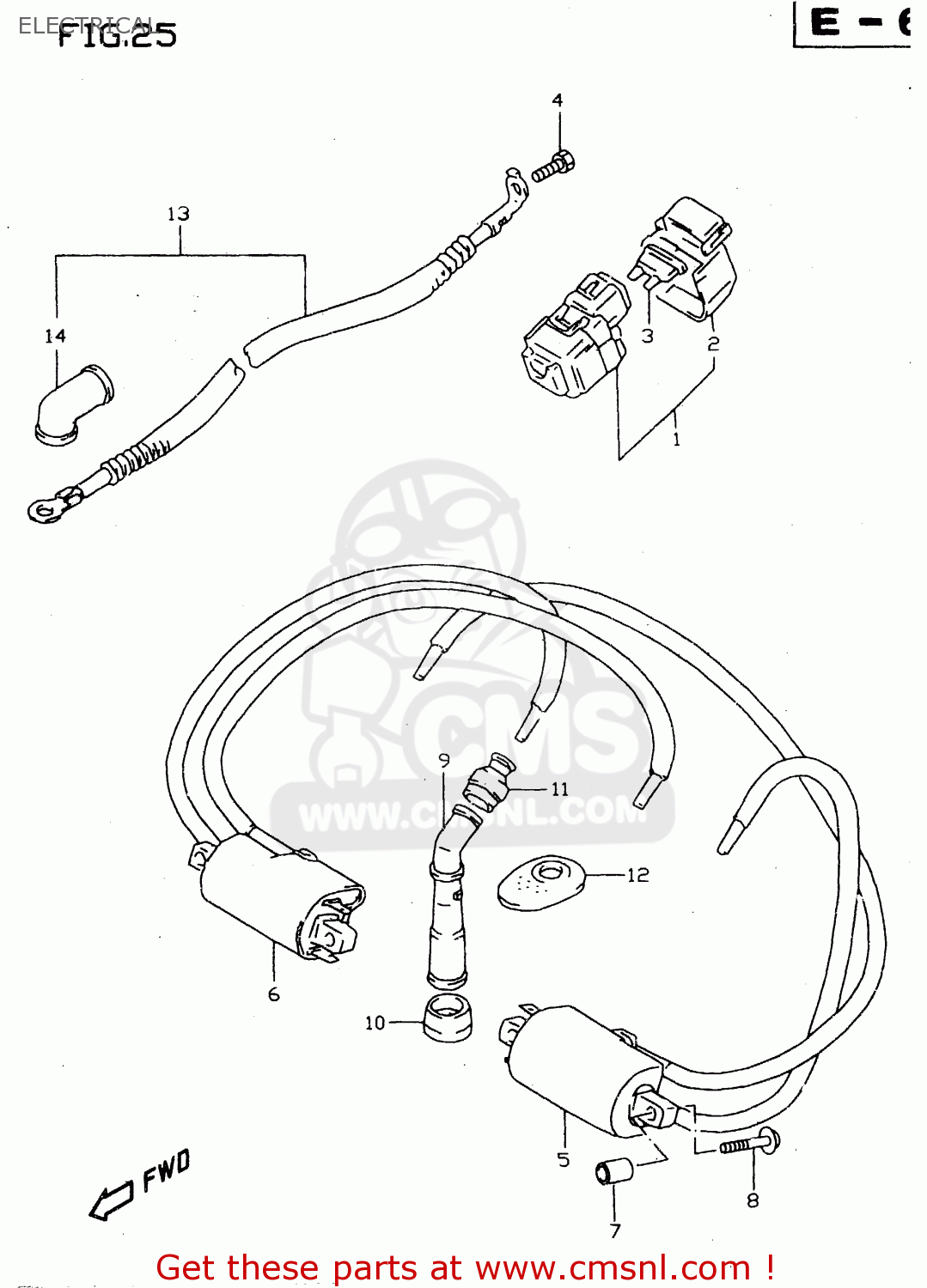

Electrical diagram GSX750 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

3180021E20
ref: 1

RELAY ASSY,STARTING MOTOR

€ 69.00

3186121E20
ref: 2

COVER,RELAY ASSEMBLY

€ 10.50

0948130101
ref: 3

FUSE(30A)

€ 6.00

0912806013
ref: 4

SCREW(6X8)

€ 1.50

3341003F00
ref: 5

COIL ASSY,IGNITION

€ 162.50

3342003F00
ref: 6

COIL ASSY,IGNITION

€ 162.50

0918006232
ref: 7

SPACER(6.2X12X5)

€ 5.50

0155006253
ref: 8
MODEL W

BOLT

€ 2.50

0150006253
ref: 8
MODEL X

BOLT

€ 2.50

3351048B10
ref: 9

CAP,SPARK PLUG

€ 29.50

3354123E01
ref: 10

SEAL,SPARK PLUG CAP

€ 7.00

3354238B00
ref: 11

SEAL,HIGH TENSION CORD

€ 4.50

3354348B00
ref: 12

COVER,SPARK PLUG CAP

€ 12.50

3381021E00
ref: 13

WIRE,STARTER MOTOR LEAD

€ 25.50

3186148B10
ref: 14

CAP,STARTER MOTOR LEAD

€ 4.50
