FRONT MASTER CYLINDER

GSX750 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

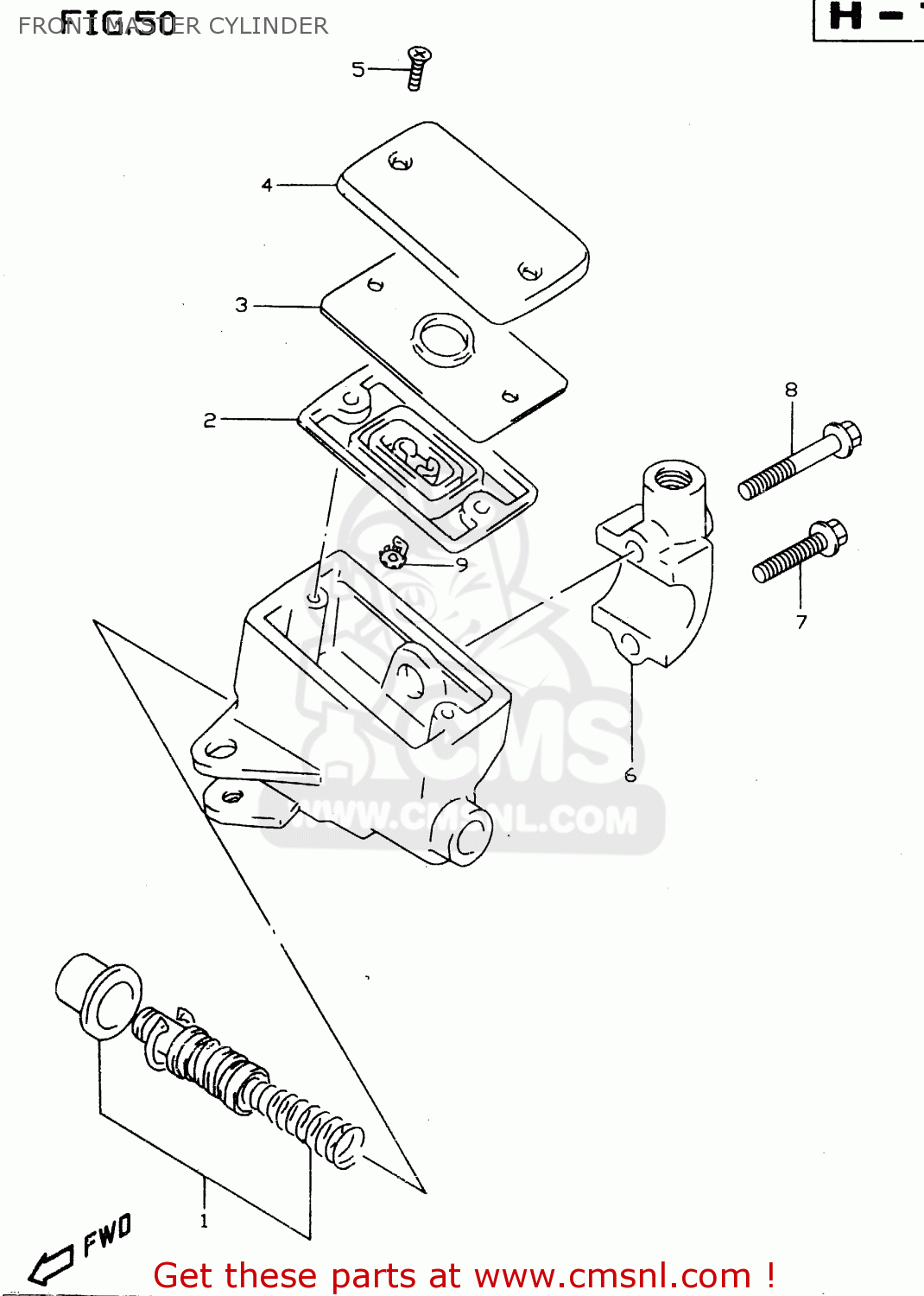

Front master cylinder diagram GSX750 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

FRONT MASTER CYLINDER GSX750 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

FRONT MASTER CYLINDER GSX750 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

0

5960020C30
ref: 0

CYLINDER ASSY,FR MASTER

€ 194.00

1

5960045850
ref: 1

PISTON & CUP SET

€ 38.50

2

5966749460
ref: 2

5966749460

3

5966841C00
ref: 3

PLATE,DIAPHRAGM

€ 8.00

4

5966941C00
ref: 4

CAP

€ 30.00

5

6968949300
ref: 5

SCREW

€ 1.50

6

5967144300
ref: 6

HOLDER

€ 14.50

7

5967519C00
ref: 7

BOLT(6X25)

€ 3.00

8

5967519C10
ref: 8

BOLT(6X38)

€ 4.00

9

5966448B00
ref: 9

PROTECTOR

€ 8.00
