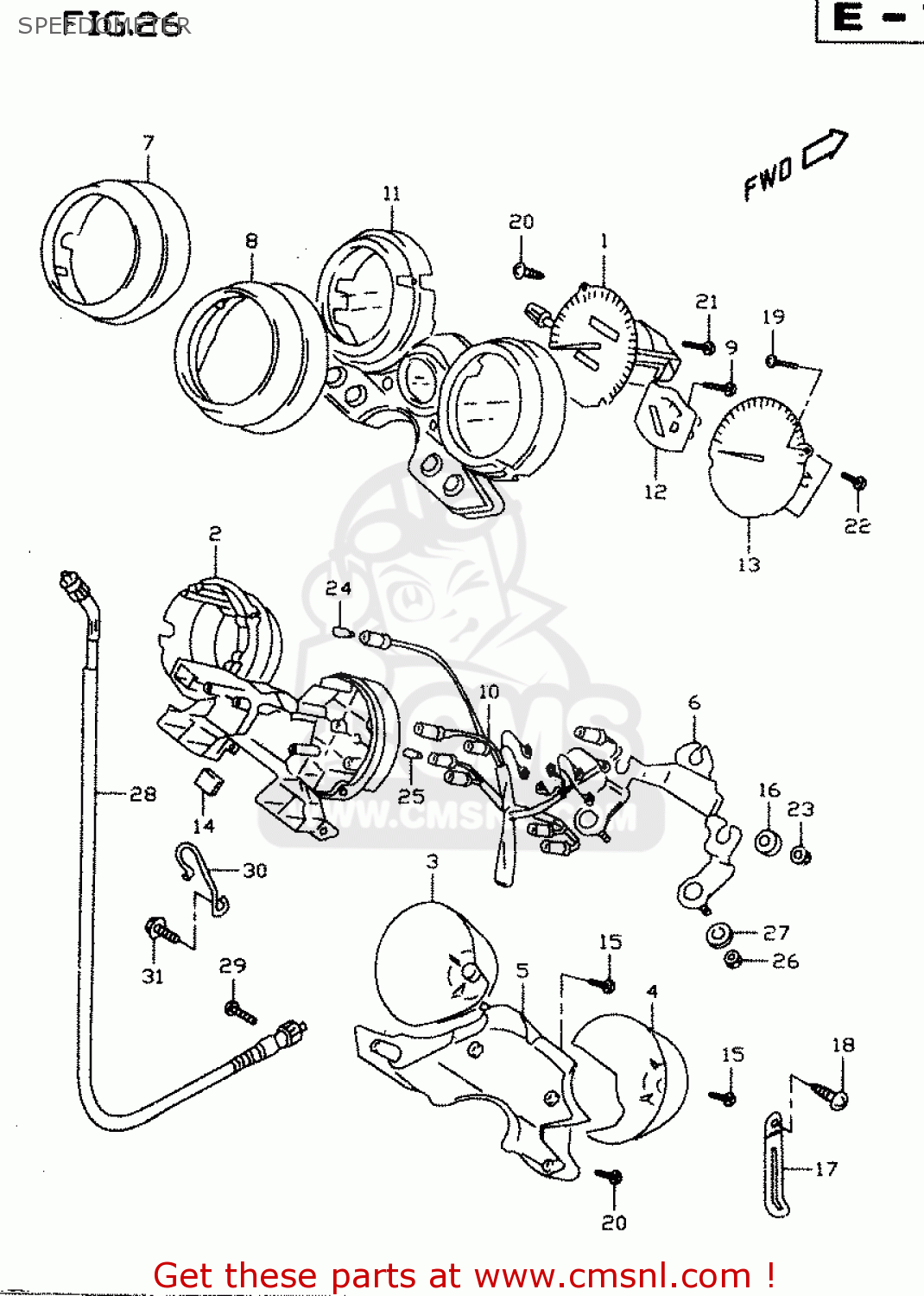

SPEEDOMETER

ref

part #

description

quantity

1

3411003F20
ref: 1

SPEEDOMETER

€ 233.50

1

3411003F10
ref: 1
E4, E17, E18, E22, E

SPEEDOMETER

€ 334.50

2

3411103F10
ref: 2

CASE

€ 52.50

3

3415233DC0
ref: 3

CASE,LWR SPEEDOMETER

€ 37.50

4

3421133DC0
ref: 4

CASE,TACHOMETER LWR

€ 37.50

5

3638303F00
ref: 5

CASE,PILOT BOX LWR

€ 47.50

6

3495003F00
ref: 6

BRACKET,SPEEDOMETER

€ 67.00

7

3419303F00
ref: 7

PLATE

€ 50.00

8

3429303F00
ref: 8

RING

€ 50.00

9

3418212B50
ref: 9

SCREW(3X21.2)

€ 3.00

10

3417003F10
ref: 10
MODEL W

SOCKET,SPEEDOM

€ 162.50

10

3417003F11
ref: 10
MODEL X

SOCKET(W/BULB,T6.5)

€ 162.50

11

3415003F00
ref: 11

CASE ASSY,SPEEDOMETER

€ 224.00

12

3432003F00
ref: 12

BODY ASSY,FUEL METER

€ 153.00

13

3421003F10
ref: 13

TACHOMETER

€ 591.50

14

3636103F10
ref: 14

LENS

€ 6.00

15

3418333DC0
ref: 15

SCREW(4X14)

€ 3.00

16

3499643410
ref: 16

CUSHION,METER

€ 3.00

17

0940410417
ref: 17

CLAMP(L:97)

€ 2.50

18

3418412B00
ref: 18

SCREW

€ 1.50

19

3418303F00
ref: 19

SCREW(3X10)

€ 2.50

20

3418333DC0
ref: 20

SCREW(4X14)

€ 3.00

21

0211273103
ref: 21

SCREW

€ 1.50

22

0211273207
ref: 22

SCREW

€ 2.00

23

0831610053
ref: 23

NUT

€ 2.50

24

0947112108
ref: 24

BULB(12V1.7W,T6.5)

€ 2.00

25

0947112085
ref: 25
MODEL W

BULB(12V3W,WB371,T7)

€ 3.00

25

0947112103
ref: 25
MODEL X

BULB(12V3W,T6.5)

€ 2.50

26

0831000063
ref: 26

NUT 6MM

€ 2.00

27

0916006114
ref: 27

WASHER(6.5X24X1.2)

€ 2.00

28

3491027E01
ref: 28

CABLE ASSY,SPEEDOMETER

€ 97.00

29

0211205163
ref: 29

SCREW

€ 2.00

30

3493803F00
ref: 30

GUIDE,SPEEDOMETER CABLE NO.1

€ 8.00

31

0155006123
ref: 31

BOLT

€ 2.50

all assemblies
