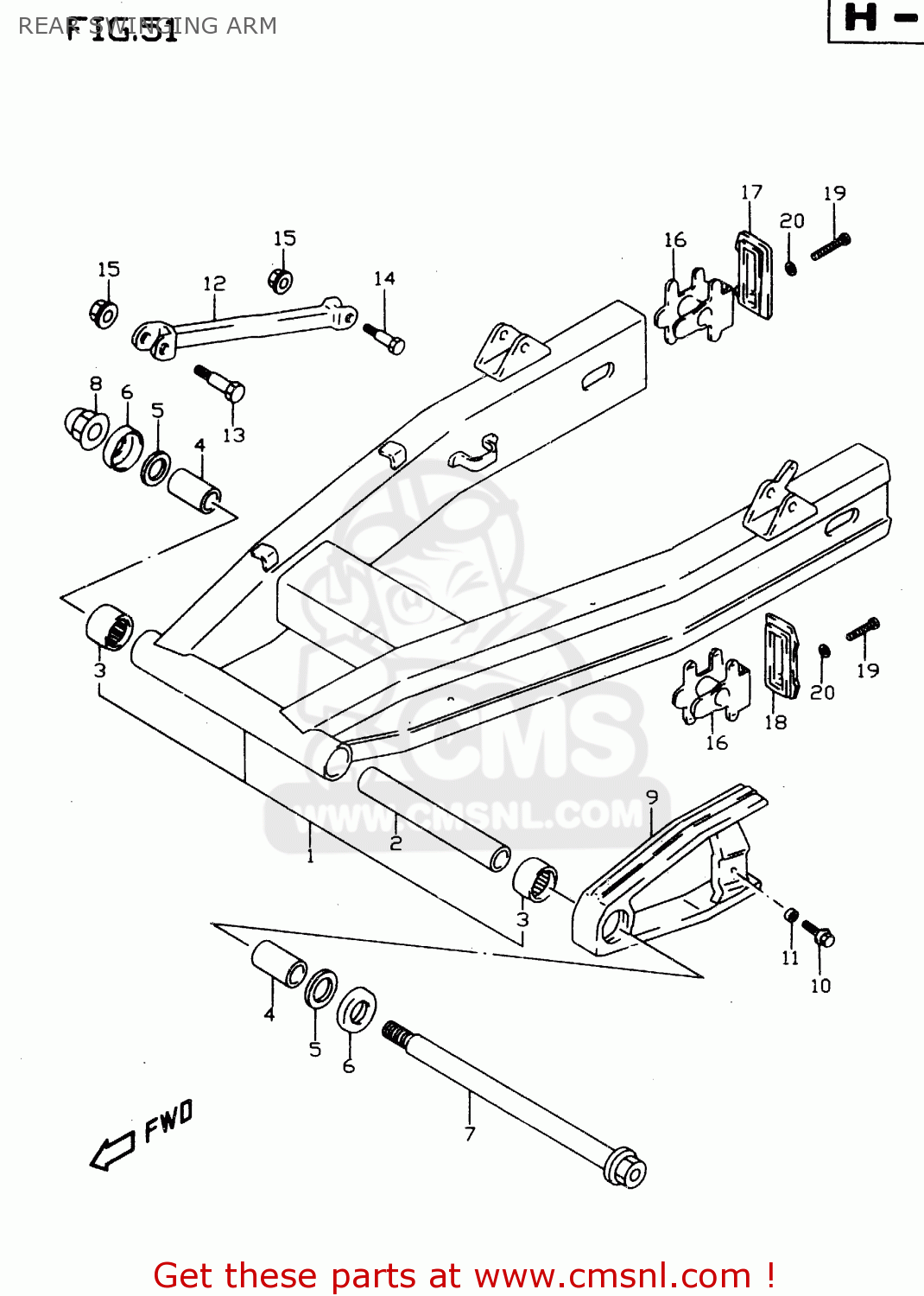

REAR SWINGING ARM

ref

part #

description

quantity

1

6100003F00
ref: 1

SWINGINGARM ASSY,RR

€ 1,052.50

2

0918020113
ref: 2

SPACER(20.8X27.2X161)

€ 21.00

3

0926325024
ref: 3

BEARING(25X33X30)

€ 31.50

4

6125121E00
ref: 4

SPACER,RR SWGARM PIVOT

€ 8.50

5

0821120381
ref: 5

WASHER

€ 3.00

6

6126217C00
ref: 6

DUST SEAL,RR SWGARM PIVOT

€ 8.00

7

6121103F00
ref: 7

SHAFT,RR SWINGINGARM PIVOT

€ 52.50

8

0831931188
ref: 8

NUT ,18MM

€ 17.50

9

6127303F00
ref: 9

BUFFER,CHAIN TOUCH DEFENSE

€ 35.00

10

0911606111
ref: 10

BOLT 6X20,WITH PLAIN WASHER

€ 2.00

11

0918006283
ref: 11

SPACER(6.5X10X7)

€ 2.00

12

6431003F00019
ref: 12

TORQUELINK,RR

€ 39.00

13

0911110051
ref: 13

BOLT(10X39)

€ 8.50

14

0910010187
ref: 14

BOLT(10X34)

€ 4.50

15

0831931107
ref: 15

NUT

€ 3.00

16

6141003F00
ref: 16

ADJUSTER,CHAIN

€ 12.50

17

6142133D01
ref: 17

PLATE,CHAIN ADJUSTER GUIDE,R

€ 17.00

18

6142233D01
ref: 18

PLATE,CHAIN ADJUSTER GUIDE,L

€ 17.00

19

0910608119
ref: 19

BOLT(8X50)

€ 4.50

20

0916408015
ref: 20

WASHER

€ 3.00
