SIGNAL GENERATOR

GSX750 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

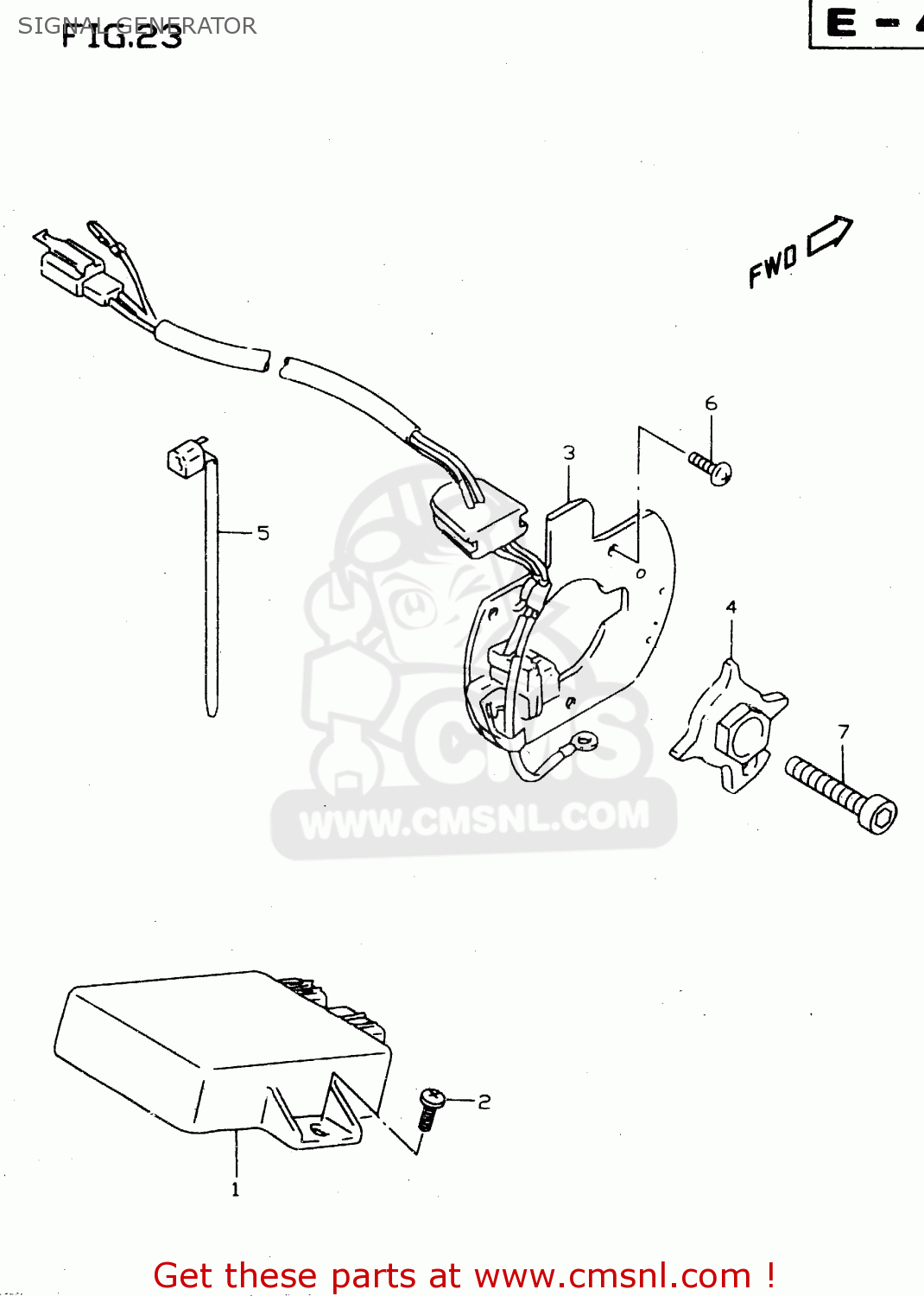

Signal generator diagram GSX750 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

SIGNAL GENERATOR GSX750 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

SIGNAL GENERATOR GSX750 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3290003F10
ref: 1

IGNITOR ASSY

€ 497.50

2

0214206123
ref: 2

SCREW 6X12

€ 2.00

3

3311017C00
ref: 3

GENERATOR ASSY,SIGNAL

€ 324.00

4

3312019C20
ref: 4

ROTOR,SIGNAL GENERATOR

€ 182.00

5

0940714403
ref: 5

CLAMP(L:125)

€ 2.50

6

0211205103
ref: 6

SCREW

€ 2.00

7

0713008303
ref: 7

BOLT

€ 3.00
