FUEL TANK

GSX750 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

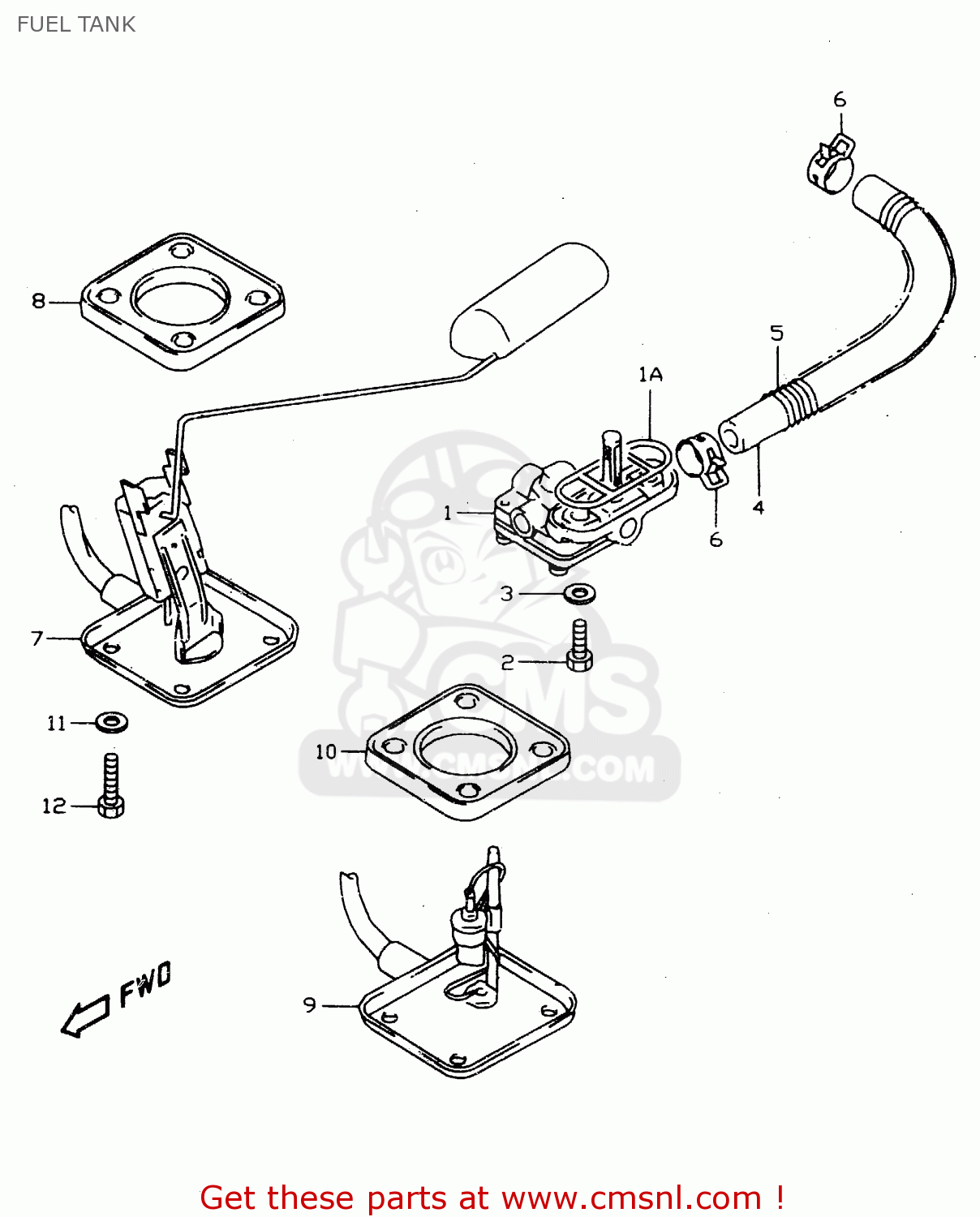

Fuel tank diagram GSX750 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

4430003F00
ref: 1

COCK ASSY, FUEL

€ 123.50

4435133E00
ref: 1A

O RING,JOINT

€ 5.50

0912806057
ref: 2

BOLT(6X20)

€ 2.00

0916806026
ref: 3

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

HOSE(7X12X600)

€ 26.00

0944014047
ref: 5

SPRING

€ 13.50

0940111407
ref: 6

CLIP

€ 2.50

3481003F00
ref: 7

GAUGE ASSY,FUEL LEVEL

€ 120.00

3482503F00
ref: 8

PACKING (NAS)

€ 8.50

3481003F20
ref: 9

GAUGE ASSY,FUEL LEVEL

€ 123.00

3482503F00
ref: 10

PACKING (NAS)

€ 8.50

0916806026
ref: 11

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

0912806057
ref: 12

BOLT(6X20)

€ 2.00

all assemblies
