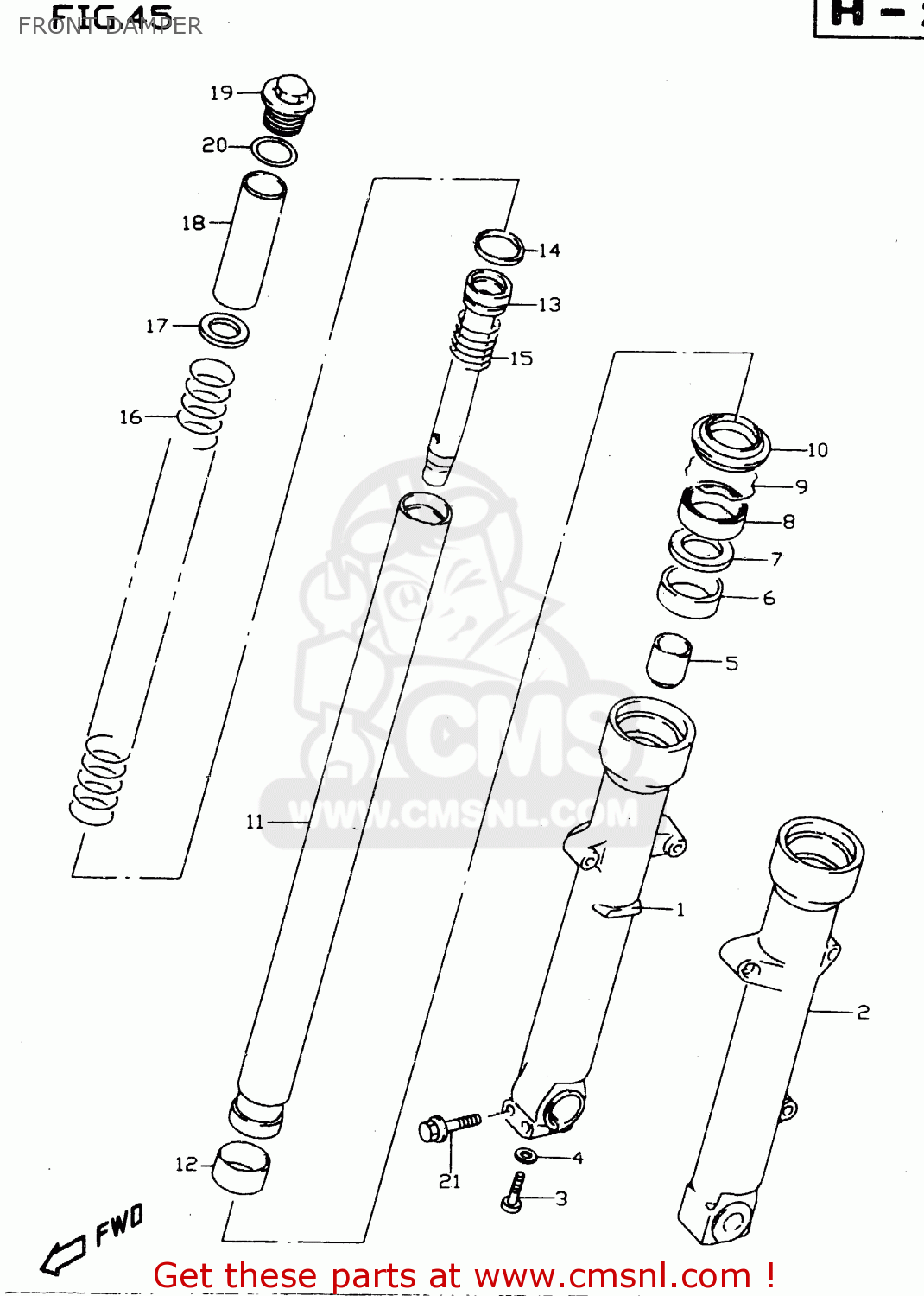

FRONT DAMPER

ref

part #

description

quantity

0

5110303F10
ref: 0

DAMPER ASSY,FR FORK,R

€ 871.00

0

5110403F10
ref: 0

DAMPER ASSY,FR FORK,L

€ 713.50

1

5113103F00
ref: 1

TUBE,OUTER,R

€ 425.00

2

5114103F00
ref: 2

TUBE,OUTER,L

€ 425.00

3

5114748130
ref: 3

BOLT(8X27)

€ 3.50

4

5114836011
ref: 4

GASKET (NAS)

€ 4.00

5

5119503F00
ref: 5

PIECE,OIL LOCK

€ 25.00

6

5115203F00
ref: 6

BUSH,GUIDE

€ 18.00

7

5116817C00
ref: 7

SPACER,SEAL

€ 5.00

8

5115314D00
ref: 8

SEAL,OIL

€ 20.50

9

5155638B00
ref: 9

CIRCLIP,FORK OIL SEAL

€ 4.50

10

5117329E00
ref: 10

SEAL,DUST

€ 23.00

11

5111003F00
ref: 11

TUBE,INNER

€ 541.50

12

5112103F00
ref: 12

BUSH,SLIDE

€ 14.00

13

5114603F00
ref: 13

PIPE,SEAT

€ 74.50

14

5119603F00
ref: 14

RING,PISTON

€ 9.50

15

5117714D00
ref: 15

SPRING,REBOUND

€ 8.00

16

5117103F00
ref: 16

SPRING,FR

€ 89.50

17

5118617C00
ref: 17

SEAT,SPRING LWR

€ 4.50

18

5117612C00
ref: 18

SPACER,SPRING

€ 11.00

19

5118903F00
ref: 19

BOLT,FORK

€ 55.50

20

5111717C00
ref: 20

O RING

€ 3.50

21

0155008457
ref: 21

BOLT

€ 4.00
