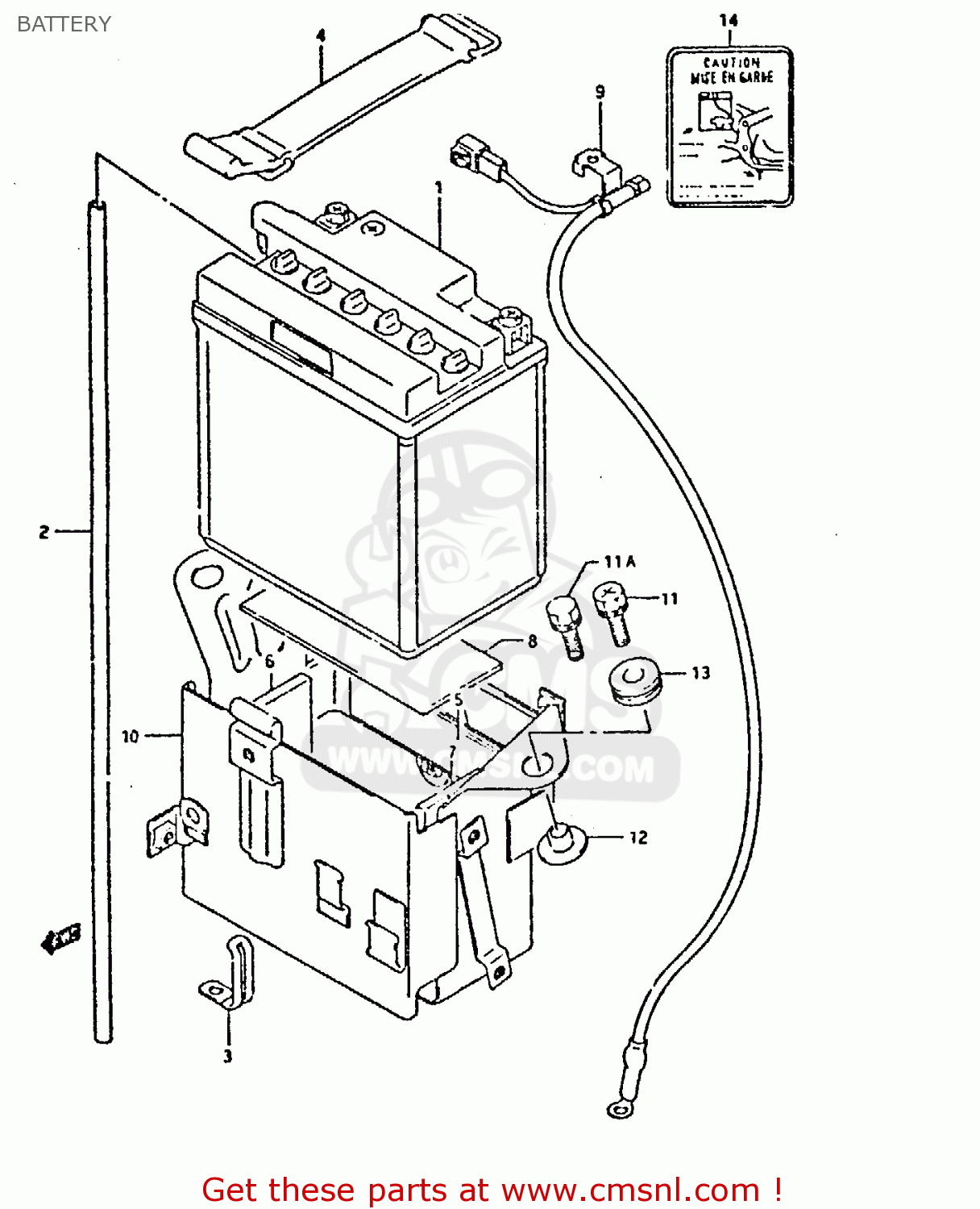

BATTERY

ref

part #

description

quantity

1

3361005A10
ref: 1

BATTERY(YB14L-B2,12V14.7AH)

€ 46.00

2-1

3368031003
ref: 2-1
MODEL K/L/M/N/P

HOSE,BATTERY EXHAUST

€ 4.50

2-2

3368016A10
ref: 2-2
MODEL R/S

HOSE,BATTERY EXHAUST(L:780)

€ 4.50

3

0940406606
ref: 3

CLAMP(L:35)

€ 2.00

4

0946200081
ref: 4

BAND

€ 6.50

5

3365229100
ref: 5
@r33651-37000

PROTECTOR,20X9

€ 5.00

6

3365220C00
ref: 6

PROTECTOR(50X50X5)

€ 2.50

7

3365137000
ref: 7
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

8

3365137000
ref: 8
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

9

3386019C00
ref: 9

WIRE,BATTERY MINUS LEAD

€ 17.50

10-1

4154020C01
ref: 10-1
MODEL K/L/M/N/P

HOLDER,BATTERY

€ 34.50

10-2

4157047D00
ref: 10-2
MODEL R/S

SPACER COMP,BATTERY

€ 3.00

11

0913706014
ref: 11
MODEL K/L/M/N/P/R

BOLT L:30

€ 2.00

11A

0157006303
ref: 11A
MODEL S

BOLT

€ 2.00

12

4157019C00
ref: 12

PLATE,BATTERY HOLDER

€ 3.50

13-1

0932008007
ref: 13-1
MODEL K/L/M/N/P

CUSHION

€ 4.00

13-2

0932008021
ref: 13-2
MODEL R/S

CUSHION

€ 4.00

14

3369019C10
ref: 14

PLATE,BATTERY CAUTION

€ 3.00

all assemblies
