STARTER CLUTCH

GSX750F 1993 (P) (E01 E02 E04 E18 E21 E22 E24 E25 E30 E34 E53)

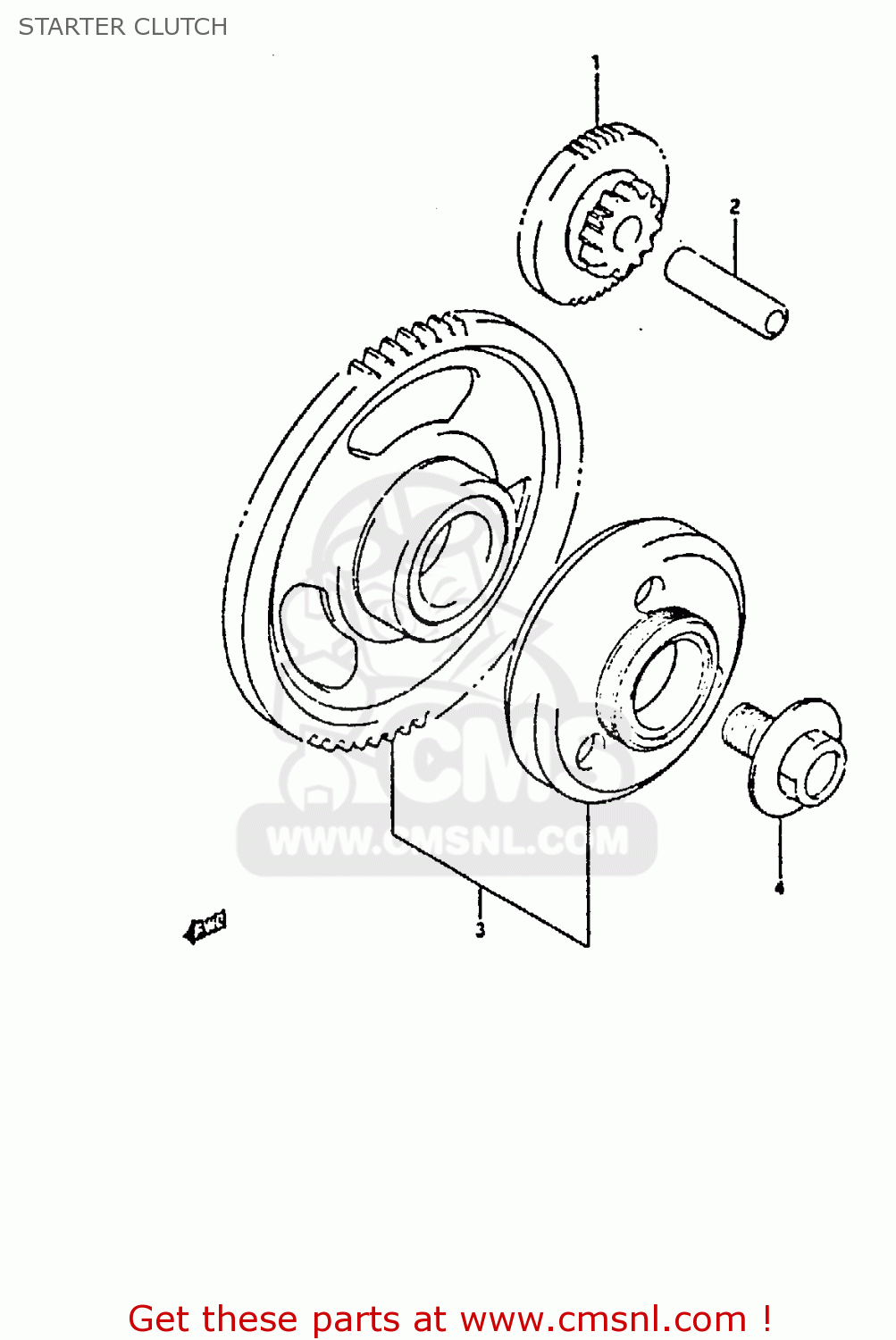

Starter clutch diagram GSX750F 1993 (P) (E01 E02 E04 E18 E21 E22 E24 E25 E30 E34 E53)

STARTER CLUTCH GSX750F 1993 (P) (E01 E02 E04 E18 E21 E22 E24 E25 E30 E34 E53)

STARTER CLUTCH GSX750F 1993 (P) (E01 E02 E04 E18 E21 E22 E24 E25 E30 E34 E53)

prices are in EUR

ref

part #

description

quantity

1

1261127A01
ref: 1

GEAR,STARTER IDLE

€ 52.00

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3-1

1260017811
ref: 3-1
MODEL K/L/M/N/P @r12

CLUTCH SET,STARTER

€ 377.50

3-2

1260048811
ref: 3-2
MODEL R/S

CLUTCH SET,STARTER

€ 377.50

4

0910314005
ref: 4

BOLT(14X21)

€ 17.00

all assemblies
