HEADLAMP (MODEL S)

GSX750F 1993 (P) (E01 E02 E04 E18 E21 E22 E24 E25 E30 E34 E53)

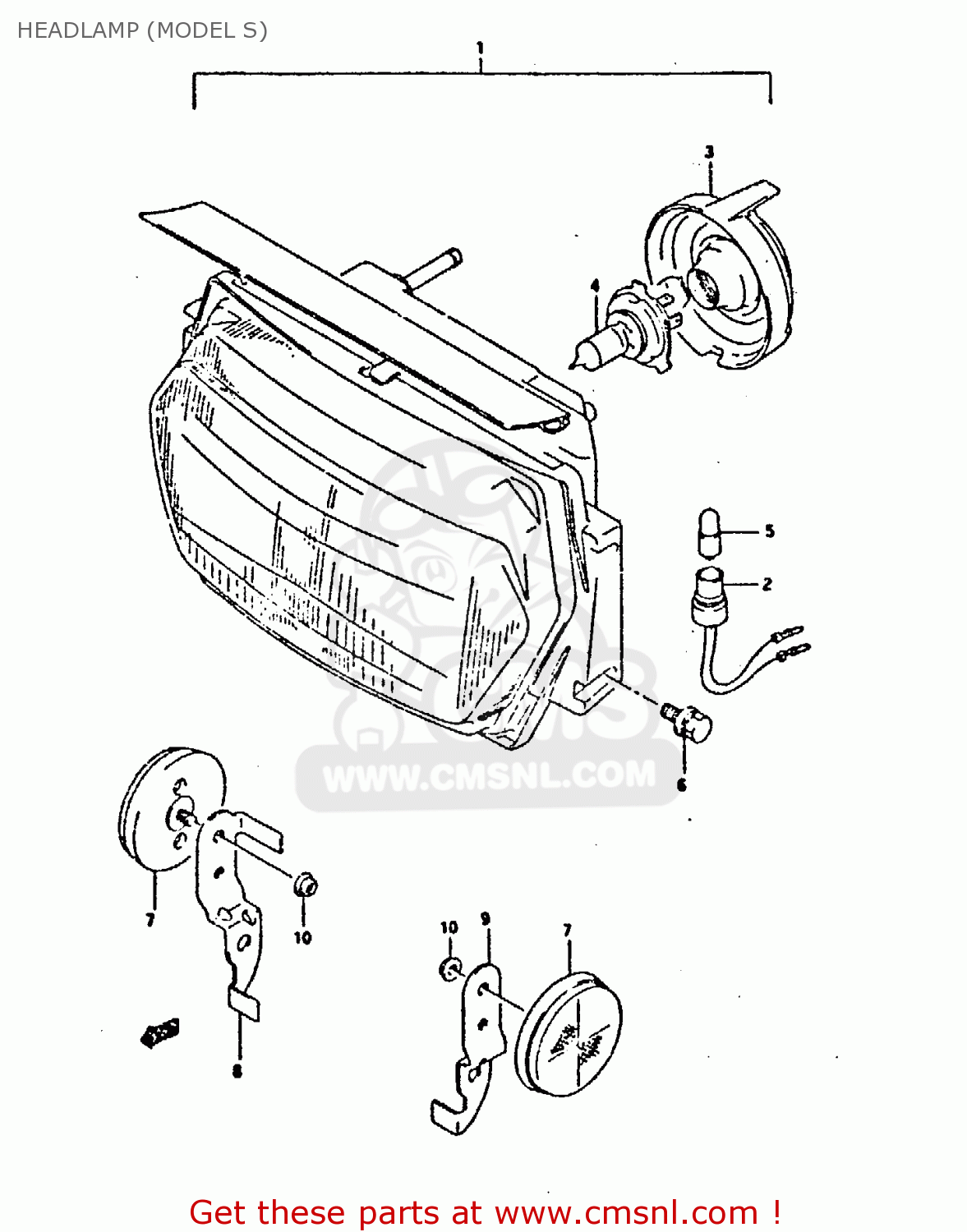

Headlamp (model s) diagram GSX750F 1993 (P) (E01 E02 E04 E18 E21 E22 E24 E25 E30 E34 E53)

HEADLAMP (MODEL S) GSX750F 1993 (P) (E01 E02 E04 E18 E21 E22 E24 E25 E30 E34 E53)
HEADLAMP (MODEL S) GSX750F 1993 (P) (E01 E02 E04 E18 E21 E22 E24 E25 E30 E34 E53)
HEADLAMP (MODEL S) GSX750F 1993 (P) (E01 E02 E04 E18 E21 E22 E24 E25 E30 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
3510034C01999
ref: 1-1
HEADLAMP ASSY
3510034C01999
€ 217.00
1-2
3510020C51999
ref: 1-2
E18, E22, E37
HEADLAMP ASSY
3510020C51999
€ 217.00
1-3
3510020C10999
ref: 1-3
E24
HEADLAMP ASSY
€ 189.50
2
3611832B10
ref: 2
SOCKET
3611832B10
€ 9.50
3
3517348B00
ref: 3
COVER,SOCKET
3517348B00
€ 10.50
4
0947112060
ref: 4
BULB(12V60/55W,H4)
0947112060
€ 8.00
5
0947112063
ref: 5
BULB(12V4W)
0947112063
€ 6.00
6
0158006163
ref: 6
BOLT
0158006163
€ 2.50
7
3595014A00
ref: 7
E18
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
8
3595619C00
ref: 8
E18
BRACKET,FR SIDE RR,R
€ 4.50
9
3595719C00
ref: 9
E18
BRACKET,FR SIDE RR,L
€ 5.50
10
0831000053
ref: 10
E18
NUT
€ 2.50
4
3517348B00
ref: 4
COVER,SOCKET
3517348B00
€ 10.50
5
3524219C00
ref: 5
GASKET,HEADLAMP (NAS)
€ 10.50
6
3524319C00
ref: 6
GASKET,HEADLAMP (NAS)
€ 8.00
7
3524419C00
ref: 7
GASKET (NAS)
€ 3.50
8
0947112060
ref: 8
BULB(12V60/55W,H4)
0947112060
€ 8.00
9
0947112061
ref: 9
MODEL K/L/M/N/P E4 P
BULB (12V, 60/55W, H4)
€ 0.00
10
0947112063
ref: 10
BULB(12V4W)
0947112063
€ 6.00
11
0158006163
ref: 11
BOLT
0158006163
€ 2.50
11A
3595043431
ref: 11A
E30
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.00
12
3595014A00
ref: 12
E39, MODEL P/R E18
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
13
3595619C00
ref: 13
E39, MODEL P/R E18
BRACKET,FR SIDE RR,R
€ 4.50
14
3595719C00
ref: 14
E39, MODEL P/R E18
BRACKET,FR SIDE RR,L
€ 5.50
15-1
0831626055
ref: 15-1
E39, MODEL P E18
NUT
0831626055
€ 2.00
15-2
0831000053
ref: 15-2
MODEL R E18
NUT
€ 2.50
