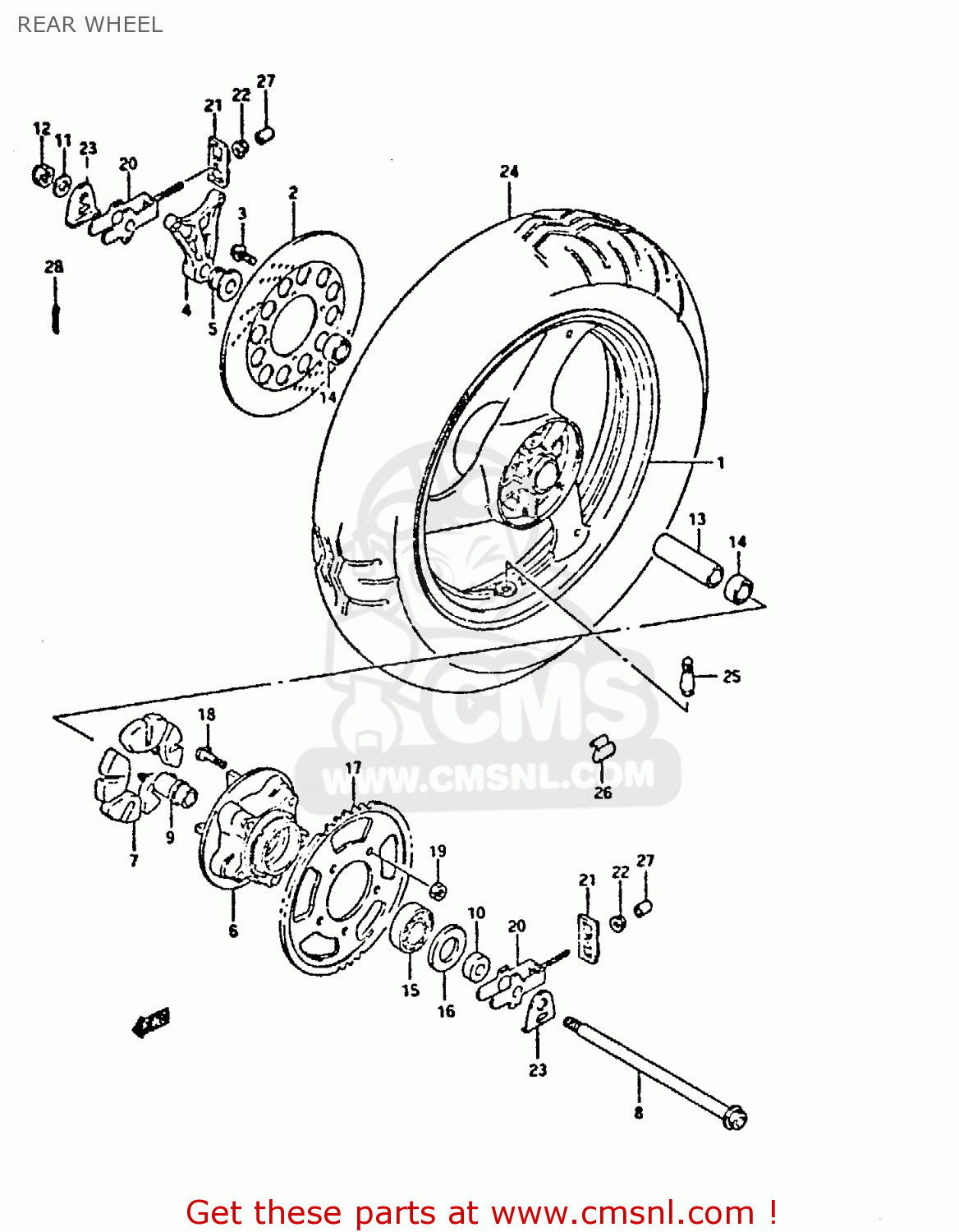

REAR WHEEL

ref

part #

description

quantity

1-1

6411134C0012Z
ref: 1-1
MODEL K/L/M

WHEEL,REAR (MT3.50X17)

€ 596.00

1-2

6411134C0012R
ref: 1-2
MODEL N/R/S, FOR 19A

WHEEL,REAR (MT3.50X17)

€ 733.50

1-3

6411134C0035B
ref: 1-3
MODEL N, FOR 33J, 12

WHEEL,REAR (MT3.50X17)

€ 608.50

1-4

6411134C001DR
ref: 1-4
MODEL R, FOR 33J

WHEEL,REAR (MT3.50X17)

€ 608.50

1-5

6411134C001TU
ref: 1-5
MODEL S FOR 33J

WHEEL,REAR (MT3.50X17)

€ 575.50

2-1

6921134C00
ref: 2-1
MODEL K/L/M/N

DISC,REAR BRAKE

€ 232.50

2-2

6921101D00
ref: 2-2
MODEL P/R/S

DISC,RR BRAKE

€ 232.50

3-1

0712008305
ref: 3-1
MODEL K/L/M/N/P

BOLT

€ 3.50

3-2

0910608131
ref: 3-2
MODEL R/S

BOLT(8X30)

€ 3.50

4

6972143400
ref: 4

BRACKET,RR,CALIPER

€ 51.50

5

6474019C00
ref: 5

SPACER,RR AXLE,R

€ 19.00

6

6461117C01
ref: 6

DRUM,RR SPROCKET MOUNTING

€ 159.00

7

6465127A01
ref: 7

ABSORBER,RR HUB SHOCK

€ 6.00

8-1

6471119C10
ref: 8-1

AXLE, REAR

€ 48.50

8-2

6471119C00
ref: 8-2
E30

AXLE,REAR

€ 48.50

9

6473334C00
ref: 9

RETAINER,RR SPROCKET DRUM

€ 27.50

10

6475134C00
ref: 10

SPACER,RR AXLE,L

€ 28.00

11

0916017013
ref: 11

WASHER (17X30X3.2)

€ 2.00

12-1

0831921168
ref: 12-1

NUT 16MM

€ 5.00

12-2

0831441168
ref: 12-2
MODEL N/P E30

NUT

€ 4.50

12-3

0831440163
ref: 12-3
MODEL R E30

NUT

€ 4.50

13

0918017067
ref: 13

SPACER(17.5X25X88)

€ 13.50

14

0814363037
ref: 14

BEARING

€ 23.00

15

0926225073
ref: 15

BEARING(25X62X17)

€ 21.50

16

0928535C01
ref: 16

OIL SEAL

€ 0.00

17

6451120C11
ref: 17

SPROCKET,RR(NT:47-530)

€ 99.50

18

0911910037
ref: 18

BOLT

€ 6.00

19

0831931107
ref: 19

NUT

€ 3.00

20-1

6141020C00
ref: 20-1
MODEL K/L/M/N

ADJUSTER,CHAIN

€ 22.00

20-2

6141020C02
ref: 20-2
MODEL N/P/R/S

ADJUSTER,CHAIN

€ 22.00

21-1

6142120C00
ref: 21-1
MODEL K/L/M/N

PLATE,CHAIN ADJUSTER GUIDE

€ 6.50

21-2

6142120C01
ref: 21-2
MODEL N/P/R/S

PLATE,CHAIN ADJUSTER GUIDE

€ 6.50

22-1

0831931085
ref: 22-1
MODEL K/L/M/N

NUT

€ 2.50

22-2

0831931087
ref: 22-2
MODEL N/P/R/S

NUT

€ 2.50

23

6144520C01
ref: 23

WASHER,CHAIN ADJUSTER

€ 7.00

24-1

6510020CA0
ref: 24-1
MODEL K PURCHASE LOC

TIRE

€ 0.00

24-2

6510020CB0
ref: 24-2
MODEL L/M PURCHASE L

TIRE

€ 0.00

24-3

6511020CB0
ref: 24-3
MODEL N/P/R/S PURCHA

TIRE 150/70VB17 (69V) V2

€ 0.00

25-1

4313024A00
ref: 25-1
@r43130-24A11

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

25-2

4313024A11
ref: 25-2

VALVE ASSEMBLY,WHEEL,TR412

€ 7.00

26-1

5541100A00
ref: 26-1

BALANCER,WHEEL (10G)

€ 6.50

26-2

5541200A01
ref: 26-2

BALANCER,WHEEL (20G)

€ 7.00

26-3

5541300A01
ref: 26-3

BALANCER,WHEEL

€ 4.00

27

6144233300
ref: 27
E22

CAP,CHAIN ADJUSTER

€ 6.00

28

0411140308
ref: 28
E30

PIN,COTTER

€ 1.50
