SIGNAL GENERATOR

GSX750F 1993 (P) (E01 E02 E04 E18 E21 E22 E24 E25 E30 E34 E53)

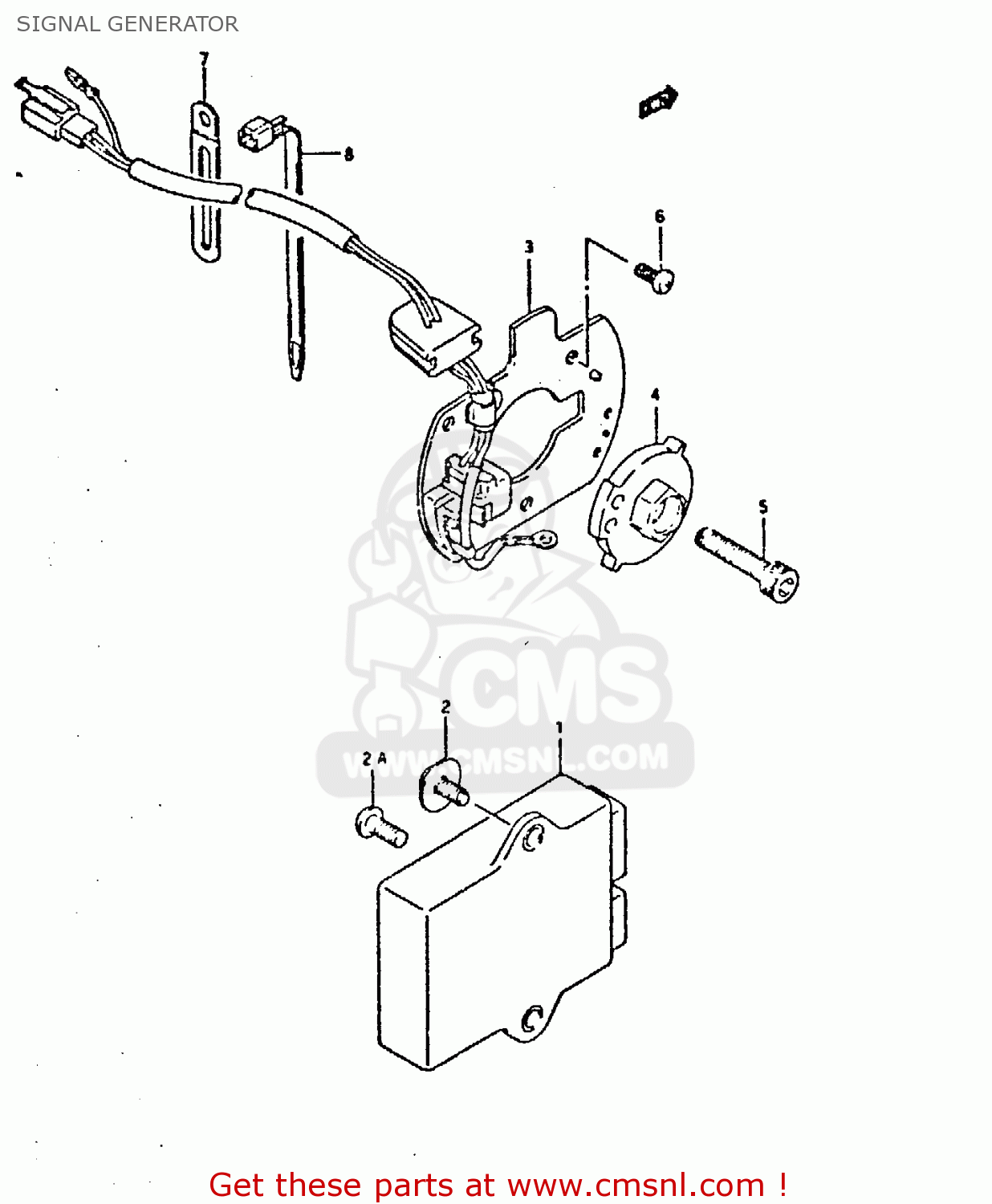

Signal generator diagram GSX750F 1993 (P) (E01 E02 E04 E18 E21 E22 E24 E25 E30 E34 E53)

prices are in EUR

ref

part #

description

quantity

1-1

3290020C10
ref: 1-1

IGNITER

€ 620.50

1-2

3290020C10
ref: 1-2
MODEL K/L/M/N/P E22

IGNITER

€ 620.50

1-3

3290020C20
ref: 1-3
MODEL R/S E22

IGNITOR ASSY

€ 620.50

0211216126
ref: 2
MODEL K/L/M/N/P

SCREW

€ 2.00

0214206123
ref: 2A
MODEL R/S

SCREW 6X12

€ 2.00

3311017C00
ref: 3

GENERATOR ASSY,SIGNAL

€ 324.00

3312019C00
ref: 4

ROTOR,SIGNAL

€ 182.00

5-1

0711008306
ref: 5-1
MODEL K/L/M/N/P

BOLT

€ 3.00

5-2

0713008303
ref: 5-2
MODEL R/S

BOLT

€ 3.00

6-1

0211205107
ref: 6-1
MODEL K/L/M/N/P

SCREW

€ 2.00

6-2

0211205103
ref: 6-2
MODEL R/S

SCREW

€ 2.00

0940408403
ref: 7

CLAMP

€ 3.50

0940714403
ref: 8

CLAMP(L:125)

€ 2.50
