LEFT HANDLE SWITCH

GSX750F 1993 (P) (E01 E02 E04 E18 E21 E22 E24 E25 E30 E34 E53)

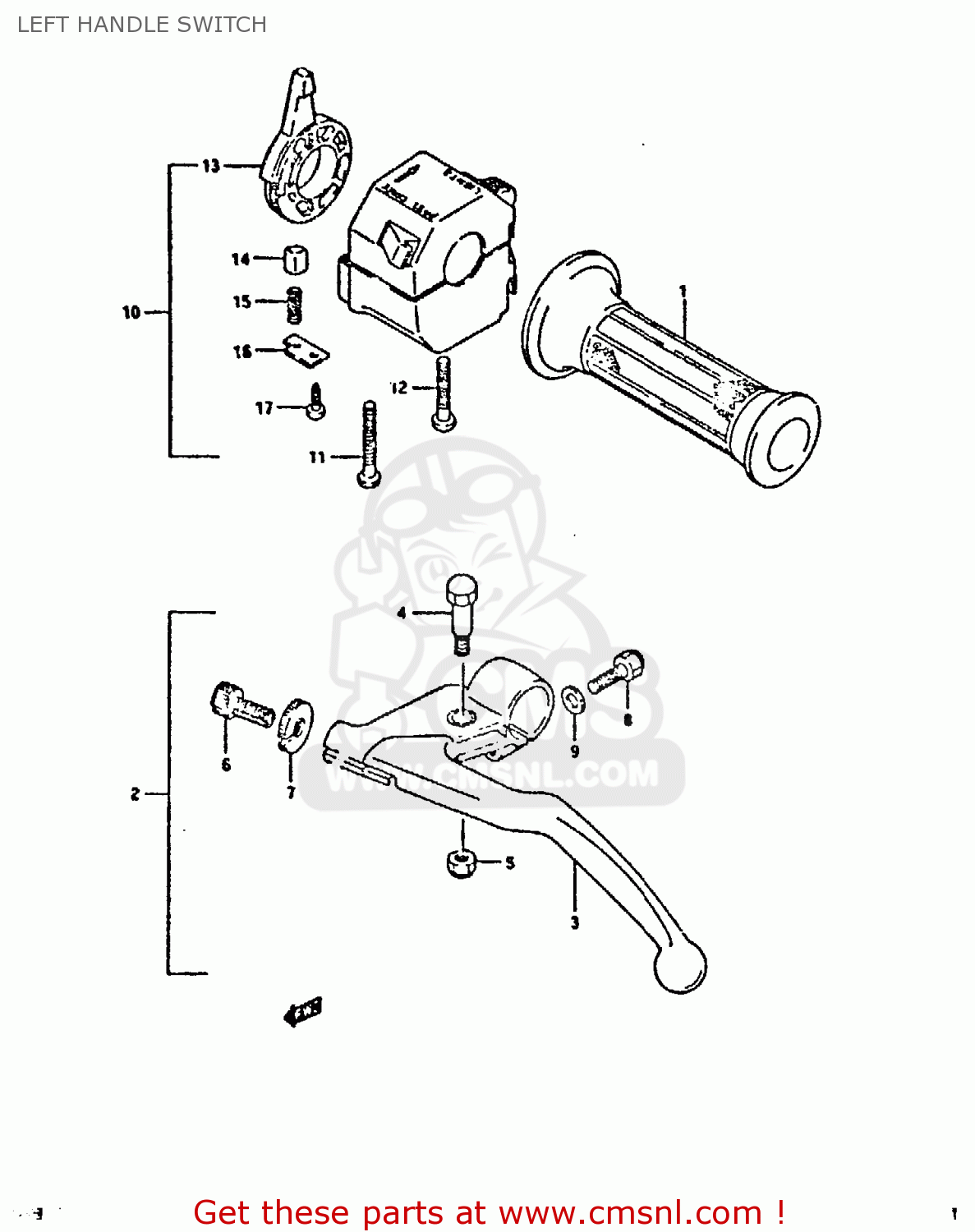

Left handle switch diagram GSX750F 1993 (P) (E01 E02 E04 E18 E21 E22 E24 E25 E30 E34 E53)

prices are in EUR

ref

part #

description

quantity

5721149500
ref: 1

GRIP,L

€ 9.00

2-1

5750019C11
ref: 2-1

LEVER ASSY,CLUTCH

€ 54.00

2-2

5750019C01
ref: 2-2
E30 WITH SWITCH 5756

LEVER ASSY,CLUTCH

€ 48.00

5762019C01
ref: 3

LEVER,CLUTCH

€ 34.00

5743149110
ref: 4

BOLT,LEVER PIVOT

€ 5.00

0831921065
ref: 5

NUT

€ 2.50

5744144400
ref: 6

ADJUSTER,CABLE

€ 5.50

5744211010
ref: 7
57442-44400

NUT,CABLE ADJUSTER

€ 4.00

0120406204
ref: 8

BOLT

€ 2.00

0832221064
ref: 9

WASHER

€ 2.00

10-1

3740032B01
ref: 10-1

SWITCH ASSY

€ 146.00

10-2

3740047B31
ref: 10-2
E30

SWITCH ASSY, HANDLE,LH

€ 81.00

0211205455
ref: 11

SCREW, 5X45

€ 4.00

0211205405
ref: 12

SCREW

€ 2.00

3748130B01
ref: 13

LEVER,CHOKE

€ 13.00

3748230B00
ref: 14

PIECE,SLIDE

€ 4.00

3748330B00
ref: 15

SPRING

€ 7.50

3748630B00
ref: 16

PLATE

€ 3.00

0351104123
ref: 17

SCREW, TRUNK BOX

€ 1.50
