RIGHT HANDLE SWITCH

GSX750F 1993 (P) (E01 E02 E04 E18 E21 E22 E24 E25 E30 E34 E53)

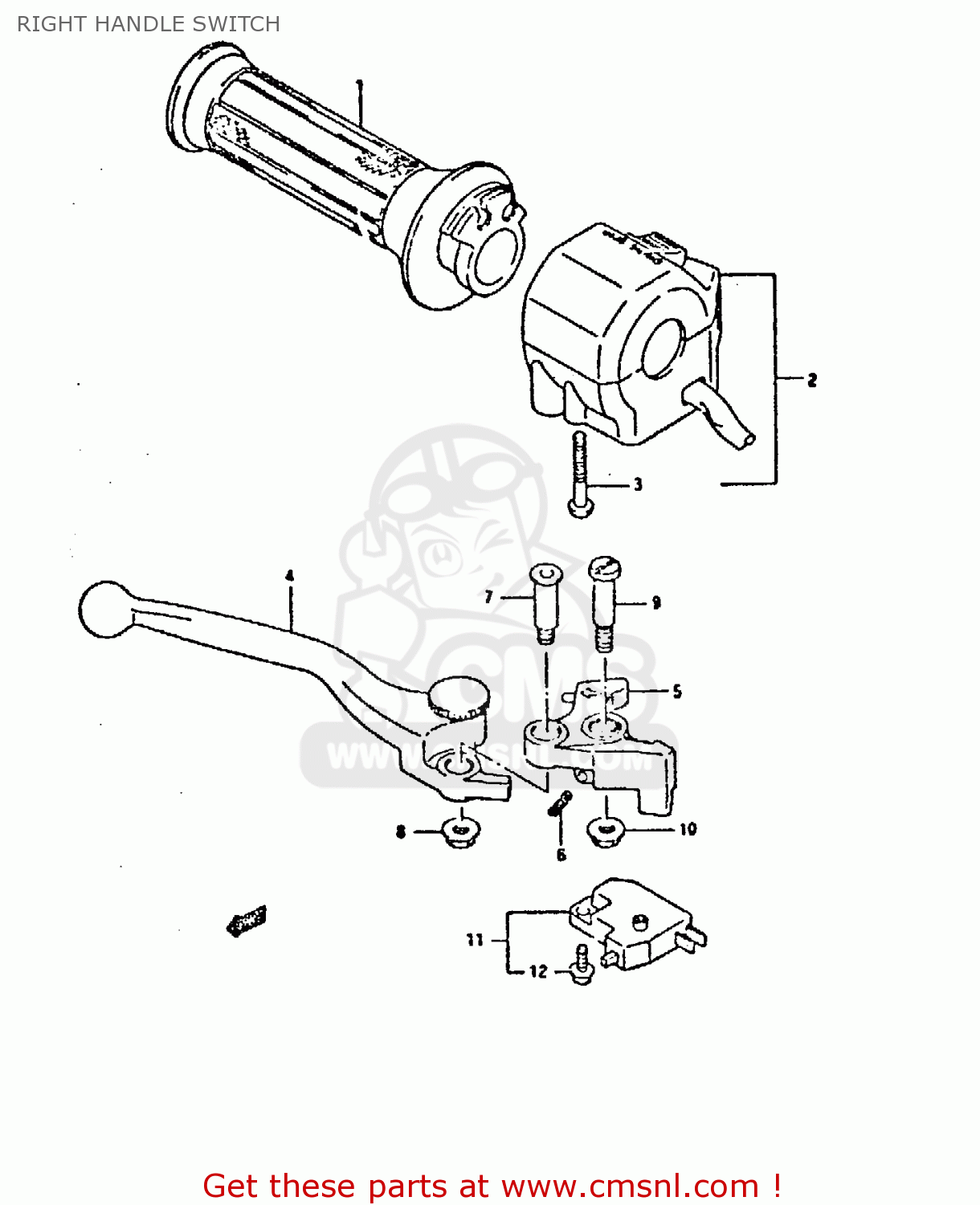

Right handle switch diagram GSX750F 1993 (P) (E01 E02 E04 E18 E21 E22 E24 E25 E30 E34 E53)

prices are in EUR

ref

part #

description

quantity

5711049501
ref: 1

GRIP,THROTTLE

€ 26.00

2-1

3720017C03
ref: 2-1

SWITCH ASSY,HA

€ 129.00

2-2

3720017C32
ref: 2-2
MODEL N/P/R/S E24, E

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 110.00

0211205455
ref: 3

SCREW, 5X45

€ 4.00

5742032C00
ref: 4

LEVER,ADJUST

€ 39.50

5743040C00
ref: 5

KNOCKER

€ 51.00

5743832C00
ref: 6

SPRING

€ 4.00

5743732C00
ref: 7

BOLT,LEVER

€ 6.50

0831931065
ref: 8

NUT

€ 2.50

5743117C00
ref: 9

BOLT,LEVER PIVOT

€ 8.00

0831616064
ref: 10

NUT 6MM

€ 2.50

5746017C00
ref: 11

SWITCH ASSEMBLY,STOP

€ 32.50

5746517C00
ref: 12

SCREW

€ 1.50
