ALTERNATOR

GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

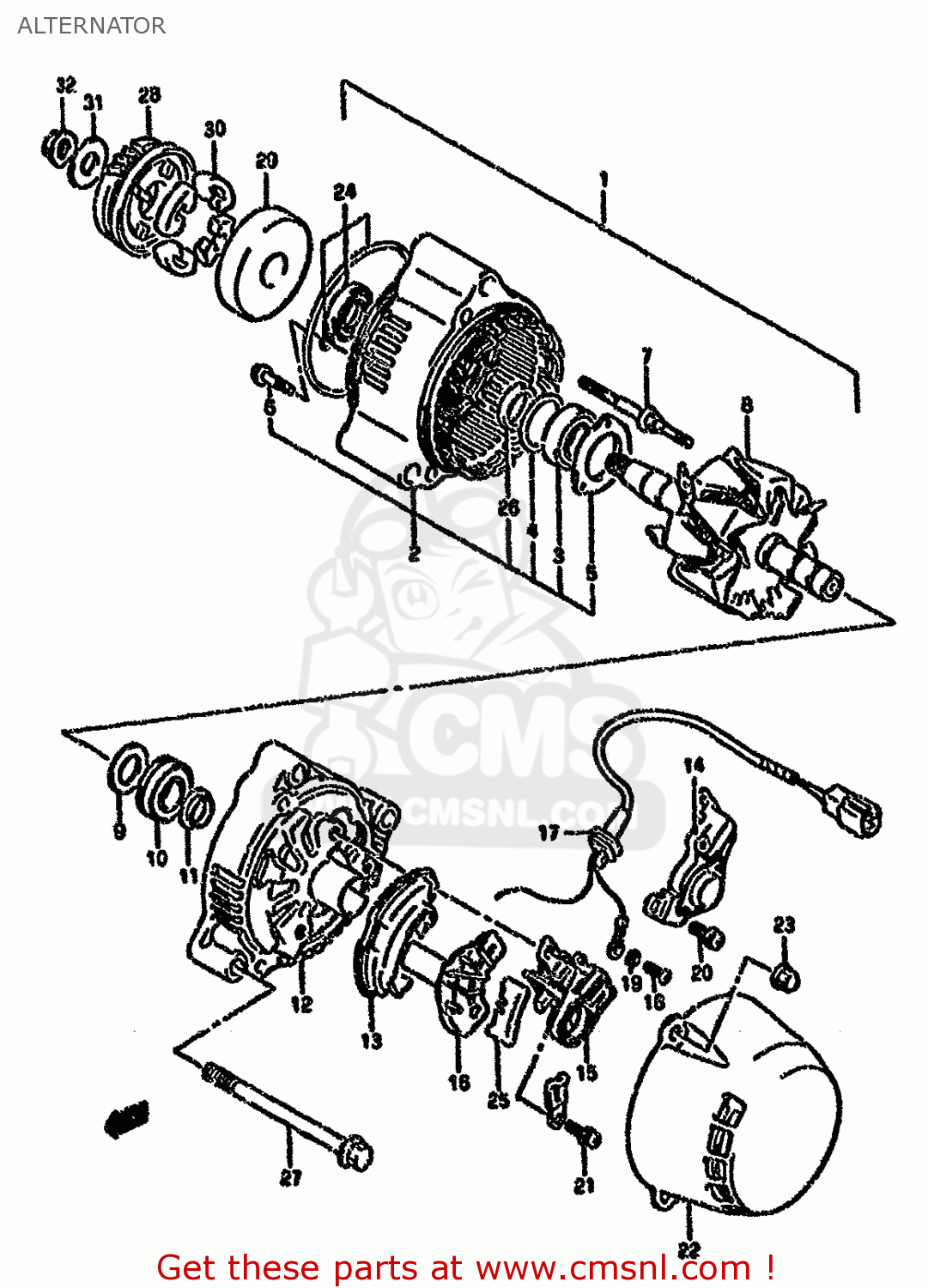

Alternator diagram GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

ALTERNATOR GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)
ALTERNATOR GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)
ALTERNATOR GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
3140019C02
ref: 1-1
MODEL K/L/M/N/P 3140
ALTERNATOR ASSEMBLY
€ 1,063.50
1-2
3140017C03
ref: 1-2
MODEL R/S
ALTERNATOR ASSEMBLY
€ 1,063.50
1-3
3140017C04
ref: 1-3
MODEL T
ALTERNATOR ASSY
3140017C04
€ 1,063.50
2
3158048B00
ref: 2
FRAME,DRIVE END
3158048B00
€ 248.50
3
3161206B00
ref: 3
BEARING
3161206B00
€ 36.50
4
3161348B00
ref: 4
COVER,BEARING
3161348B00
€ 5.50
5
3158548B00
ref: 5
RETAINER
3158548B00
€ 9.00
6
3158648B00
ref: 6
SCREW,BEARING RETAINER
3158648B00
€ 3.50
7
3158785250
ref: 7
STUD BOLT
€ 9.00
8-1
3171048B03
ref: 8-1
MODEL K/L/M/N/P/R
ROTOR ASSEMBLY
3171048B03
€ 277.50
8-2
3171048B04
ref: 8-2
MODEL S/T
ALTERNATOR ASSY
€ 277.50
9
3161382610
ref: 9
COVER,BEARING
3161382610
€ 3.50
10
3161248B00
ref: 10
BEARING
3161248B00
€ 42.50
11
3161327A10
ref: 11
COVER(2)
3161327A10
€ 5.50
12
3161148B00
ref: 12
FRAME,END
€ 83.00
13
3162127A00
ref: 13
HOLDER,RECTIFIER
3162127A00
€ 225.50
14
3250027A00
ref: 14
REGULATOR
3250027A00
€ 321.00
15
3165648B00
ref: 15
HOLDER,BRUSH
3165648B00
€ 55.50
16
3168727A00
ref: 16
COVER,RECTIFIER
€ 4.50
17
3148048B00
ref: 17
WIRE,LEAD
3148048B00
€ 22.00
18-1
0211204086
ref: 18-1
MODEL K
SCREW
€ 2.00
18-2
0211204063
ref: 18-2
MODEL L/M/N/P/R/S/T
SCREW 4X6
0211204063
€ 2.00
19
0832101043
ref: 19
MODEL K
WASHER,LOCK
0832101043
€ 2.00
20
3168827A00
ref: 20
SCREW
3168827A00
€ 2.50
21
3168827A00
ref: 21
31688-06B00
SCREW
3168827A00
€ 2.50
22
3161448B00
ref: 22
COVER
3161448B00
€ 67.50
23-1
3169248B00
ref: 23-1
MODEL K
NUT
€ 1.50
23-2
0831616055
ref: 23-2
MODEL L/M/N/P/R/S
NUT ,5MM
€ 2.00
23-3
0831610053
ref: 23-3
MODEL T
NUT
0831610053
€ 2.50
24
3178027X50
ref: 24
31780-48B00
SERVICE KIT(A)
3178027X50
€ 47.50
25
3168717E00
ref: 25
31514-27A00
COVER,RECTIFIER
3168717E00
€ 4.50
26
3177606B00
ref: 26
SPACER
3177606B00
€ 22.00
27-1
0151708908
ref: 27-1
MODEL K/L/M/N/P
BOLT 8X90
€ 3.50
27-2
0157008903
ref: 27-2
MODEL R/S
BOLT
0157008903
€ 4.50
27-3
0155008903
ref: 27-3
MODEL T
BOLT
0155008903
€ 3.50
28
2273020C00
ref: 28
GEAR,GENERATOR DRIVEN
€ 112.50
29
2273327A04
ref: 29
HOUSING,GENERATOR GEAR
€ 95.00
30
2123106B00
ref: 30
DAMPER,GENERATOR DRIVEN
2123106B00
€ 5.50
31
0821110283
ref: 31
WASHER
0821110283
€ 3.00
32-1
0831626106
ref: 32-1
MODEL K/L/M/N/P/R
NUT
€ 3.50
32-2
0831620103
ref: 32-2
MODEL S/T
NUT
0831620103
€ 3.50
