COWLING BODY (MODEL T)

GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

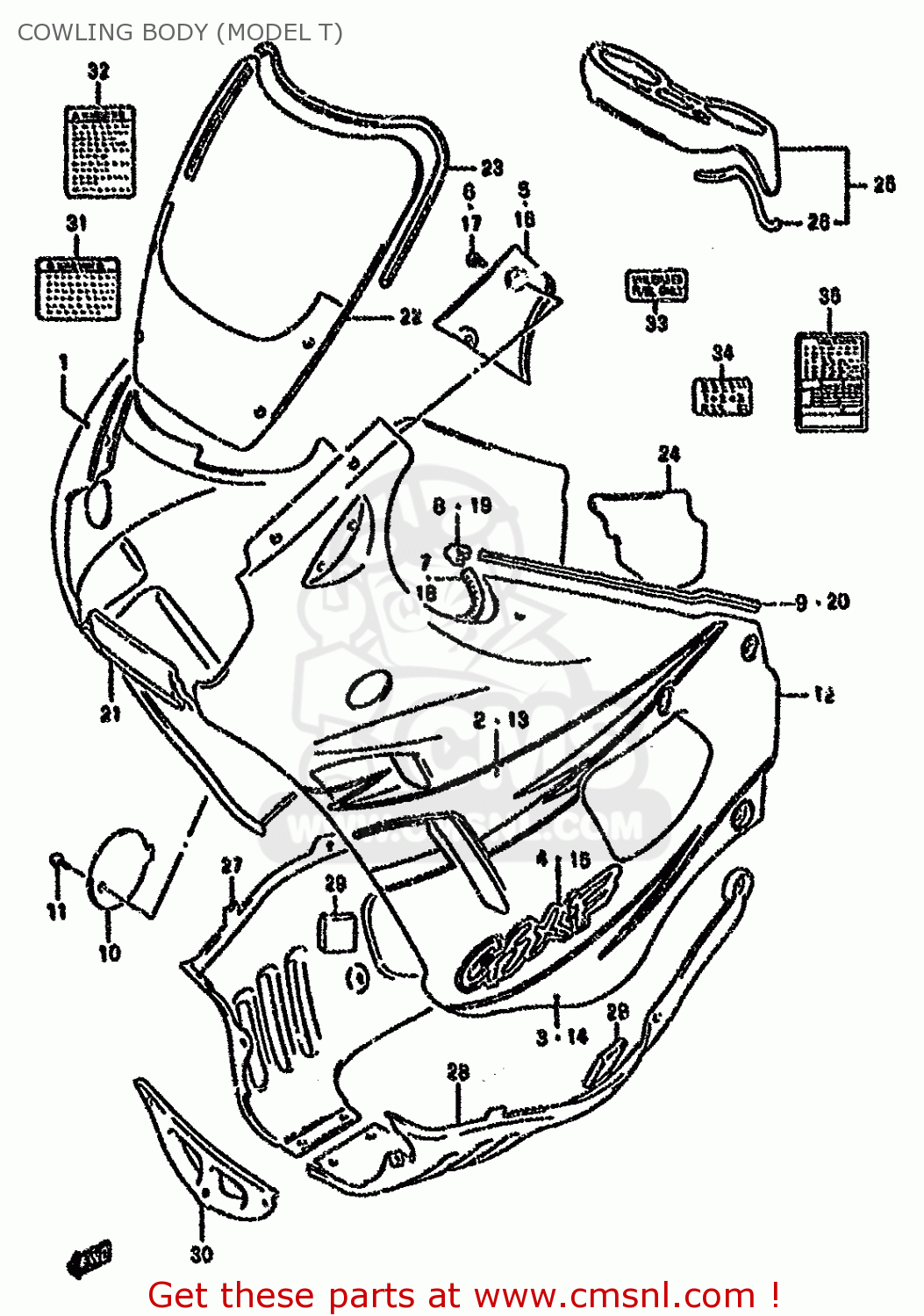

Cowling body (model t) diagram GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

COWLING BODY (MODEL T) GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)
COWLING BODY (MODEL T) GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)
COWLING BODY (MODEL T) GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
9440121CK033J
ref: 1-1
COVER,COWLING,
€ 603.00
1-2
9440121CK0Y98
ref: 1-2
COVER,COWLING,
€ 570.50
2-1
6868521C10Z57
ref: 2-1
FOR 33J
TAPE,BODY COWLING SIDE,UPPER
€ 56.00
2-2
6868521C10Z59
ref: 2-2
FOR Y98
TAPE,BODY COWL SIDE UPR,R
€ 56.00
3-1
6868621C20Z58
ref: 3-1
FOR 33J
TAPE,BODY COWL SIDE LWR,R
€ 51.00
3-2
6868621C20Z61
ref: 3-2
FOR Y98
TAPE,BODY COWLING SIDE,LOWER
€ 61.50
4-1
6868121C30E7G
ref: 4-1
FOR 33J
EMBLEM,BODY COWL SIDE
€ 22.00
4-2
6868121C30E7H
ref: 4-2
FOR Y98
EMBLEM,BODY COWL SIDE
€ 21.50
5-1
9443319C0133J
ref: 5-1
COVER,COWLING METER SIDE,R
9443319C0133J
€ 21.50
5-2
9443319C01Y98
ref: 5-2
COVER,METER SIDE,RIGHT
€ 22.00
6
0354104103
ref: 6
SCREW
0354104103
€ 1.50
7
9463149310
ref: 7
MOLD,COWLING
9463149310
€ 14.00
8
9443819C00
ref: 8
JOINT,MOLDING END
9443819C00
€ 9.50
9
9463519C00
ref: 9
MOLDING
9463519C00
€ 6.00
10-1
9443519C0133J
ref: 10-1
LID,OIL
9443519C0133J
€ 20.50
10-2
9443519C01Y98
ref: 10-2
LID,OIL
€ 21.00
11
0913906078
ref: 11
SCREW(6X10)
0913906078
€ 3.00
12-1
9440221CK033J
ref: 12-1
COVER,COWLING,
€ 649.50
12-2
9440221CK0Y98
ref: 12-2
COVER,COWLING,
€ 603.00
13-1
6869521C10Z57
ref: 13-1
FOR 33J
TAPE,BODY COWLING SIDE,UPPER
€ 52.50
13-2
6869521C10Z59
ref: 13-2
FOR Y98
TAPE,BODY COWLING SIDE,UPPER
€ 64.00
14-1
6869621C20Z58
ref: 14-1
FOR 33J
TAPE,BODY COWLING SIDE,LOWER
€ 81.00
14-2
6869621C20Z61
ref: 14-2
FOR Y98
TAPE,BODY COWL SIDE LWR,L
€ 50.00
15-1
6868121C30E7G
ref: 15-1
FOR 33J
EMBLEM,BODY COWL SIDE
€ 22.00
15-2
6868121C30E7H
ref: 15-2
FOR Y98
EMBLEM,BODY COWL SIDE
€ 21.50
16-1
9444319C0133J
ref: 16-1
COVER,COWLING METER SIDE,L
9444319C0133J
€ 25.50
16-2
9444319C01Y98
ref: 16-2
COVER,METER SIDE,L
€ 20.50
17
0354104103
ref: 17
SCREW
0354104103
€ 1.50
18
9463149310
ref: 18
MOLD,COWLING
9463149310
€ 14.00
19
9443819C00
ref: 19
JOINT,MOLDING END
9443819C00
€ 9.50
20
9463519C00
ref: 20
MOLDING
9463519C00
€ 6.00
21-1
9442119C0133J
ref: 21-1
PANEL,COWLING CTR
9442119C0133J
€ 27.00
21-2
9442119C01Y98
ref: 21-2
PANEL,COWLING CTR
€ 22.00
22
9461020C60
ref: 22
WINDSCREEN
€ 236.50
23
9463118D01
ref: 23
MOLDING,WINDSCREEN
9463118D01
€ 12.50
24-1
9457620C00
ref: 24-1
CUSHION,COWLING,R
9457620C00
€ 6.00
24-2
9458620C00
ref: 24-2
CUSHION,COWLING,L
€ 6.00
25
9442020C02
ref: 25
COVER,METER
9442020C02
€ 39.00
26
9463520C00
ref: 26
MOLDING,METER COVER
€ 9.00
27-1
9447119C001TU
ref: 27-1
FOR 33J
COVER,COWLING,UNDER,RIGHT
€ 141.00
27-2
9447119C0033J
ref: 27-2
FOR Y98
COVER,COWLING UNDER,R
€ 143.00
28-1
9448119C001TU
ref: 28-1
FOR 33J
COVER,COWLING,UNDER,LEFT
€ 159.50
28-2
9448119C0033J
ref: 28-2
FOR Y98
COVER,COWLING UNDER,L
9448119C0033J
€ 143.00
29
9447548B10
ref: 29
CUSHION,UNDER COWLING
9447548B10
€ 6.50
30
9447519C01
ref: 30
COVER,COWLING UNDER FR
9447519C01
€ 23.50
31-1
6831940C00
ref: 31-1
LABEL
6831940C00
€ 8.00
31-2
6831940C20
ref: 31-2
E18,E22
LABEL, WARNING SAFETY
€ 8.00
31-3
6831940C30
ref: 31-3
E4,E34
LABEL, WARNING SAFETY
€ 8.50
31-4
6831940C40
ref: 31-4
E34
LABEL, WARNING SAFETY
€ 8.00
31-5
6831940C51
ref: 31-5
E34
LABEL
€ 8.00
32-1
6861248B00
ref: 32-1
LABEL (WARNING SCREEN)
6861248B00
€ 6.50
32-2
6861248B10
ref: 32-2
E4,E34
LABEL (WARNING SCREEN)
6861248B10
€ 6.50
32-3
6861248B20
ref: 32-3
E18,E22
LABEL (WARNING,SCREEN)
6861248B20
€ 6.50
33-1
6862317D00
ref: 33-1
LABEL,CAUTION
6862317D00
€ 4.00
33-2
8693273060
ref: 33-2
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
34
6834120C00
ref: 34
E24
LABEL (REAR SHOCK ABSORBER)
€ 2.50
35-1
6833220C10
ref: 35-1
LABEL (TIRE AIR PRESSURE)
€ 4.00
35-2
6833220C30
ref: 35-2
E4
LABEL, TIRE AIR
€ 0.00
32-2
6862317D00
ref: 32-2
E2
LABEL,CAUTION
6862317D00
€ 4.00
34-1
8693273060
ref: 34-1
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
34-2
6862317D00
ref: 34-2
E2
LABEL,CAUTION
6862317D00
€ 4.00
30-2
6861248B10
ref: 30-2
E4,E21
LABEL (WARNING SCREEN)
6861248B10
€ 6.50
30-3
6861248B20
ref: 30-3
E18,E22,E39
LABEL (WARNING,SCREEN)
6861248B20
€ 6.50
31
1196782000
ref: 31
E2
LABEL,ASBESTOS WARNING
€ 2.00
32-1
8693273060
ref: 32-1
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
32-2
6862317D00
ref: 32-2
E2
LABEL,CAUTION
6862317D00
€ 4.00
41
9463519C00
ref: 41
MOLDING
9463519C00
€ 6.00
42
9443819C00
ref: 42
JOINT,MOLDING END
9443819C00
€ 9.50
43
0913906029
ref: 43
SCREW(6X25)
0913906029
€ 5.00
44
0916006036
ref: 44
WASHER(6.5X18X1.5)
0916006036
€ 1.50
45
0913906030
ref: 45
SCREW(6X16)
0913906030
€ 3.50
46
0916106021
ref: 46
WASHER(6.3X16X1.5)
0916106021
€ 2.50
47
9456019C00
ref: 47
BRACKET,COWLING UPR,R
9456019C00
€ 40.50
48
9457019C00
ref: 48
BRACKET,COWLING UPR,L
9457019C00
€ 40.50
49
0912506055
ref: 49
SCREW(6X25)
0912506055
€ 3.00
50
9457319C00
ref: 50
NUT,COWLING SIDE BRKT
9457319C00
€ 8.00
51
0913906029
ref: 51
SCREW(6X25)
0913906029
€ 5.00
52
0916006036
ref: 52
WASHER(6.5X18X1.5)
0916006036
€ 1.50
53
0918006011
ref: 53
SPACER (6.1X9X9)
0918006011
€ 2.00
54
0932009016
ref: 54
CUSHION
0932009016
€ 2.50
55-1
9447119C0022R
ref: 55-1
FOR 2ME
COVER,COWLING UNDER,R
9447119C0022R
€ 159.00
55-2
9447119C0028V
ref: 55-2
FOR F72
COVER,COWLING,UNDER,RIGHT
9447119C0028V
€ 144.00
55-3
9447119C0033J
ref: 55-3
FOR 3CH
COVER,COWLING UNDER,R
€ 143.00
56-1
9448119C0022R
ref: 56-1
FOR 2ME
COVER, UNDER LH (WHITE)
€ 156.00
56-2
9448119C0028V
ref: 56-2
FOR F72
COVER,COWLING,UNDER,LEFT
€ 124.00
56-3
9448119C0033J
ref: 56-3
FOR 3CH
COVER,COWLING UNDER,L
9448119C0033J
€ 143.00
57
0913906042
ref: 57
SCREW(6X30)
0913906042
€ 7.50
58
0916006036
ref: 58
WASHER(6.5X18X1.5)
0916006036
€ 1.50
59
9453119C00
ref: 59
BRACKET,COWLING LWR,R
9453119C00
€ 8.00
60
9453219C00
ref: 60
BRACKET,COWLING LWR,L
9453219C00
€ 6.00
61
0932010015
ref: 61
CUSHION
0932010015
€ 2.50
62
9459019C00
ref: 62
NUT,COWLING,FR
9459019C00
€ 8.00
63
0113706165
ref: 63
BOLT
€ 2.50
64
0913905025
ref: 64
SCREW(5X14)
0913905025
€ 2.00
65
0916105017
ref: 65
WASHER(5.2X14X1.5)
0916105017
€ 3.00
66
9448432B00
ref: 66
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
67
0913906029
ref: 67
SCREW(6X25)
0913906029
€ 5.00
68
0916006036
ref: 68
WASHER(6.5X18X1.5)
0916006036
€ 1.50
69
0918006116
ref: 69
SPACER(6.1X8X14.5)
0918006116
€ 2.00
70
0932009016
ref: 70
CUSHION
0932009016
€ 2.50
71
0913606081
ref: 71
SCREW(6X20)
0913606081
€ 3.00
72
0918006011
ref: 72
SPACER (6.1X9X9)
0918006011
€ 2.00
73
0932009016
ref: 73
CUSHION
0932009016
€ 2.50
74
0214215165
ref: 74
SCREW, LOWER
0214215165
€ 2.50
75
9458019C00
ref: 75
BRACKET,FR UNDER COWL
9458019C00
€ 6.50
76
0214205164
ref: 76
SCREW
0214205164
€ 2.50
77
0916105017
ref: 77
WASHER(5.2X14X1.5)
0916105017
€ 3.00
78
9448432B00
ref: 78
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
79
9447519C01
ref: 79
COVER,COWLING UNDER FR
9447519C01
€ 23.50
87-1
6861248B00
ref: 87-1
LABEL (WARNING SCREEN)
6861248B00
€ 6.50
87-2
6861248B10
ref: 87-2
E4
LABEL (WARNING SCREEN)
6861248B10
€ 6.50
80
9457320C00
ref: 80
BALANCER SHEET,COWLING,R
9457320C00
€ 22.50
81
9458320C00
ref: 81
BALANCER SHEET,COWLING,L
9458320C00
€ 16.00
82
9457620C00
ref: 82
CUSHION,COWLING,R
9457620C00
€ 6.00
83
9458620C00
ref: 83
CUSHION,COWLING,L
€ 6.00
84
9457420C00
ref: 84
SHEET,COWLING BALANCER,R
9457420C00
€ 19.00
85
9458420C00
ref: 85
SHEET,COWLING BALANCER
€ 24.50
86
9463920C00
ref: 86
CUSHION,UNDER COWLING RR
9463920C00
€ 2.50
88-1
6831940C00
ref: 88-1
LABEL
6831940C00
€ 8.00
88-2
6831940C20
ref: 88-2
E22,E39
LABEL, WARNING SAFETY
€ 8.00
88-3
6831940C30
ref: 88-3
E4,E21
LABEL, WARNING SAFETY
€ 8.50
88-4
6831940C40
ref: 88-4
E34
LABEL, WARNING SAFETY
€ 8.00
88-5
6831940C51
ref: 88-5
E53
LABEL
€ 8.00
