TURNSIGNAL LAMP (MODEL T)

GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

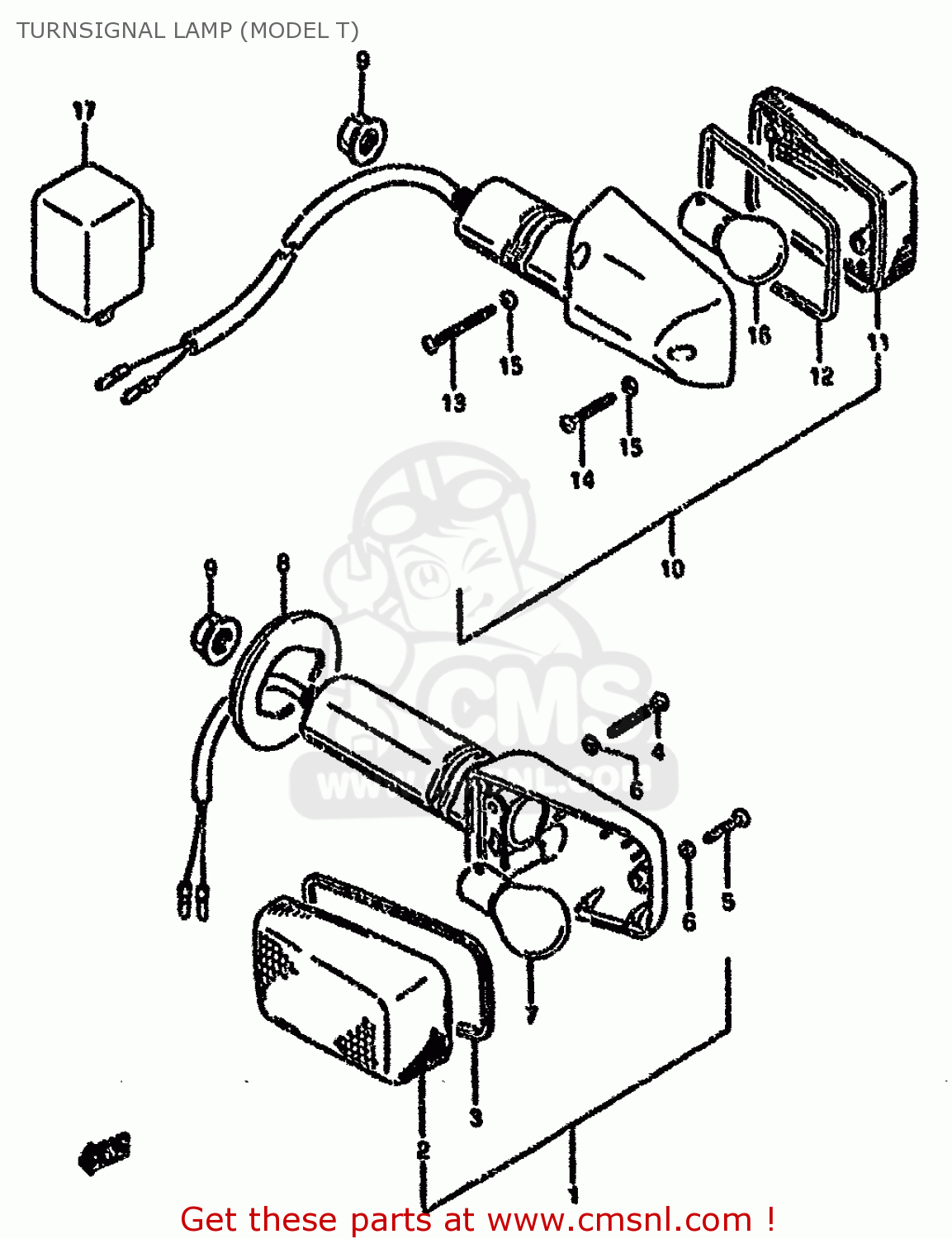

Turnsignal lamp (model t) diagram GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

TURNSIGNAL LAMP (MODEL T) GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)
TURNSIGNAL LAMP (MODEL T) GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)
TURNSIGNAL LAMP (MODEL T) GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
3560101D10
ref: 1
LAMP ASSY,FR TURN SIGNAL
3560101D10
€ 70.50
2
3561217C20
ref: 2
LENS
3561217C20
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
3561327A00
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
3562327A00
€ 1.50
5
3572540511
ref: 5
SCREW
3572540511
€ 1.50
6
3562727A02
ref: 6
GASKET (NAS)
3562727A02
€ 1.50
7
0947112045
ref: 7
BULB(12V21W)
0947112045
€ 5.00
8
3567427A01
ref: 8
GROMMET
3567427A01
€ 13.50
9
0831610103
ref: 9
NUT
0831610103
€ 2.00
10-1
3560314D10
ref: 10-1
LAMP ASSY,RR TURNSIGNAL
3560314D10
€ 88.00
10-2
3560314D20
ref: 10-2
E18,E22
LAMP ASSY,RR TURNSIGNAL
3560314D20
€ 74.00
11
3565217C20
ref: 11
LENS
3565217C20
€ 6.50
12
3561327A00
ref: 12
GASKET (NAS)
3561327A00
€ 3.00
13
3562327A00
ref: 13
SCREW(3X30)
3562327A00
€ 1.50
14
3572540511
ref: 14
SCREW
3572540511
€ 1.50
15
3562727A02
ref: 15
GASKET (NAS)
3562727A02
€ 1.50
16
0947112045
ref: 16
BULB(12V21W)
0947112045
€ 5.00
17
3861045D01
ref: 17
RELAY ASSY,TURNSIGNAL LAMP
3861045D01
€ 68.50
16
0947112045
ref: 16
BULB(12V21W)
0947112045
€ 5.00
17
3861031X50
ref: 17
MODEL K/L/M/N 38610-
RELAY ASSY,TURNSIGNAL
3861031X50
€ 54.50
18-1
3861045091
ref: 18-1
MODEL K/L/M/N E22
RELAY ASSY,TUR
€ 67.50
18-2
3861045D01
ref: 18-2
MODEL P/R 38610-45D0
RELAY ASSY,TURNSIGNAL LAMP
3861045D01
€ 68.50
