HANDLE SWITCH

GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

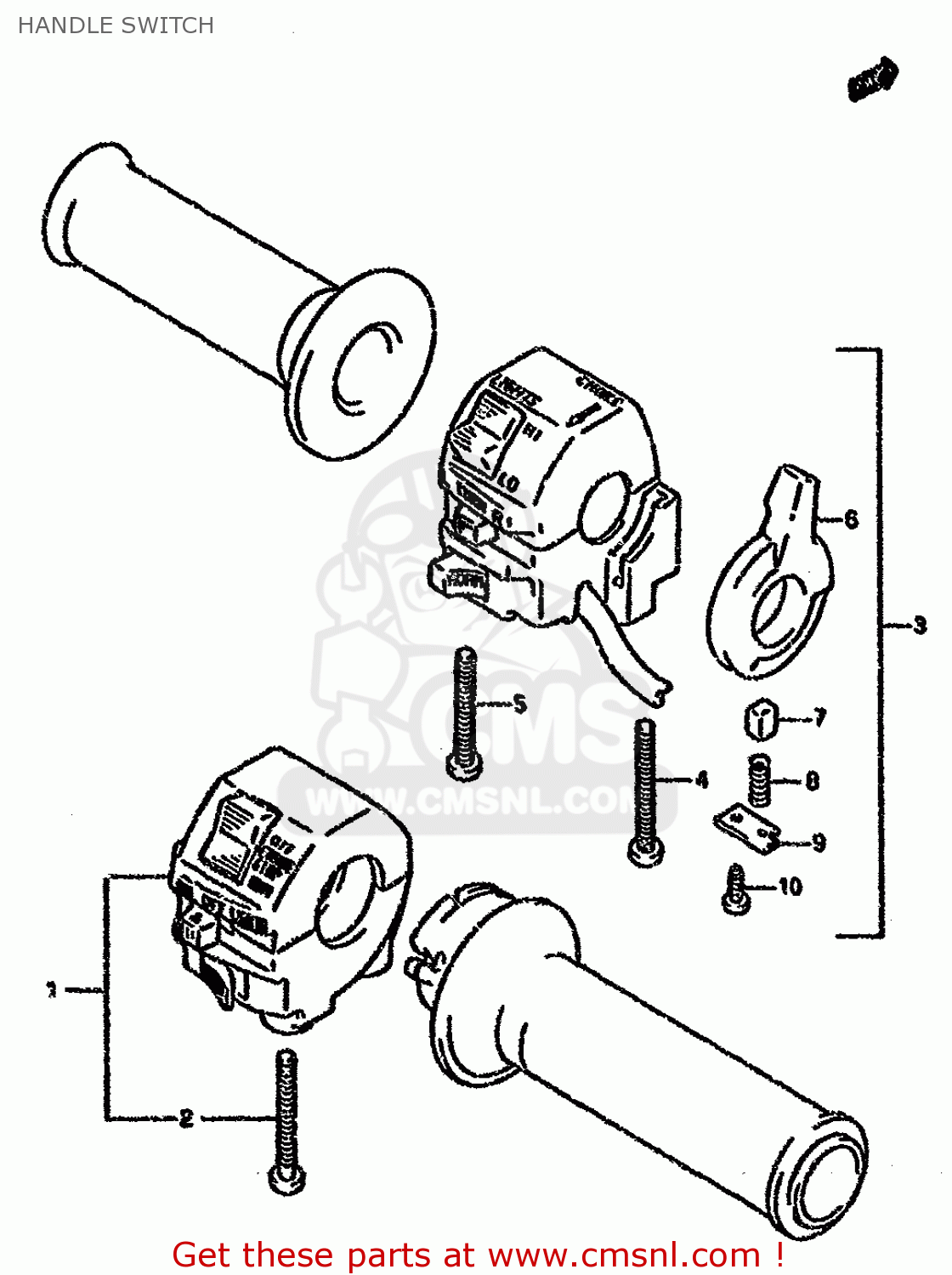

Handle switch diagram GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

HANDLE SWITCH GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)
HANDLE SWITCH GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)
HANDLE SWITCH GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
3720045C02
ref: 1-1
37200-17C03
SWITCH ASSY,HA
3720045C02
€ 129.00
1-2
3720045C21
ref: 1-2
MODEL N/P/R/S/T E24,
SWITCH ASSEMBLY,HANDLE,RIGHT
€ 110.00
2
0211205455
ref: 2
SCREW, 5X45
0211205455
€ 4.00
3-1
3740032B01
ref: 3-1
SWITCH ASSY
€ 146.00
3-2
3740047B31
ref: 3-2
E30
SWITCH ASSY, HANDLE,LH
€ 81.00
4
0211205455
ref: 4
SCREW, 5X45
0211205455
€ 4.00
5
0211205405
ref: 5
SCREW
€ 2.00
6
3748130B01
ref: 6
LEVER,CHOKE
3748130B01
€ 13.00
7
3748230B00
ref: 7
PIECE,SLIDE
3748230B00
€ 4.00
8
3748330B00
ref: 8
SPRING
3748330B00
€ 7.50
9
3748630B00
ref: 9
PLATE
3748630B00
€ 3.00
10
0351104123
ref: 10
SCREW, TRUNK BOX
€ 1.50
9-1
3710026D02
ref: 9-1
LOCK ASSEMBLY,STEERING
3710026D02
€ 134.00
9-2
3710026D11
ref: 9-2
E24
LOCK ASSY,STEERING
€ 103.50
10
0913906026
ref: 10
SCREW(6X18)
0913906026
€ 2.50
11
3774024A00
ref: 11
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
12
0944306005
ref: 12
SPRING
0944306005
€ 6.00
13
3784044X50
ref: 13
SWITCH ASSY,SIDE STAND
3784044X50
€ 75.50
14
0155006203
ref: 14
BOLT
0155006203
€ 2.50
15
3874024X50
ref: 15
RELAY ASSY
3874024X50
€ 37.50
16
3850019C01
ref: 16
HORN ASSY
3850019C01
€ 54.00
17
0155006163
ref: 17
BOLT
0155006163
€ 2.50
18
3714626D10
ref: 18
OPT
KEY,BLANK
3714626D10
€ 41.50
14
3774024A00
ref: 14
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
15
0944306005
ref: 15
SPRING
0944306005
€ 6.00
16
3784044X50
ref: 16
37840-20A11
SWITCH ASSY,SIDE STAND
3784044X50
€ 75.50
17
0211236203
ref: 17
MODEL K/L/M/N/P
SCREW
€ 2.00
17A
0155006203
ref: 17A
MODEL R
BOLT
0155006203
€ 2.50
18
3874024X50
ref: 18
38740-24B10
RELAY ASSY
3874024X50
€ 37.50
19-1
3850019C00
ref: 19-1
MODEL K/L/M/N
HORN ASSEMBLY
€ 54.00
19-2
3850019C01
ref: 19-2
MODEL P/R
HORN ASSY
3850019C01
€ 54.00
20-1
0111706165
ref: 20-1
MODEL K/L/M/N/P
BOLT
€ 2.50
20-2
0155006163
ref: 20-2
MODEL R
BOLT
0155006163
€ 2.50
21
3685219C01
ref: 21
E34
WIRE, HORN RELAY
€ 0.00
22
3874024X50
ref: 22
E34 38640-06B10
RELAY ASSY
3874024X50
€ 37.50
23
3862035301
ref: 23
E34 38621-22200
BRACKET,TURN RELAY
€ 6.00
24
0211236123
ref: 24
E34
BOLT
€ 2.00
25-1
3714603A80
ref: 25-1
OPT,MODEL K/L/M/N/P
KEY,BLANK
€ 41.50
25-2
3714626D10
ref: 25-2
OPT,MODEL R
KEY,BLANK
3714626D10
€ 41.50
