STARTER CLUTCH

GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

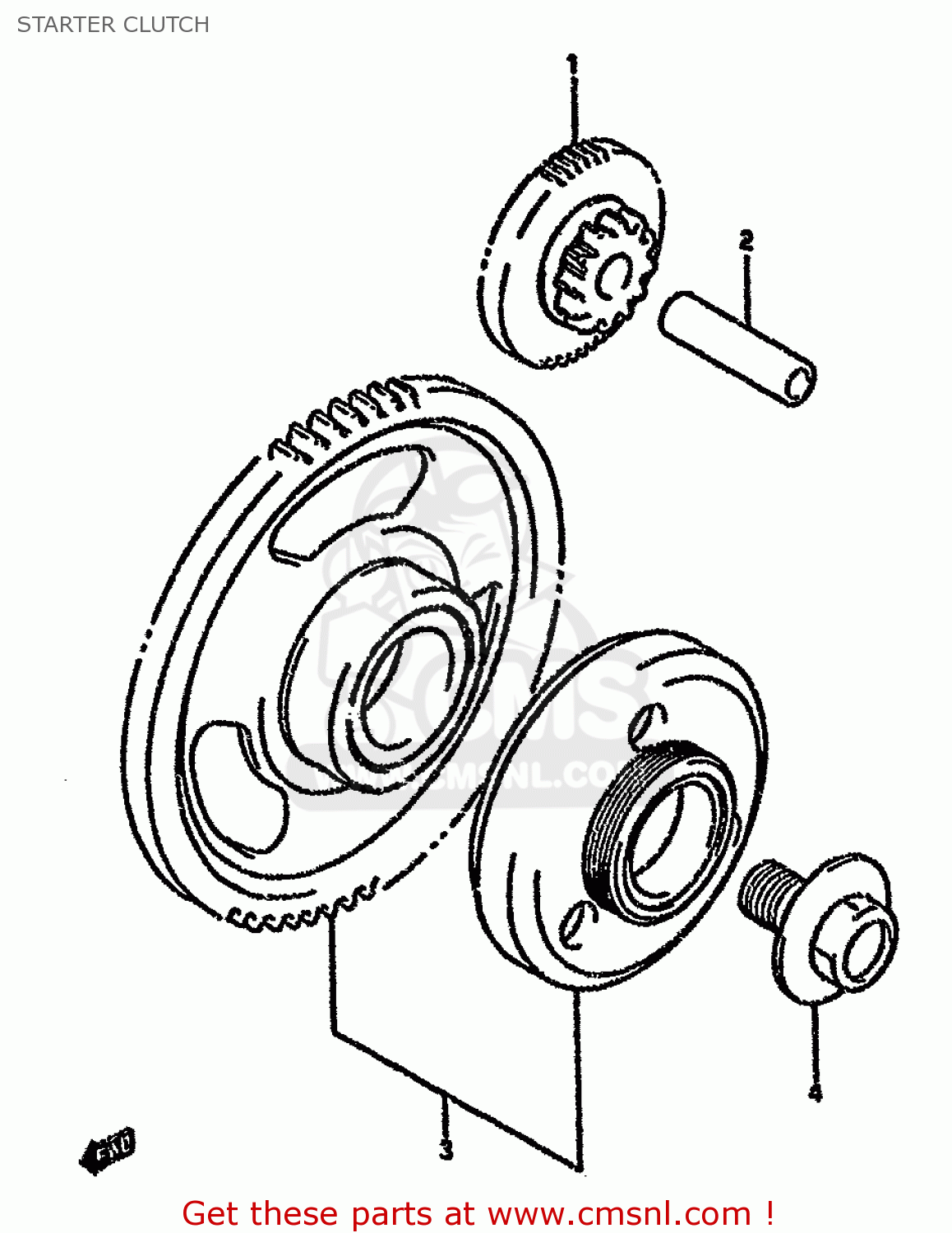

Starter clutch diagram GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

STARTER CLUTCH GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

STARTER CLUTCH GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1261127A01
ref: 1

GEAR,STARTER IDLE

€ 52.00

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3-1

1260017811
ref: 3-1
MODEL K/L/M/N/P 1260

CLUTCH SET,STARTER

€ 377.50

3-2

1260048811
ref: 3-2
MODEL R/S/T

CLUTCH SET,STARTER

€ 377.50

4

0910314005
ref: 4

BOLT(14X21)

€ 17.00
