FRAME (MODEL S/T)

GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

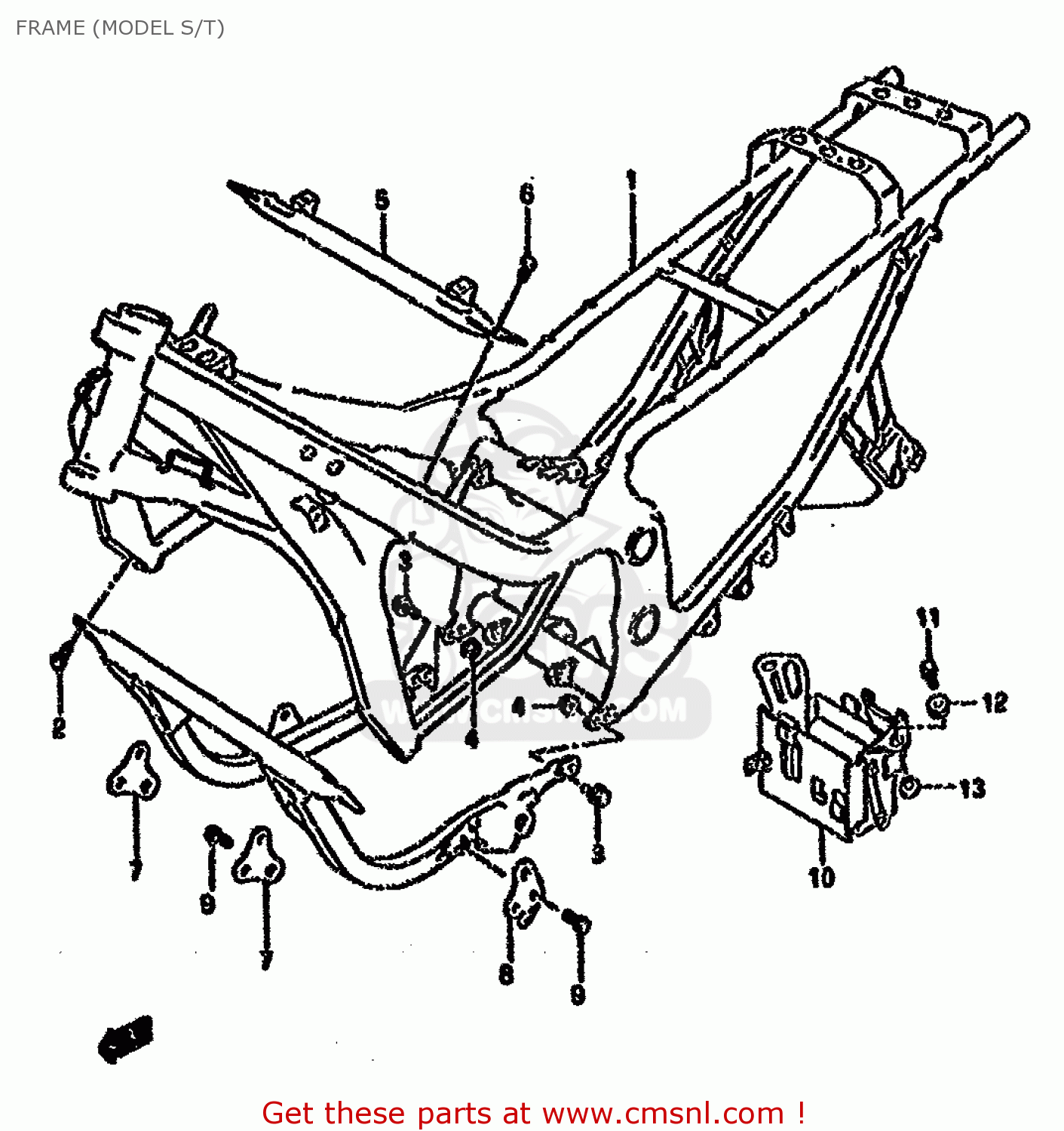

Frame (model s/t) diagram GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

FRAME (MODEL S/T) GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)
FRAME (MODEL S/T) GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)
FRAME (MODEL S/T) GSX750F 1996 (T) (E02 E04 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
4110120850019
ref: 1
FRAME SET
€ 1,564.50
2
0157008253
ref: 2
BOLT
€ 2.50
3
0155008303
ref: 3
BOLT
0155008303
€ 3.00
4
0831931085
ref: 4
NUT
€ 2.50
5
4175034C00
ref: 5
TUBE,FRAME BRIDGE NO.2
4175034C00
€ 44.00
6
0910308266
ref: 6
BOLT(8X20)
0910308266
€ 2.50
7
4191119C00019
ref: 7
PLATE,ENG MTG NO.1
€ 5.00
8
4194020C00019
ref: 8
PLATE,ENG MTG NO.2,L
€ 10.00
9
0157008163
ref: 9
BOLT, UPPER
€ 2.00
10
4154020C01
ref: 10
HOLDER,BATTERY
€ 34.50
11
0157006303
ref: 11
BOLT
€ 2.00
12
0932008021
ref: 12
CUSHION
0932008021
€ 4.00
13
4157047D00
ref: 13
SPACER COMP,BATTERY
€ 3.00
7
4175034C00
ref: 7
41750-19C00
TUBE,FRAME BRIDGE NO.2
4175034C00
€ 44.00
8-1
0113708165
ref: 8-1
MODEL K
BOLT
€ 2.00
8-2
0157008167
ref: 8-2
MODEL L/M/N/P
BOLT
0157008167
€ 2.50
8-3
0910308266
ref: 8-3
MODEL R
BOLT(8X20)
0910308266
€ 2.50
9-1
4191119C00291
ref: 9-1
MODEL K/L/M/N/P
PLATE,ENGINE MOUNTING
€ 5.00
9-2
4191119C00019
ref: 9-2
MODEL R
PLATE,ENG MTG NO.1
€ 5.00
10-1
4194020C00291
ref: 10-1
MODEL K/L/M/N/P
PLATE,ENGINE MOUNTING
€ 10.00
10-2
4194020C00019
ref: 10-2
MODEL R
PLATE,ENG MTG NO.2,L
€ 10.00
11-1
0113708165
ref: 11-1
MODEL K
BOLT
€ 2.00
11-2
0157008167
ref: 11-2
MODEL L/M/N/P/R
BOLT
0157008167
€ 2.50
12
4154020C01
ref: 12
HOLDER,BATTERY
€ 34.50
13
0913706014
ref: 13
BOLT L:30
€ 2.00
14-1
4157019C00
ref: 14-1
MODEL K/L/M/N/P
PLATE,BATTERY HOLDER
€ 3.50
14-2
4157047D00
ref: 14-2
MODEL R
SPACER COMP,BATTERY
€ 3.00
15
0932008021
ref: 15
CUSHION
0932008021
€ 4.00
