CANISTER (CALIFORNIA ONLY)

GSX750F KATANA 1990 (L) USA (E03)

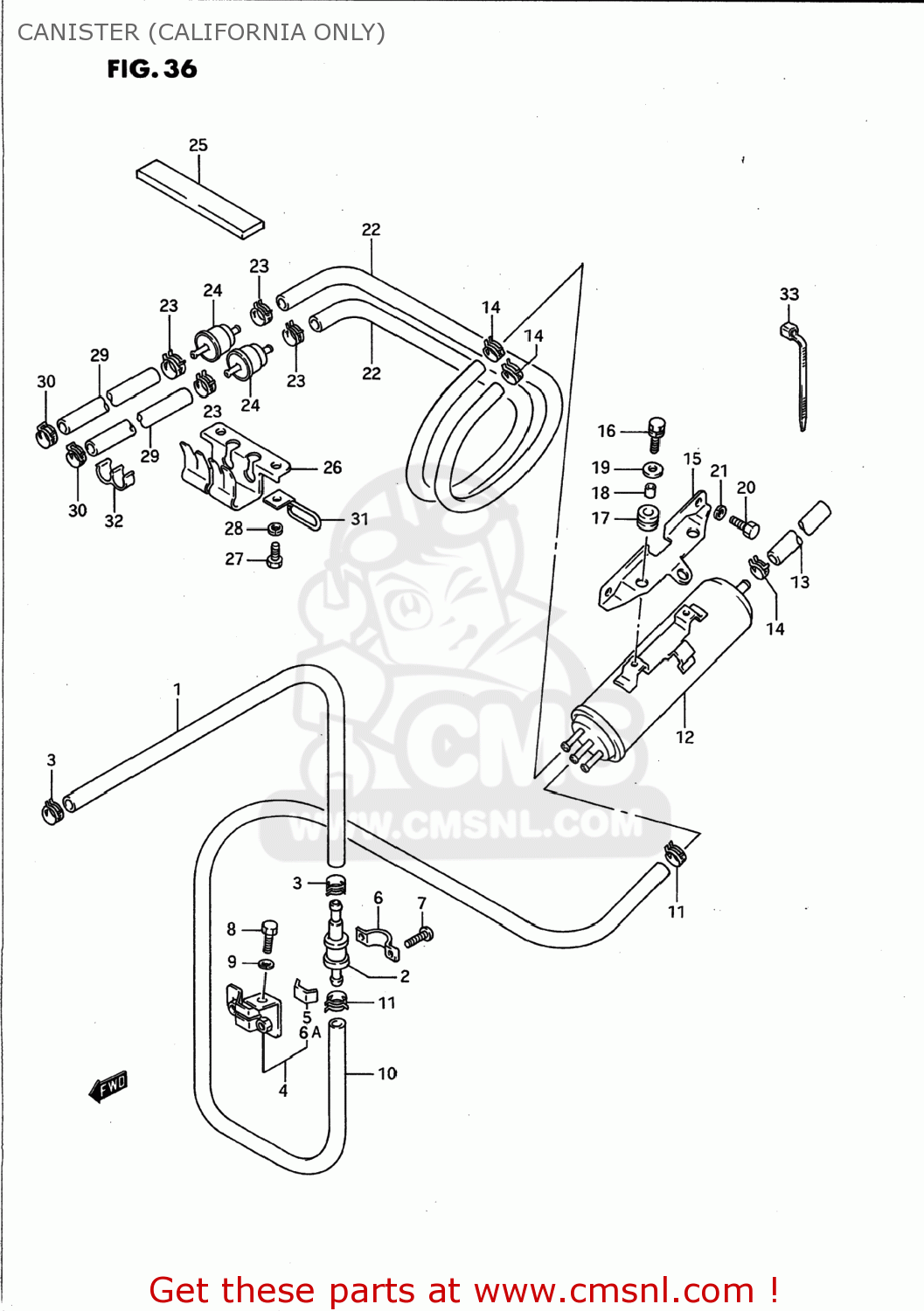

Canister (california only) diagram GSX750F KATANA 1990 (L) USA (E03)

CANISTER (CALIFORNIA ONLY) GSX750F KATANA 1990 (L) USA (E03)
CANISTER (CALIFORNIA ONLY) GSX750F KATANA 1990 (L) USA (E03)
CANISTER (CALIFORNIA ONLY) GSX750F KATANA 1990 (L) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
093545411500B
ref: 1
09355-54115-00B
HOSE
€ 48.50
2
4424038A00
ref: 2
VALVE,FUEL TANK BREATHER
4424038A00
€ 35.00
3-1
0940111410
ref: 3-1
09401-11413
(CA) CLIP
0940111410
€ 2.50
3-2
0940111413
ref: 3-2
CLIP
0940111413
€ 2.50
4
4489019C00
ref: 4
BRACKET COMP,TANK BREATHER
€ 5.00
5
4489424A00
ref: 5
CUSHION
4489424A00
€ 1.50
6
4489224A00
ref: 6
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
6A
4489424A00
ref: 6A
CUSHION
4489424A00
€ 1.50
7
0214204103
ref: 7
02142-0410A
SCREW
0214204103
€ 1.50
8-1
0150005107
ref: 8-1
BOLT
€ 2.50
8-2
0157005103
ref: 8-2
01570-0510B
BOLT
0157005103
€ 2.00
9
0832101057
ref: 9
08321-0105A
WASHER,LOCK
0832101057
€ 2.00
10
4443420C00
ref: 10
HOSE,BREATHER VALVE & CANISTER
€ 0.00
11-1
0940111410
ref: 11-1
09401-11413
(CA) CLIP
0940111410
€ 2.50
11-2
0940111413
ref: 11-2
CLIP
0940111413
€ 2.50
12
1721020C00
ref: 12
CANISTER ASSEMBLY,CHARCOAL
€ 185.50
13
0935470123600
ref: 13
44421-12FR0
HOSE (7X12X600)
€ 26.00
14-1
0940112406
ref: 14-1
09401-11415
CLAMP
€ 2.50
14-2
0940111407
ref: 14-2
09401-11415
CLIP
0940111407
€ 2.50
15
4487119C00
ref: 15
BRACKET,CANISTER MOUNT
€ 6.50
16-1
0157006167
ref: 16-1
BOLT
0157006167
€ 2.50
16-2
0157006163
ref: 16-2
01570-0616A
BOLT
0157006163
€ 2.50
17-1
0932008007
ref: 17-1
09320-08021
CUSHION
0932008007
€ 4.00
17-2
0932008021
ref: 17-2
CUSHION
0932008021
€ 4.00
18
0918006038
ref: 18
SPACER(6.1X9X7.5)
0918006038
€ 2.00
19-1
0916006012
ref: 19-1
09160-06054
WASHER(6,5X22X1.6)
€ 2.00
19-2
0916006054
ref: 19-2
WASHER(6.5X22X1.6)
0916006054
€ 2.00
20-1
0150006167
ref: 20-1
BOLT
0150006167
€ 3.00
20-2
0157006163
ref: 20-2
01570-0616A
BOLT
0157006163
€ 2.50
21
0832101067
ref: 21
WASHER,LOCK
0832101067
€ 2.50
22
0935954111600
ref: 22
HOSE(5.4X11.4X600)
0935954111600
€ 22.00
23-1
0940111410
ref: 23-1
09401-11413
(CA) CLIP
0940111410
€ 2.50
23-2
0940111413
ref: 23-2
CLIP
0940111413
€ 2.50
24
4425048B00
ref: 24
VALVE,CANISTER PURGE
€ 39.50
25-1
4425519C00
ref: 25-1
47451-38A01
CUSHION,COVER SIDE
€ 3.00
25-2
1779829E40
ref: 25-2
47451-38A01
CUSHION,COVER SIDE
€ 3.00
26
4488120C00
ref: 26
HOLDER,CPV
€ 12.50
27-1
0150006107
ref: 27-1
BOLT
0150006107
€ 2.00
27-2
0157006103
ref: 27-2
01570-0610A
BOLT
€ 2.50
28
0832101067
ref: 28
WASHER,LOCK
0832101067
€ 2.50
29
0935454115600
ref: 29
09355-54115-600
HOSE (5.4X11.4X600)
€ 20.00
30
0940110409
ref: 30
CLIP
0940110409
€ 2.50
31-1
4448020C00
ref: 31-1
44480-20C01
GUIDE,HOSE
€ 9.00
31-2
4448020C01
ref: 31-2
GUIDE,HOSE
€ 9.00
32
0940800043
ref: 32
CLAMP
€ 2.00
