FRAME
GSX750F KATANA 1990 (L) USA (E03)

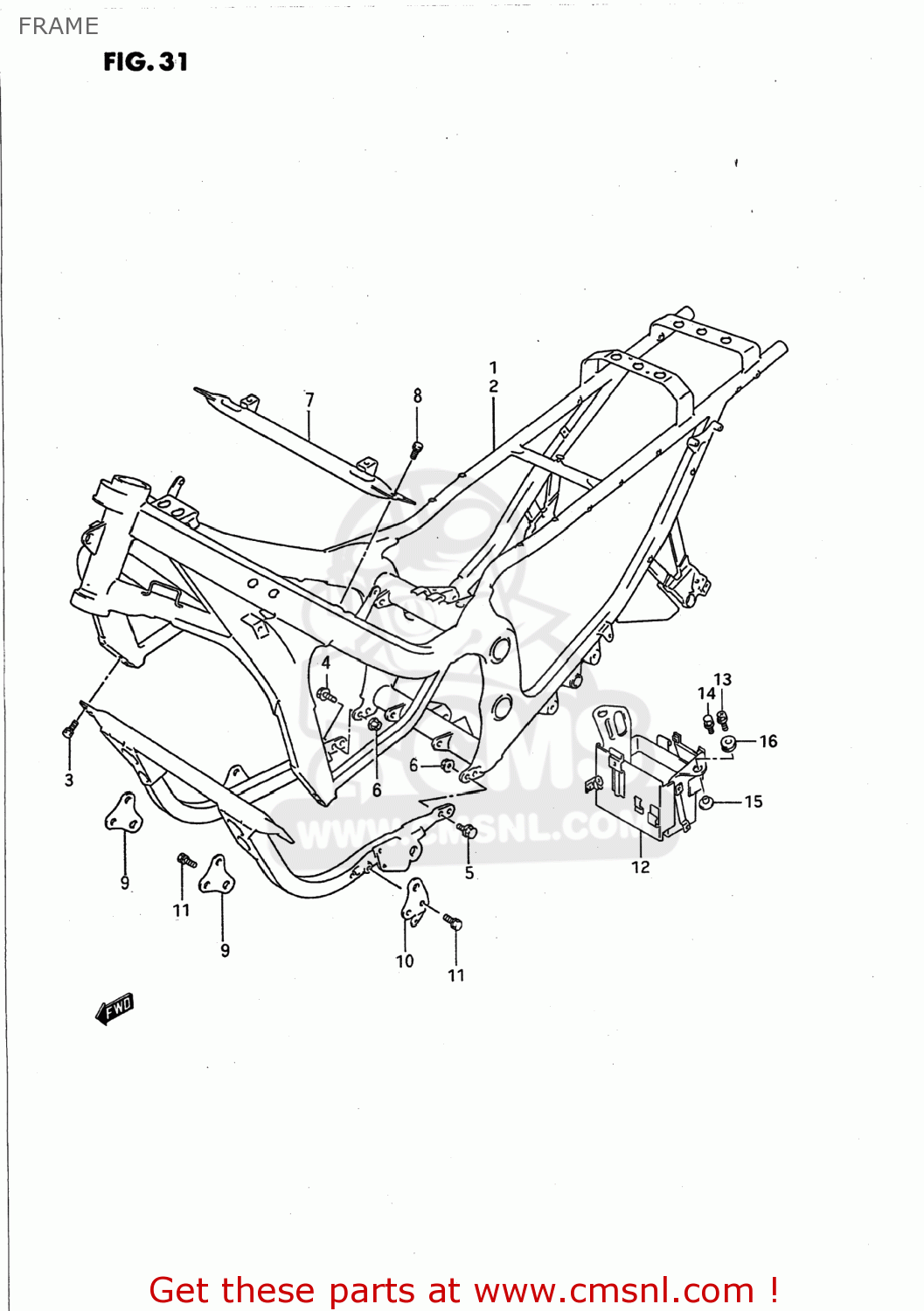

Frame diagram GSX750F KATANA 1990 (L) USA (E03)
FRAME GSX750F KATANA 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110120810291
ref: 1-1
41101-20850-291
FRAME
€ 1,564.50
1-2
4110120811291
ref: 1-2
41101-20850-291
FRAME
€ 1,564.50
1-3
4110120850019
ref: 1-3
FRAME SET
€ 1,564.50
2-1
4110120820291
ref: 2-1
41101-20821-291
FRAME
€ 578.50
2-2
4110120821291
ref: 2-2
FRAME SET
€ 578.50
2-3
4110120821019
ref: 2-3
FRAME SET
€ 981.50
3-1
0113708205
ref: 3-1
01570-0820A
BOLT
€ 2.00
3-2
0150008257
ref: 3-2
BOLT
€ 2.50
3-3
0157008253
ref: 3-3
01570-0825A
BOLT
€ 2.50
4
0151708254
ref: 4
01550-0825A
BOLT
€ 2.50
5-1
0151708304
ref: 5-1
01550-0830A
BOLT
€ 3.00
5-2
0155008303
ref: 5-2
01550-0830A
BOLT
€ 3.00
6
0831931085
ref: 6
08319-3108A
NUT
€ 2.50
7-1
4175019C00
ref: 7-1
41750-34C00
TUBE,FRAME
€ 44.00
7-2
4175034C00
ref: 7-2
TUBE,FRAME BRIDGE NO.2
€ 44.00
8-1
0113708165
ref: 8-1
01570-0816A
BOLT
€ 2.00
8-2
0157008167
ref: 8-2
BOLT
€ 2.50
8-3
0910308266
ref: 8-3
BOLT(8X20)
€ 2.50
9-1
4191119C00291
ref: 9-1
41911-19C00-019
PLATE,ENGINE MOUNTING
€ 5.00
9-2
4191119C00019
ref: 9-2
PLATE,ENG MTG NO.1
€ 5.00
10-1
4194020C00291
ref: 10-1
41940-20C00-019
PLATE,ENGINE MOUNTING
€ 10.00
10-2
4194020C00019
ref: 10-2
PLATE,ENG MTG NO.2,L
€ 10.00
11-1
0113708165
ref: 11-1
01570-0816A
BOLT
€ 2.00
11-2
0157008167
ref: 11-2
BOLT
€ 2.50
11-3
0157008163
ref: 11-3
01570-0816A
BOLT, UPPER
€ 2.00
12
4154020C01
ref: 12
HOLDER,BATTERY
€ 34.50
13
0913706014
ref: 13
01570-0630A
BOLT L:30
€ 2.00
14
0157006303
ref: 14
01570-0630A
BOLT
€ 2.00
15-1
4157019C00
ref: 15-1
09169-06065
PLATE,BATTERY HOLDER
€ 3.50
15-2
4157047D00
ref: 15-2
09169-06065
SPACER COMP,BATTERY
€ 3.00
16-1
0932008007
ref: 16-1
09320-08021
CUSHION
€ 4.00
16-2
0932008021
ref: 16-2
CUSHION
€ 4.00
