CYLINDER HEAD COVER
GSX750F KATANA 1990 (L) USA (E03)

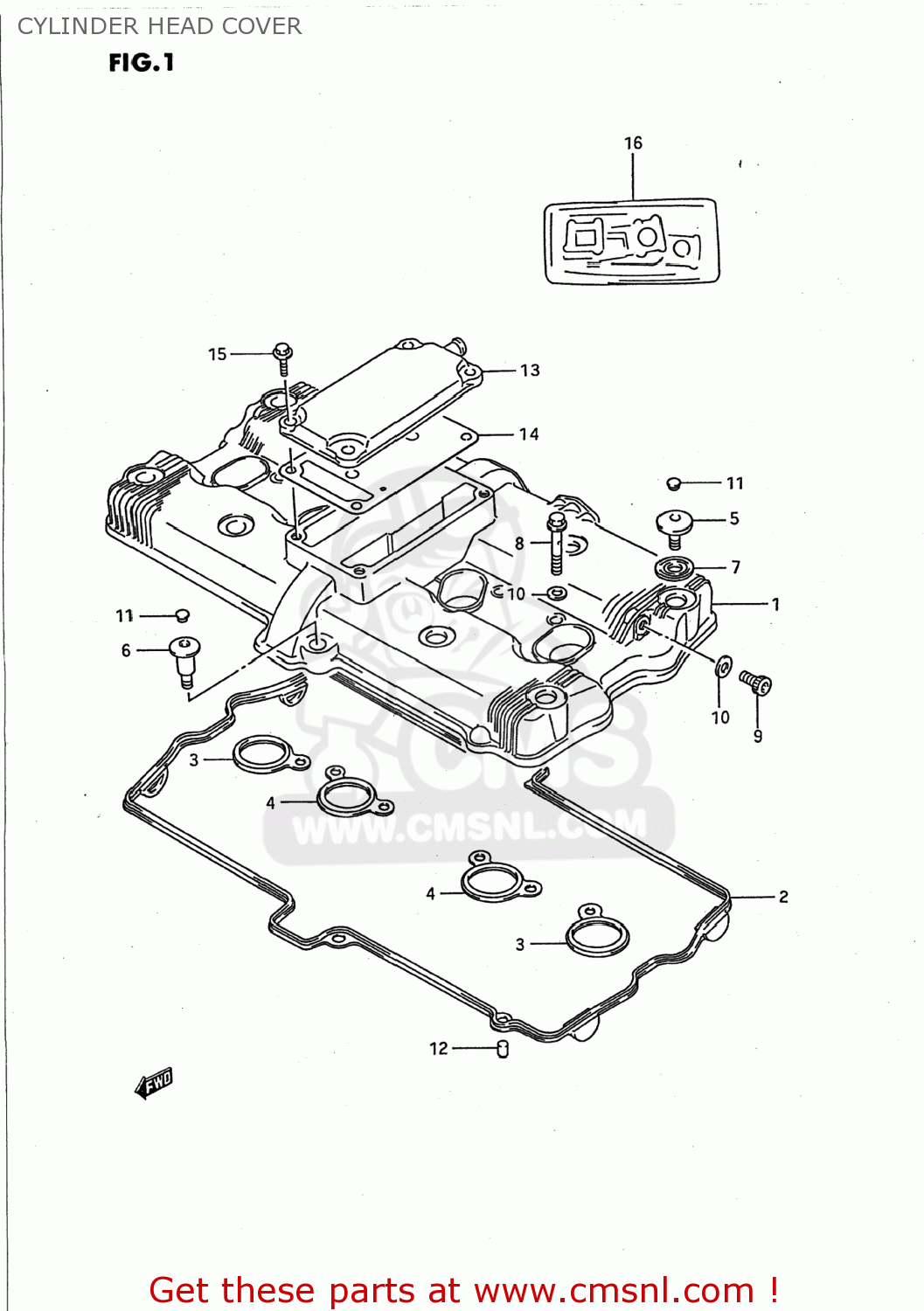

Cylinder head cover diagram GSX750F KATANA 1990 (L) USA (E03)
CYLINDER HEAD COVER GSX750F KATANA 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1117148B03
ref: 1
COVER,CYLINDER HEAD
€ 422.00
2
1117306B02
ref: 2
11173-06B03
GASKET,CYLINDER HEAD COVER (NAS)
€ 34.50
3
1117827A01
ref: 3
11178-27A02
GASKET,HEAD COVER NO.2 (NAS)
€ 5.50
4
1117927A02
ref: 4
11179-27A03
GASKET,HEAD COVER NO.3 (NAS)
€ 7.50
5
0910607009
ref: 5
BOLT(7X17.5)
€ 4.50
6
0910607010
ref: 6
BOLT(7X31)
€ 4.50
7
0916111008
ref: 7
WASHER(10.6X25.5X2.3)
€ 4.50
8
0936008009
ref: 8
11180-27820
BOLT,UNION 8X35
€ 26.50
9-1
0711008125
ref: 9-1
07130-0812A
PLUG, HEAD COVER
€ 2.50
9-2
0713008123
ref: 9-2
07130-0812A
PLUG
€ 2.50
10
0916808008
ref: 10
09168-08016
GASKET 8.2X14X1 (NAS)
€ 1.00
11
0925006008
ref: 11
CAP(OD:10)
€ 3.00
12
0422108129
ref: 12
PIN
€ 2.00
13
1117631301
ref: 13
COVER,BREATHER
€ 31.50
14-1
1117748B00
ref: 14-1
11177-48B00-H17
GASKET (NAS)
€ 10.50
14-2
1117748B00H17
ref: 14-2
GASKET,BREATHER (NAS)
€ 10.50
15-1
0151706204
ref: 15-1
01550-0620A
BOLT 6X20
€ 2.50
15-2
0151706207
ref: 15-2
01550-06207
BOLT 6X20
€ 2.50
15-3
0155006203
ref: 15-3
01550-0620A
BOLT
€ 2.50
16-1
1140017854
ref: 16-1
11401-17834
GASKET SET (NAS)
€ 296.50
16-2
1140017855
ref: 16-2
11401-17835
GASKET SET (NAS)
€ 296.50
16-3
1140017859
ref: 16-3
11401-17836
GASKET SET (NAS)
€ 296.50
16-4
1140117830
ref: 16-4
11401-17836
GASKET SET (NAS)
€ 296.50
