CYLINDER HEAD
GSX750F KATANA 1990 (L) USA (E03)

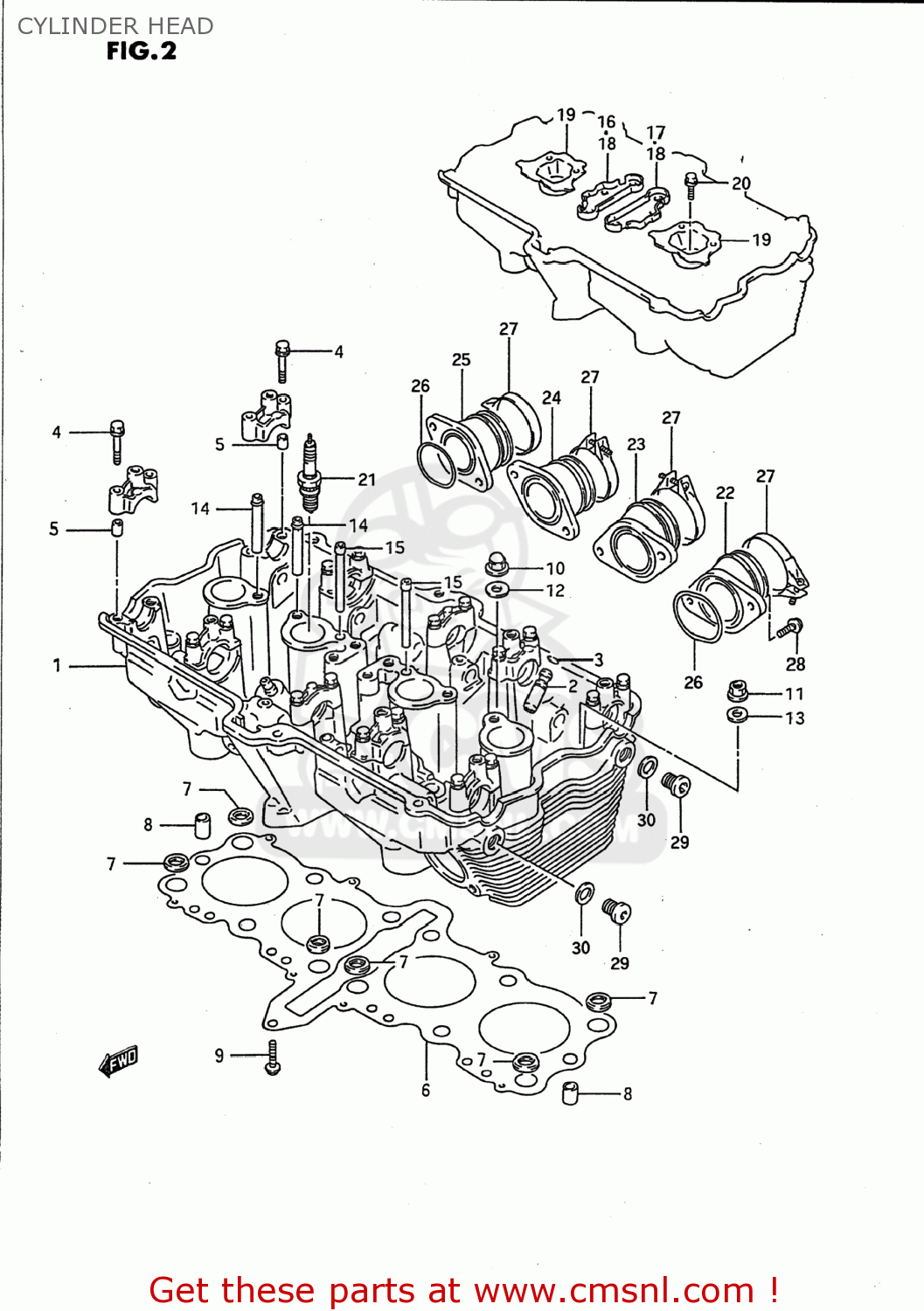

Cylinder head diagram GSX750F KATANA 1990 (L) USA (E03)
CYLINDER HEAD GSX750F KATANA 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110020C02
ref: 1-1
HEAD ASSEMBLY,CYLINDER
€ 1,196.00
1-2
1110020C12
ref: 1-2
HEAD ASSEMBLY,CYLINDER
€ 1,408.00
2
1111606B70
ref: 2
GUIDE,VALVE
€ 43.00
3
0938110004
ref: 3
RING,SNAP
€ 1.50
4
0910306026
ref: 4
BOLT(6X39)
€ 2.00
5
0920608001
ref: 5
PIN(6.2X8X11)
€ 2.00
6
1114117C02
ref: 6
11141-17C03
GASKET,CYLINDER HEAD (NAS)
€ 66.50
7
1114306B00
ref: 7
O RING,HEAD GASKET
€ 8.00
8
0421111189
ref: 8
PIN
€ 2.00
9-1
0151706254
ref: 9-1
01550-0625A
BOLT
€ 2.50
9-2
0155006253
ref: 9-2
01550-0625A
BOLT
€ 2.50
10
0915910054
ref: 10
NUT
€ 7.50
11-1
0831616106
ref: 11-1
08316-1010B
NUT
€ 2.00
11-2
0831610103
ref: 11-2
08316-1010B
NUT
€ 2.00
12
0916810031
ref: 12
GASKET(10.2X20X2).3 (NAS)
€ 2.00
13
0916010060
ref: 13
09160-10039
WASHER (10.5X22X2.3)
€ 2.50
14
1113127A00
ref: 14
PIPE,OIL NO.1
€ 6.00
15
1113327A00
ref: 15
PIPE,OIL NO.3
€ 7.00
16
1113517C01
ref: 16
11135-17C10
PLATE
€ 4.50
17
1113617C01
ref: 17
11135-17C10
PLATE
€ 4.50
18
1113517C10
ref: 18
PLATE,OIL PIPE NO.1
€ 4.50
19
1113717C01
ref: 19
PLATE,OIL PIPE NO.2
€ 5.50
20-1
0154706127
ref: 20-1
BOLT
€ 2.00
20-2
0154706123
ref: 20-2
01547-0612B
BOLT
€ 2.00
21-1
0948200397
ref: 21-1
PLUG,SPARK(JR9C)
€ 8.00
21-2
0948200401
ref: 21-2
PLUG,SPARK(JR8C)
€ 0.00
22
1310117C00
ref: 22
13101-17C01
PIPE ASSEMBLY,INTAKE
€ 32.50
23
1310217C00
ref: 23
13102-17C01
PIPE ASSEMBLY,INTAKE
€ 32.50
24
1310317C00
ref: 24
13103-17C01
PIPE ASSEMBLY,INTAKE
€ 32.50
25
1310417C00
ref: 25
13104-17C01
PIPE ASSEMBLY,INTAKE
€ 34.50
26
0928040010
ref: 26
O RING(D:2.4,ID:39.7)
€ 3.50
27
0940252208
ref: 27
CLAMP
€ 5.50
28-1
0215206165
ref: 28-1
02112-0616A
SCREW
€ 2.00
28-2
0211216163
ref: 28-2
02112-1616A
SCREW
€ 2.00
29
0924814010
ref: 29
PLUG
€ 5.00
30
0916814002
ref: 30
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
