COWLING (MODEL K)

GSX750F KATANA 1990 (L) USA (E03)

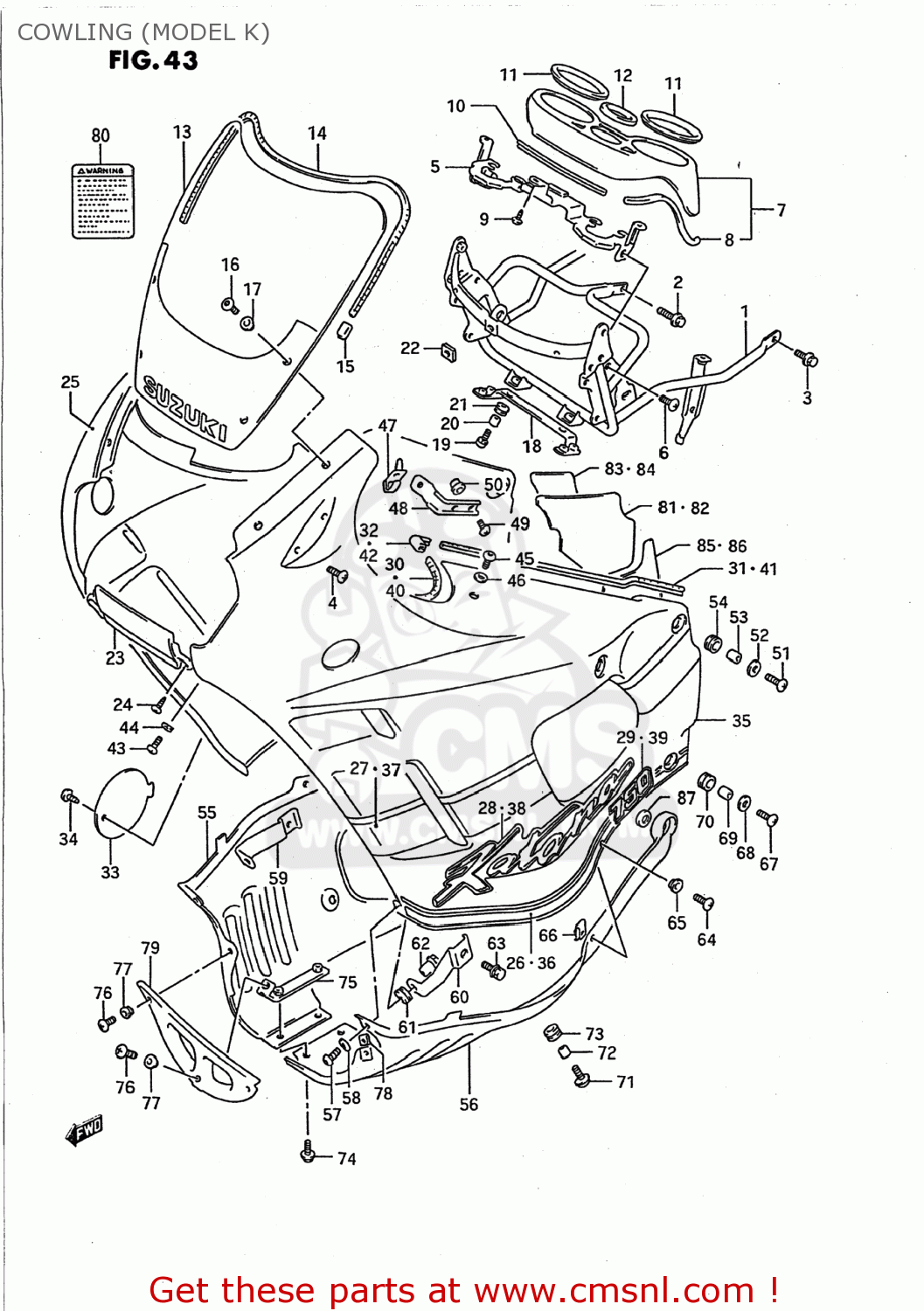

Cowling (model k) diagram GSX750F KATANA 1990 (L) USA (E03)

COWLING (MODEL K) GSX750F KATANA 1990 (L) USA (E03)
COWLING (MODEL K) GSX750F KATANA 1990 (L) USA (E03)
COWLING (MODEL K) GSX750F KATANA 1990 (L) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
9451020C00
ref: 1-1
94510-20C20
BRACE,COWLING
9451020C00
€ 128.50
1-2
9451020C10
ref: 1-2
94510-20C30
BRACE,COWLING
€ 145.50
2
0151708205
ref: 2
01550-0820A
BOLT
€ 4.50
3
0151706125
ref: 3
01550-0612A
BOLT 6X12
0151706125
€ 4.00
4
0214206127
ref: 4
SCREW 6X12
0214206127
€ 2.50
5
9452020C00
ref: 5
PLATE,METER FITING
9452020C00
€ 30.50
6
0214206125
ref: 6
02142-0612A
0214206125
7
9442020C00
ref: 7
94420-20C02
COVER COMP,METER
€ 39.00
8
9463519C10
ref: 8
94635-19C00
MOLDING
9463519C10
€ 6.00
9
0354105085
ref: 9
03541-0508A
SCREW 5X8
€ 2.50
10
9452719C00
ref: 10
MOLDING,METER COVER
9452719C00
€ 4.00
11
9442620C00
ref: 11
CUSHION,SPEEDOMETER
9442620C00
€ 5.50
12
9442720C00
ref: 12
CUSHION,FUEL METER
9442720C00
€ 4.00
13
9461020C00
ref: 13
WINDOW,COWLING
€ 234.00
14
9463120C00
ref: 14
94631-49300
MOLDING
9463120C00
€ 21.00
15
9463719C00
ref: 15
CAP,MOLDING END
9463719C00
€ 5.50
16
0913905022
ref: 16
09139-05042
0913905022
17
0916105010
ref: 17
WASHER(5.2X11X1)
0916105010
€ 2.50
18
9446019C00
ref: 18
PLATE,COWL CTR PANEL
9446019C00
€ 12.00
19
0913606081
ref: 19
SCREW(6X20)
0913606081
€ 4.00
20
0918006167
ref: 20
09180-06286
0918006167
21
0932010015
ref: 21
CUSHION
0932010015
€ 3.50
22
9463819C00
ref: 22
63191-25C00
CUSHION,SCREEN
9463819C00
€ 3.50
23-1
9442119C000FP
ref: 23-1
94421-19C01-0FP
PANEL,COWLING,CENTER
€ 30.00
23-2
9442119C010FP
ref: 23-2
PANEL,COWLING CTR
9442119C010FP
€ 30.00
23-3
9442119C0024V
ref: 23-3
94421-19C01-24V
PANEL,COWLING,CENTER
€ 37.50
23-4
9442119C0124V
ref: 23-4
PANEL,COWLING,CENTER
9442119C0124V
€ 37.50
24
0214205128
ref: 24
02142-05127
SCREW
0214205128
€ 2.00
25-1
9440120C102VV
ref: 25-1
94401-20C12-2VV
COVER ASSEMBLY,COWLING,RIGHT
€ 708.00
25-2
9440120C112VV
ref: 25-2
94401-20C12-2VV
COVER ASSEMBLY,COWLING,RIGHT (R
€ 708.00
25-3
9440120C103CJ
ref: 25-3
94430-19C02-3CJ
COVER ASSEMBLY,COWLING,RIGHT (R
€ 723.00
25-4
9440120C113CJ
ref: 25-4
94430-19C02-3CJ
COVER ASSEMBLY,COWLING,RIGHT (R
€ 723.00
26-1
6868520C003DB
ref: 26-1
TAPE,COWL SIDE STRIPING,R
6868520C003DB
€ 18.50
26-2
6868520C0069L
ref: 26-2
TAPE,COWLING SIDE STRIPE
€ 18.50
27-1
6868620C0073H
ref: 27-1
TAPE,COWL SIDE,R
6868620C0073H
€ 35.50
27-2
6868620C003CU
ref: 27-2
TAPE,COWLING SIDE,RIGHT
6868620C003CU
€ 35.50
28-1
6818119C003CZ
ref: 28-1
EMBLEM,COWLING SIDE (KATANA)
6818119C003CZ
€ 30.00
28-2
6818119C003DA
ref: 28-2
EMBLEM,COWLING SIDE (KATANA)
€ 30.50
29A
9443319C0124V
ref: 29A
COVER,COWLING METER,SIDE
€ 17.50
29B
9443319C010FP
ref: 29B
COVER,COWLING METER,SIDE
9443319C010FP
€ 14.50
29C
0354104105
ref: 29C
03541-0410A
SCREW
0354104105
€ 2.00
29-1
6868120C002VV
ref: 29-1
EMBLEM,COWLING SIDE (7)
€ 9.00
29-2
6868120C003CJ
ref: 29-2
EMBLEM,COWLING SIDE (7)
€ 9.00
30
9463119C10
ref: 30
94631-49310
MOLDING
9463119C10
€ 14.00
31
9463519C00
ref: 31
MOLDING
9463519C00
€ 6.00
32
9443819C00
ref: 32
JOINT,MOLDING END
9443819C00
€ 9.50
33-1
9443519C0024V
ref: 33-1
94435-19C01-24V
LID,OIL
9443519C0024V
€ 23.50
33-2
9443519C0124V
ref: 33-2
LID,OIL
9443519C0124V
€ 23.50
33-3
9443519C000FP
ref: 33-3
94435-19C01
LID,OIL
9443519C000FP
€ 14.00
33-4
9443519C010FP
ref: 33-4
94435-19C01
LID,OIL
€ 14.00
34
0913906030
ref: 34
SCREW(6X16)
0913906030
€ 5.00
35-1
9440220C102VV
ref: 35-1
94402-20C12-2VV
COVER ASSEMBLY,COWLING,LEFT
€ 406.50
35-2
9440220C112VV
ref: 35-2
94402-20C12-2VV
COVER ASSEMBLY,COWLING,LEFT
€ 406.50
35-3
9440220C103CJ
ref: 35-3
94402-20C22-3CJ
COVER ASSEMBLY,COWLING,LEFT
€ 2.00
35-4
9440220C113CJ
ref: 35-4
94402-20C22-3CJ
COVER ASSEMBLY,COWLING,LEFT
€ 2.00
35-5
9440220C202VV
ref: 35-5
COVER ASSEMBLY,COWLING,LEFT
€ 2.00
35-5
9440220C202VV
ref: 35-5
COVER ASSEMBLY,COWLING,LEFT
€ 2.00
35-6
9440220C212VV
ref: 35-6
94402-20C20-2VV
COVER ASSEMBLY,COWLING,LEFT
€ 2.00
35-7
9440220C203CJ
ref: 35-7
94402-20C22-3CJ
COVER ASSEMBLY,COWLING,LEFT
€ 2.00
35-7
9440220C203CJ
ref: 35-7
94402-20C22-3CJ
COVER ASSEMBLY,COWLING,LEFT
€ 2.00
35-8
9440220C213CJ
ref: 35-8
94402-20C22-3CJ
COVER ASSEMBLY,COWLING,LEFT
€ 2.00
36-1
6869520C003DB
ref: 36-1
TAPE,COWLING SIDE STRIPE
€ 18.50
36-2
6869520C0069L
ref: 36-2
TAPE,COWLING SIDE STRIPE
6869520C0069L
€ 18.50
37-1
6869620C0073H
ref: 37-1
TAPE,COWLING SIDE,LEFT
€ 41.50
37-2
6869620C003CU
ref: 37-2
TAPE,COWLING SIDE,LEFT
6869620C003CU
€ 39.00
38-1
6818119C003CZ
ref: 38-1
EMBLEM,COWLING SIDE (KATANA)
6818119C003CZ
€ 30.00
38-2
6818119C003DA
ref: 38-2
EMBLEM,COWLING SIDE (KATANA)
€ 30.50
38-3
6819120C003CZ
ref: 38-3
EMBLEM,SIDE,LEFT (KATANA)
€ 27.00
38-4
6819120C003DA
ref: 38-4
EMBLEM
€ 21.00
39A
9444319C0124V
ref: 39A
COVER,COWLING METER,SIDE
€ 17.50
39B
9444319C010FP
ref: 39B
COVER,COWLING METER,SIDE
€ 19.50
39C
0354104105
ref: 39C
03541-0410A
SCREW
0354104105
€ 2.00
39-1
6868120C002VV
ref: 39-1
EMBLEM,COWLING SIDE (7)
€ 9.00
39-2
6868120C003CJ
ref: 39-2
EMBLEM,COWLING SIDE (7)
€ 9.00
40
9463119C10
ref: 40
94631-49310
MOLDING
9463119C10
€ 14.00
41
9463519C00
ref: 41
MOLDING
9463519C00
€ 6.00
42
9443819C00
ref: 42
JOINT,MOLDING END
9443819C00
€ 9.50
43
0913906029
ref: 43
SCREW(6X25)
0913906029
€ 7.00
44
0916006036
ref: 44
0916006036
45
0913906030
ref: 45
SCREW(6X16)
0913906030
€ 5.00
46
0916106021
ref: 46
WASHER(6.3X16X1.5)
0916106021
€ 3.50
47
9456019C00
ref: 47
BRACKET,COWLING UPR,R
9456019C00
€ 40.50
48
9457019C00
ref: 48
BRACKET,COWLING UPR,L
9457019C00
€ 40.50
49
0912506055
ref: 49
SCREW(6X25)
0912506055
€ 4.50
50
9457319C00
ref: 50
NUT,COWLING SIDE BRKT
9457319C00
€ 8.00
51
0913906029
ref: 51
SCREW(6X25)
0913906029
€ 7.00
52
0916006036
ref: 52
0916006036
53
0918006011
ref: 53
09180-06263
SPACER (6.1X9X9)
0918006011
€ 3.00
54
0932009016
ref: 54
CUSHION
0932009016
€ 3.00
55-1
9447119C0013L
ref: 55-1
COVER,COWLING UNDER,R
9447119C0013L
€ 179.00
55-2
9447119C000FP
ref: 55-2
COVER,COWLING UNDER,R
€ 157.50
56-1
9448119C0013L
ref: 56-1
COVER,COWLING UNDER,L
€ 142.50
56-2
9448119C000FP
ref: 56-2
COVER,COWLING UNDER,L
9448119C000FP
€ 143.50
57
0913906042
ref: 57
SCREW(6X30)
0913906042
€ 9.50
58
0916006036
ref: 58
0916006036
59
9453119C00
ref: 59
BRACKET,COWLING LWR,R
9453119C00
€ 8.00
60
9453219C00
ref: 60
BRACKET,COWLING LWR,L
9453219C00
€ 6.00
61
0932010015
ref: 61
CUSHION
0932010015
€ 3.50
62
9459019C00
ref: 62
NUT,COWLING,FR
9459019C00
€ 8.00
63
0113706165
ref: 63
01570-0616A
BOLT
€ 3.00
64
0913905025
ref: 64
SCREW(5X14)
0913905025
€ 3.00
65
0916105017
ref: 65
WASHER(5.2X14X1.5)
0916105017
€ 4.00
66
9448432B00
ref: 66
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 5.50
67
0913906029
ref: 67
SCREW(6X25)
0913906029
€ 7.00
68
0916006036
ref: 68
0916006036
69
0918006116
ref: 69
SPACER(6.1X8X14.5)
0918006116
€ 2.00
70
0932009016
ref: 70
CUSHION
0932009016
€ 3.00
71
0913606081
ref: 71
SCREW(6X20)
0913606081
€ 4.00
72
0918006011
ref: 72
09180-06263
SPACER (6.1X9X9)
0918006011
€ 3.00
73
0932009016
ref: 73
CUSHION
0932009016
€ 3.00
74
0214215165
ref: 74
02142-0516A
SCREW, LOWER
0214215165
€ 3.00
75
9458019C00
ref: 75
BRACKET,FR UNDER COWL
9458019C00
€ 6.50
76
0214205164
ref: 76
02142-0516A
SCREW
0214205164
€ 3.00
77
0916105017
ref: 77
WASHER(5.2X14X1.5)
0916105017
€ 4.00
78
9448432B00
ref: 78
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 5.50
79-1
9447519C0013L
ref: 79-1
94475-19C01
COVER,COWLING,UNDER,FRONT
€ 23.50
79-2
9447519C000FP
ref: 79-2
94475-19C01-0FP
COVER,COWLING,UNDER,FRONT
€ 23.50
79-3
9447519C01
ref: 79-3
COVER,COWLING UNDER FR
9447519C01
€ 23.50
80
6861248B00
ref: 80
68922-14F00
LABEL (WARNING SCREEN)
6861248B00
€ 9.00
81
9457320C00
ref: 81
BALANCER SHEET,COWLING,R
9457320C00
€ 22.50
82
9458320C00
ref: 82
BALANCER SHEET,COWLING,L
9458320C00
€ 16.00
83
9457620C00
ref: 83
CUSHION,COWLING,R
9457620C00
€ 6.00
84
9458620C00
ref: 84
CUSHION,COWLING,L
9458620C00
€ 6.00
85
9457420C00
ref: 85
SHEET,COWLING BALANCER,R
9457420C00
€ 19.00
86-1
9458420C00
ref: 86-1
SHEET,COWLING BALANCER
9458420C00
€ 24.50
86-2
9458420C10
ref: 86-2
SHEET,COWLING BALANCER
€ 0.00
87
9463920C00
ref: 87
CUSHION,UNDER COWLING RR
9463920C00
€ 2.50
up

all assemblies

AIR CLEANER
ALTERNATOR
BATTERY
CAM CHAIN
CAM SHAFT - VALVE
CANISTER (CALIFORNIA ONLY)
CARBURETOR
CARBURETOR FITTINGS
CLUTCH
COOLING FAN (CALIFORNIA ONLY)
COWLING (MODEL K)
COWLING (MODEL L)
COWLING (MODEL M)
COWLING BODY (MODEL N)
COWLING BODY (MODEL P)
COWLING BODY (MODEL R)
COWLING BODY (MODEL S)
COWLING BODY (MODEL T)
CRANKCASE
CRANKCASE COVER
CRANKSHAFT
CYLINDER
CYLINDER HEAD
CYLINDER HEAD COVER
ELECTRICAL
FOOTREST
FRAME
FRAME COVER (MODEL K/L)
FRAME COVER (MODEL M)
FRAME COVER (MODEL N)
FRAME COVER (MODEL P/R)
FRAME COVER (MODEL S/T)
FRONT BRAKE HOSE
FRONT CALIPERS
FRONT DAMPER
FRONT FENDER
FRONT MASTER CYLINDER
FRONT WHEEL
FUEL COCK
FUEL TANK (MODEL K/L)
FUEL TANK (MODEL M/N)
FUEL TANK (MODEL P/R/S/T)
GEAR SHIFTING
HANDLE SWITCH
HANDLEBAR
HEADLAMP
INSTALLATION PARTS
MUFFLER
OIL COOLER
OIL PAN
OIL PUMP
PILLION HANDLE
REAR CALIPER (MODEL K/L/M/N)
REAR CALIPER (MODEL P/R/S/T)
REAR COMBINATION LAMP
REAR CUSHION LEVER
REAR FENDER
REAR MASTER CYLINDER
REAR SWINGING ARM
REAR WHEEL
RIGHT HANDLE SWITCH
SEAT
SECOND AIR (CALIFORNIA ONLY)
SIGNAL GENERATOR
SPEEDOMETER
STAND
STARTER CLUTCH
STARTING MOTOR
STEERING STEM
TAIL LAMP BAR
TRANSMISSION
TURNSIGNAL LAMP
WIRING HARNESS
up
