REAR SWINGING ARM
GSX750F KATANA 1990 (L) USA (E03)

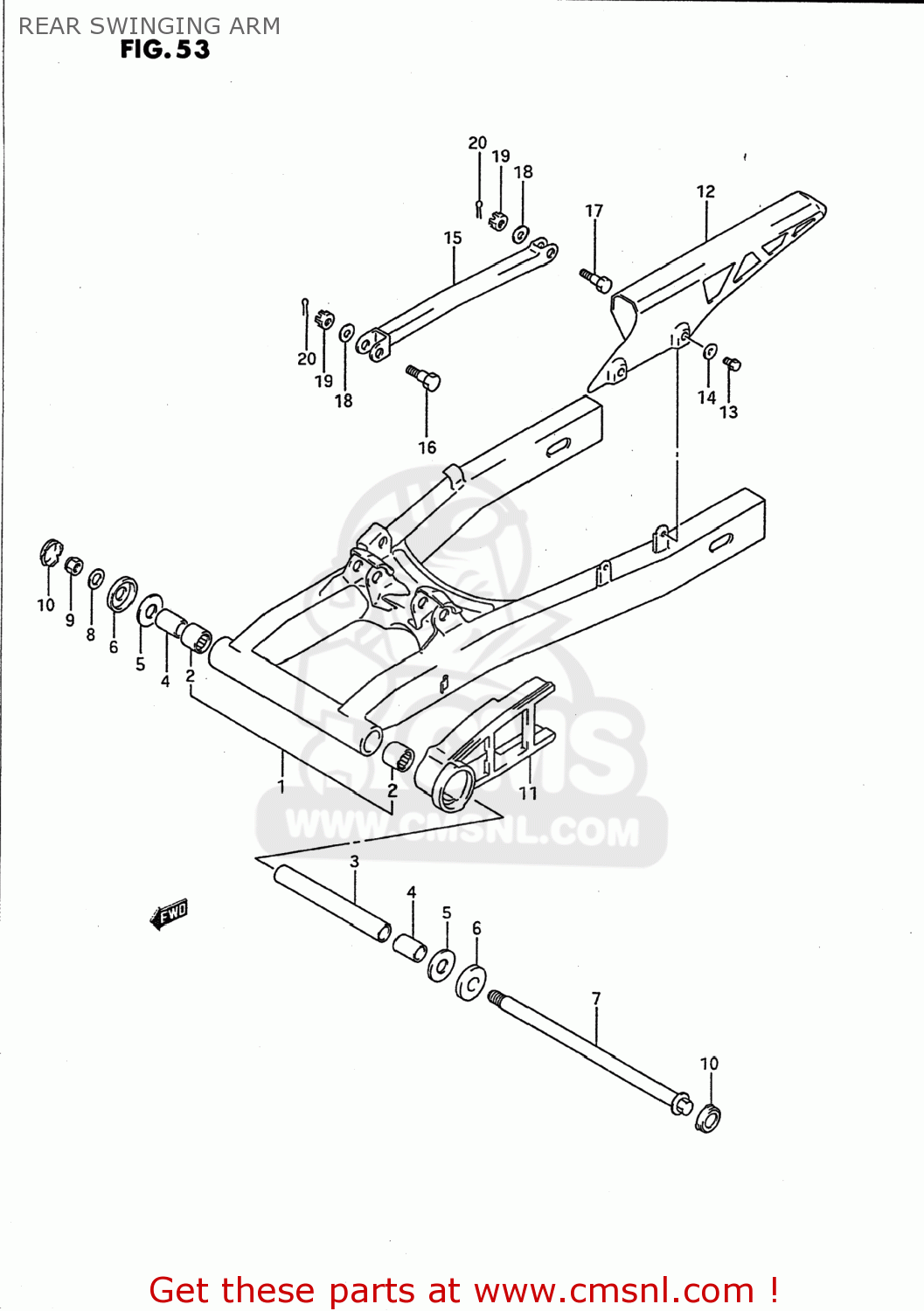

Rear swinging arm diagram GSX750F KATANA 1990 (L) USA (E03)
REAR SWINGING ARM GSX750F KATANA 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100020C0113L
ref: 1
61000-20C02-13L
SWING ARM ASSEMBLY,REAR
€ 487.00
1
6100020C0113L
ref: 1
61000-20C02-13L
SWING ARM ASSEMBLY,REAR
€ 487.00
2
0926322017
ref: 2
BEARING(22X29X30)
€ 18.50
3
6128220C00
ref: 3
SPACER,RR SWGARM PIVOT CTR
€ 15.50
4
6125138B00
ref: 4
SPACER,RR SWGARM PIVOT
€ 14.00
5
0821116341
ref: 5
WASHER
€ 2.00
6
6126232410
ref: 6
COVER,RR SWGARM DUST SEAL
€ 10.00
7
6121120C00
ref: 7
SHAFT,REAR SWING ARM PIVOT
€ 35.00
8
0916014015
ref: 8
WASHER(14X27X3)
€ 4.00
9-1
0915914013
ref: 9-1
09159-14019
NUT
€ 8.50
9-2
0915914019
ref: 9-2
NUT
€ 8.50
10
6122243400
ref: 10
CAP,SWINGINGARM PIVOT
€ 4.00
11
6127320C00
ref: 11
BUFFER,CHAIN TOUCH DEFENSE
€ 24.50
12
6131027A01
ref: 12
CASE,CHAIN
€ 48.00
13-1
0151706105
ref: 13-1
01550-0610A
BOLT
€ 2.50
13-2
0214206104
ref: 13-2
02142-0610A
SCREW
€ 2.00
13-3
0214206103
ref: 13-3
02142-0610A
SCREW 6X10
€ 2.00
13-4
0214206123
ref: 13-4
02142-0612A
SCREW 6X12
€ 2.00
14
0916906026
ref: 14
WASHER
€ 2.00
15-1
6431020C00291
ref: 15-1
64310-20C00-019
TORQUE LINK,REAR
€ 23.00
15-2
6431020C0013L
ref: 15-2
64310-20C00-019
TORQUE LINK,REAR
€ 23.00
15-3
6431020C00019
ref: 15-3
TORQUE LINK,REAR (BLACK)
€ 23.00
16
0911110016
ref: 16
BOLT(10X41)
€ 6.50
17
0910110036
ref: 17
BOLT(10X35)
€ 4.50
18
0916010069
ref: 18
09160-10005
WASHER (10X18X3.2)
€ 2.00
19-1
0831441108
ref: 19-1
08314-4010B
NUT
€ 2.50
19-2
0831440103
ref: 19-2
08314-4010B
NUT
€ 2.50
20
0411120208
ref: 20
04111-2020A
PIN 20X20
€ 1.50
