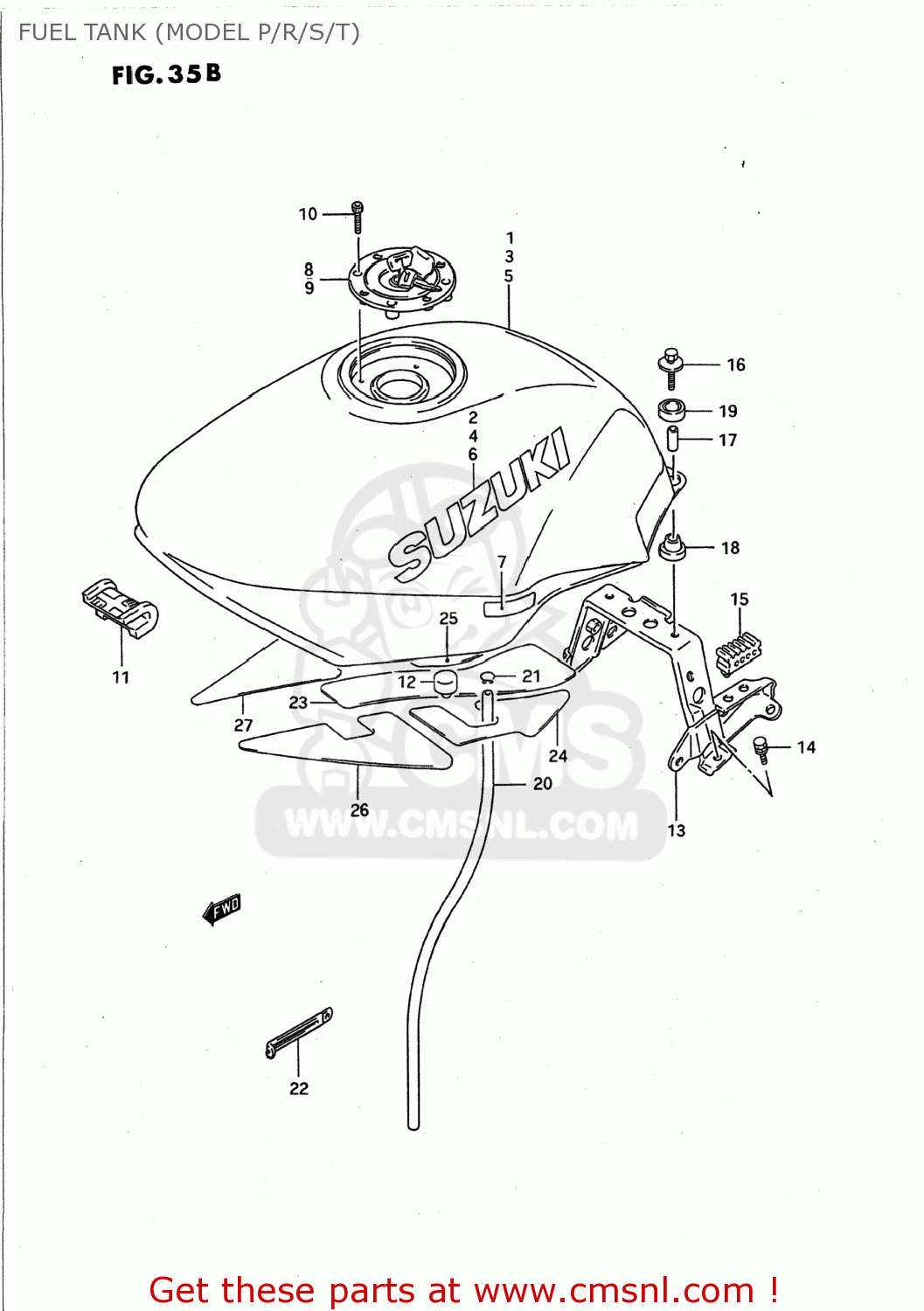

FUEL TANK (MODEL P/R/S/T)

ref

part #

description

quantity

1-1

4410043C301LE
ref: 1-1
44100-43C31-1LE

TANK ASSEMBLY,FUEL

€ 421.00

1-2

4410043C601LE
ref: 1-2
44100-43C61-1LE

TANK ASSEMBLY,FUEL

€ 585.50

1-3

4410043C3036X
ref: 1-3
44100-43C31-36X

TANK ASSEMBLY,FUEL

€ 16.00

1-4

4410043C6036X
ref: 1-4
44110-19C11-YD8

TANK ASSEMBLY,FUEL

€ 585.50

2-1

6811112C0014B
ref: 2-1
68111-12C30-14B

EMBLEM,FUEL TANK

€ 10.50

2-2

6811112C001AP
ref: 2-2

EMBLEM,FUEL TANK

€ 0.00

3-1

4410021CE033J
ref: 3-1
44100-21CF1-33J

TANK ASSEMBLY,FUEL

€ 516.50

3-2

4410021CG033J
ref: 3-2
44100-21CG1-33J

TANK ASSEMBLY,FUEL

€ 585.50

3-3

4410021CF01SX
ref: 3-3
44100-21CF1-1SX

TANK ASSEMBLY,FUEL

€ 490.50

3-4

4410021CF02JX
ref: 3-4
44100-21CF1-2JX

TANK ASSEMBLY,FUEL

€ 614.00

3-5

4410021CG019A
ref: 3-5
44100-21CG1-19A

TANK ASSEMBLY,FUEL

€ 585.50

3-6

4410021CG02JX
ref: 3-6
44100-21CG1-2JX

TANK ASSEMBLY,FUEL (BLACK)

€ 585.50

4-1

6811101D20C2T
ref: 4-1

EMBLEM,FUEL TANK

€ 14.00

4-2

6811101D20D4N
ref: 4-2

EMBLEM

€ 17.50

4-3

6811101D20D4M
ref: 4-3

EMBLEM

€ 15.50

5-1

4410043C30Y98
ref: 5-1
44110-19C22-YD8

TANK ASSEMBLY,FUEL

€ 421.00

5-2

4410043C3033J
ref: 5-2
44100-43C31-33J

TANK ASSEMBLY,FUEL

€ 847.00

5-3

4410043C60Y98
ref: 5-3
44100-43C61-Y98

TANK ASSEMBLY,FUEL

€ 468.50

5-4

4410043C6033J
ref: 5-4
44110-19C11-YD8

TANK ASSEMBLY,FUEL

€ 585.50

6

6811112C0017U
ref: 6
68111-12C30-17U

EMBLEM,FUEL TANK

€ 15.50

7-1

4428319C00
ref: 7-1

PROTECTOR,FUEL TANK,RIGHT

€ 7.00

7-2

4429319C00
ref: 7-2

PROTECTOR,FUEL TANK,LEFT

€ 7.00

7-3

3285110D00
ref: 7-3

PROTECTOR(12X40)

€ 4.50

8-1

4420101831
ref: 8-1
44201-01832

CAP SET,FUEL TANK

€ 204.00

8-2

4420101832
ref: 8-2

CAP SET,FUEL TANK

€ 204.00

9-1

4420101841
ref: 9-1
44201-01842

CAP SET,FUEL TANK

€ 160.50

9-2

4420101842
ref: 9-2

CAP SET,FUEL

€ 160.50

10

0910605017
ref: 10

BOLT(5X20)

€ 3.00

11

4451119C00
ref: 11

CUSHION,FUEL TANK FR

€ 8.00

12

0932110011
ref: 12

CUSHION

€ 3.00

13

4455019C00
ref: 13

BRACKET,FUEL TANK RR

€ 54.50

14

0913706017
ref: 14
01570-0620A

SCREW

€ 2.50

15

4514931300
ref: 15

CUSHION,SEAT(40X20X15)

€ 2.00

16-1

0911606078
ref: 16-1
09116-06172

BOLT

€ 2.50

16-2

0911606172
ref: 16-2

BOLT(6X30)

€ 2.50

17

0918006072
ref: 17
09180-06271

SPACER

€ 2.00

18

0932010038
ref: 18

CUSHION

€ 4.00

19

0932014017
ref: 19

CUSHION

€ 3.00

20

4442319C00
ref: 20

HOSE,FUEL TANK WATER DRAIN

€ 13.00

21

0940108401
ref: 21

CLIP

€ 1.50

22

0940408420
ref: 22

CLAMP(L:120 T:1.0)

€ 3.50

23

4913120C00
ref: 23

HEATSHIELD,CTR

€ 17.00

24

4913220C00
ref: 24

HEATSHIELD,RR,L

€ 17.00

25

4913320C00
ref: 25

HEATSHIELD,RR,R

€ 17.00

26

4913420C00
ref: 26

HEATSHIELD,FR,L

€ 17.00

27

4913520C00
ref: 27

HEATSHIELD,FR,R

€ 13.50
