COOLING FAN (CALIFORNIA ONLY)

GSX750F KATANA 1993 (P) USA (E03)

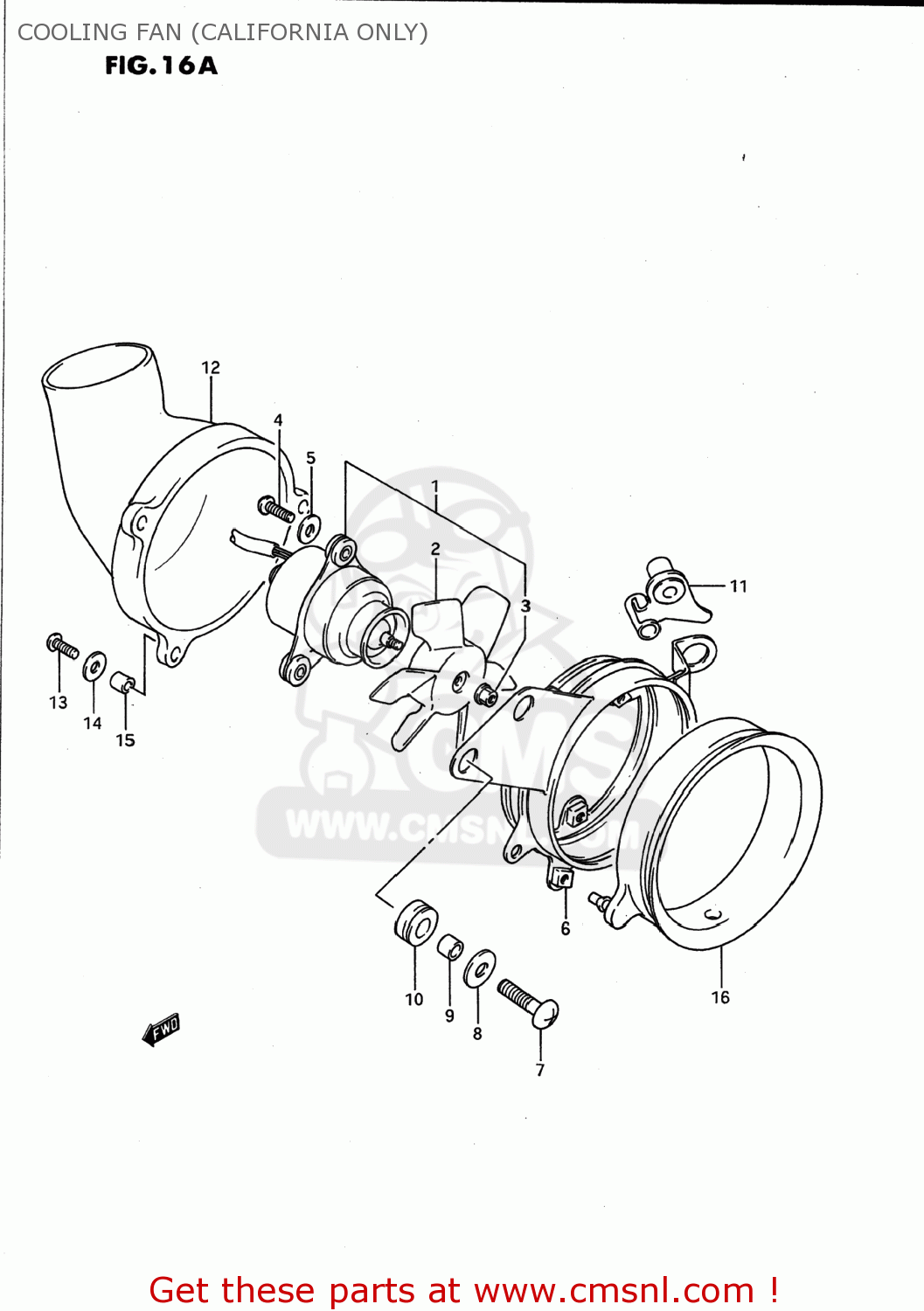

Cooling fan (california only) diagram GSX750F KATANA 1993 (P) USA (E03)

COOLING FAN (CALIFORNIA ONLY) GSX750F KATANA 1993 (P) USA (E03)
COOLING FAN (CALIFORNIA ONLY) GSX750F KATANA 1993 (P) USA (E03)
COOLING FAN (CALIFORNIA ONLY) GSX750F KATANA 1993 (P) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1710048B00
ref: 1
FAN ASSY,COOLING
€ 187.50
2
1712048B00
ref: 2
FAN
€ 24.00
3-1
0831616036
ref: 3-1
08316-10033
NUT 3MM
€ 1.50
3-2
0831610033
ref: 3-2
NUT
€ 1.50
4-1
0211204165
ref: 4-1
02112-0416A
SCREW
€ 1.00
4-2
0211204163
ref: 4-2
02112-0416A
SCREW 4X16
0211204163
€ 1.00
5
0916004017
ref: 5
09160-04022
WASHER (4.3X13X0.80)
0916004017
€ 1.50
6
1725020C00
ref: 6
SHROUD,FAN
€ 35.00
7-1
0214206205
ref: 7-1
02142-0620A
SCREW, CENTER
0214206205
€ 2.00
7-2
0214206203
ref: 7-2
02142-0620A
SCREW
0214206203
€ 2.00
8
0916006056
ref: 8
WASHER(6.5X18X1)
0916006056
€ 2.00
9-1
0918006137
ref: 9-1
SPACER(9.2X9X6.5)
0918006137
€ 2.50
9-2
0918006165
ref: 9-2
09180-06257
SPACER (6.6X9X6.5)
0918006165
€ 2.50
10
0932009036
ref: 10
CUSHION
0932009036
€ 4.00
11
1726020C00
ref: 11
BRACKET,FAN SHROUD
€ 6.00
12
1727120C00
ref: 12
DUCT,FAN COOLING NO.1
€ 23.00
13-1
0211204124
ref: 13-1
02112-0412A
SCREW
€ 1.50
13-2
0211204123
ref: 13-2
02112-0412A
SCREW
0211204123
€ 1.50
14
0916004017
ref: 14
09160-04022
WASHER (4.3X13X0.80)
0916004017
€ 1.50
15
0918004009
ref: 15
09180-04301
SPACER (4.5X6.5X5)
€ 0.00
16
1727220C00
ref: 16
DUCT,FAN COOLING NO.2
€ 25.50
