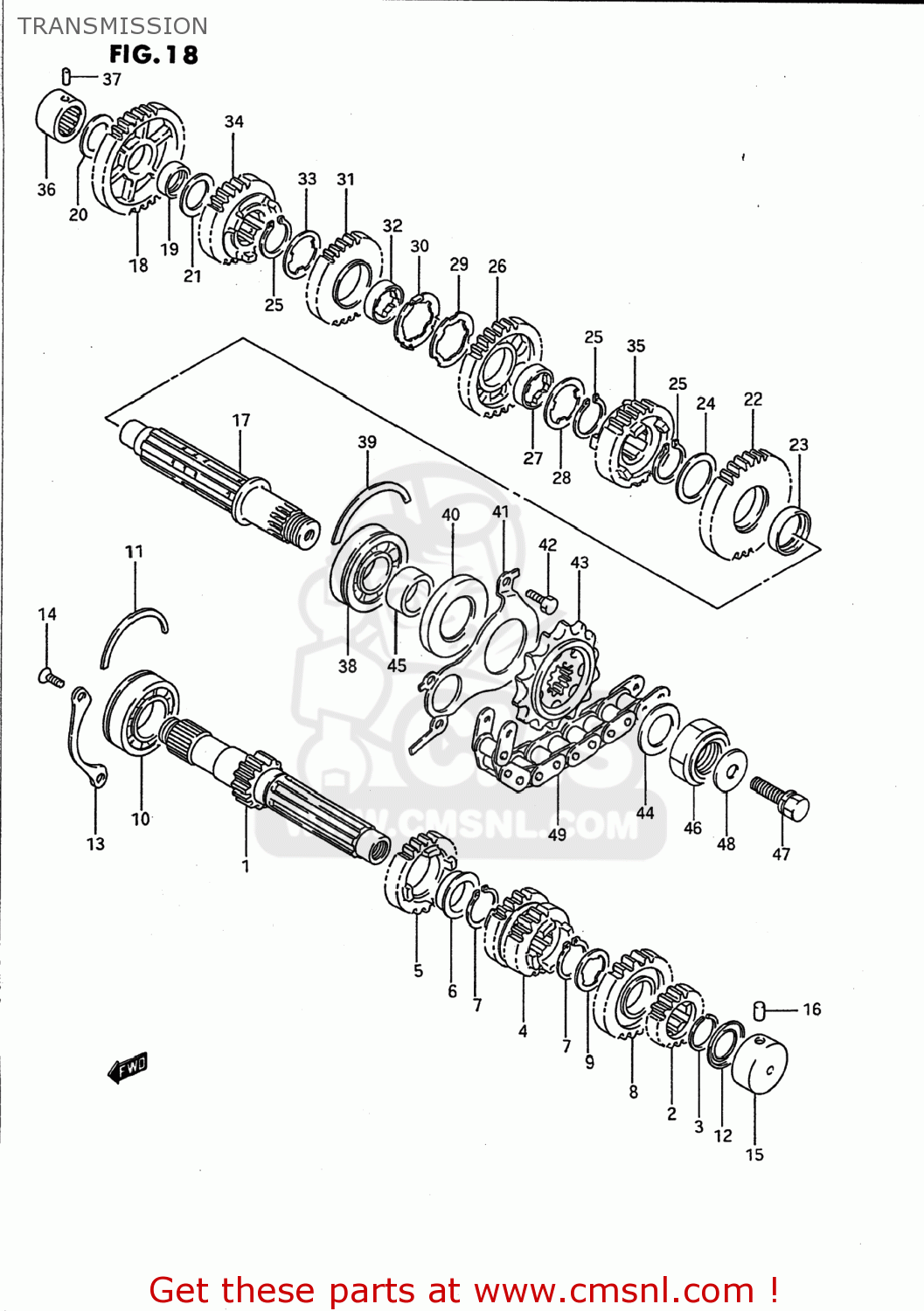

TRANSMISSION

ref

part #

description

quantity

1-1

2412120C00
ref: 1-1
24121-20C10

SHAFT,COUNTER

€ 196.00

1-2

2412120C10
ref: 1-2

SHAFT,COUNTER(NT:12)

€ 196.00

2-1

2422127A01
ref: 2-1

GEAR,2ND DRIVE(NT:16)

€ 93.00

2-2

2422127A10
ref: 2-2
24221-27A01

GEAR,SECOND DRIVE

€ 93.00

3

0938025013
ref: 3

CIRCLIP

€ 3.00

4-1

2423127A00
ref: 4-1

GEAR,3RD & 4TH DRIVE(NT:17/20)

€ 162.00

4-2

2423127A10
ref: 4-2
24231-27A00

GEAR,THIRD & FOURTH DRIVE,N

€ 162.00

5

2425127A01
ref: 5

GEAR,5TH DRIVE(NT:22)

€ 91.00

6

0930125001
ref: 6
24322-19F00

BUSHING

€ 12.50

7

0938025003
ref: 7

RING,SNAP

€ 3.00

8-1

2426117C00
ref: 8-1
24261-17C02

GEAR,SIXTH DRIVE

€ 119.50

8-2

2426117C01
ref: 8-2
24261-17C02

GEAR,SIXTH DRIVE (NT:21)

€ 119.50

9

0916725012
ref: 9

WASHER,LOCK

€ 3.50

10-1

0926225051
ref: 10-1
09262-25105

BEARING(25X62X17)

€ 59.50

10-2

0926225115
ref: 10-2

BEARING(25X62X17)

€ 54.00

11-1

0939062006
ref: 11-1
09390-62012

C-RING

€ 5.00

11-2

0939062012
ref: 11-2

C RING

€ 5.00

12

0928520006
ref: 12

SEAL,OIL(20X31.2X2.7)

€ 7.00

13

2474127A00
ref: 13

RETAINER,CNTR SHAFT BEARING

€ 7.00

14-1

0212206167
ref: 14-1

SCREW

€ 2.00

14-2

0212206163
ref: 14-2
02122-0616A

SCREW ,6X16

€ 2.00

15

0926320049
ref: 15

BEARING(20X34X17.5)

€ 58.00

16

0422107129
ref: 16

PIN

€ 1.50

17

2413120C00
ref: 17

SHAFT,DRIVE

€ 177.50

18-1

2431119C01
ref: 18-1
24311-19C10

GEAR,FIRST DRIVEN

€ 101.50

18-2

2431119C10
ref: 18-2

GEAR,1ST DRIVEN(NT:37)

€ 101.50

19

0930022008
ref: 19

BUSH(22X26X9)

€ 10.50

20

0821120341
ref: 20

WASHER

€ 2.00

21

0821122341
ref: 21

WASHER

€ 3.00

22-1

2432120C00
ref: 22-1

GEAR,2ND DRIVEN(NT:33)

€ 60.00

22-2

2432120C10
ref: 22-2
24321-20C00

GEAR,SECOND DRIVEN

€ 60.00

23

0930028003
ref: 23

BUSH(28X32X9.5)

€ 19.50

24

0821128381
ref: 24
09181-28195

WASHER, THRUST

€ 3.50

25-1

0833111289
ref: 25-1
08331-3128A

CIRCLIP

€ 2.50

25-2

0833131286
ref: 25-2
08331-3128A

CIRCLIP

€ 2.50

26-1

2433127A00
ref: 26-1

GEAR,3RD DRIVEN(NT:28)

€ 129.00

26-2

2433127A10
ref: 26-2
24331-27A00

GEAR,THIRD DRIVEN

€ 129.00

27

2433227A00
ref: 27

BUSH

€ 13.50

28

0916728001
ref: 28

WASHER,LOCK

€ 3.00

29

0916728002
ref: 29

WASHER,LOCK

€ 3.00

30

0916928001
ref: 30

WASHER

€ 3.00

31-1

2434127A00
ref: 31-1
24341-27A01

GEAR,FOURTH DRIVEN

€ 80.00

31-2

2434127A01
ref: 31-2

GEAR,4TH DRIVEN(NT:28)

€ 80.00

32

2433227A00
ref: 32

BUSH

€ 13.50

33

0916728001
ref: 33

WASHER,LOCK

€ 3.00

34

2435127A00
ref: 34

GEAR,5TH DRIVEN(NT:27)

€ 117.00

35

2436120C00
ref: 35
24361-20C01

GEAR,SIXTH DRIVEN (NT:23)

€ 124.00

36

0926320040
ref: 36

BEARING(20X34X20)

€ 42.50

37

0422107209
ref: 37

PIN

€ 1.50

38-1

0926225105
ref: 38-1

BEARING(25X62X17)

€ 59.50

38-2

0926225115
ref: 38-2

BEARING(25X62X17)

€ 54.00

39-1

0939062006
ref: 39-1
09390-62012

C-RING

€ 5.00

39-2

0939062012
ref: 39-2

C RING

€ 5.00

40

0928334005
ref: 40

SEAL,OIL(34X62X6)

€ 14.50

41

2475127A01
ref: 41

RETAINER,DRIVE SHAFT OIL SEAL

€ 8.00

42-1

0110706107
ref: 42-1
01500-06107

BOLT

€ 2.00

42-2

0150006123
ref: 42-2
01500-0612A

BOLT

€ 2.00

43

2751017C00
ref: 43
27510-17C10

SPROCKET,ENGINE (NT:15)

€ 67.00

44

0821125402
ref: 44
09181-25268

WASHER,THRUST

€ 3.00

45

0918025091
ref: 45

SPACER(25X34X17.5)

€ 16.00

46

0915920004
ref: 46

NUT

€ 12.00

47-1

0114706168
ref: 47-1
01570-06167

BOLT

€ 2.50

47-2

0157006163
ref: 47-2
01570-0616A

BOLT

€ 2.50

48

0821206222
ref: 48

WASHER

€ 1.50

49-1

2760020C00118
ref: 49-1
27600-24F20-120

52500118

€ 243.00

49-2

2760017C20118
ref: 49-2
27600-24F20-120

CHAIN ASSEMBLY,DRIVE

€ 243.00
