CYLINDER
GSX750F KATANA 1993 (P) USA (E03)

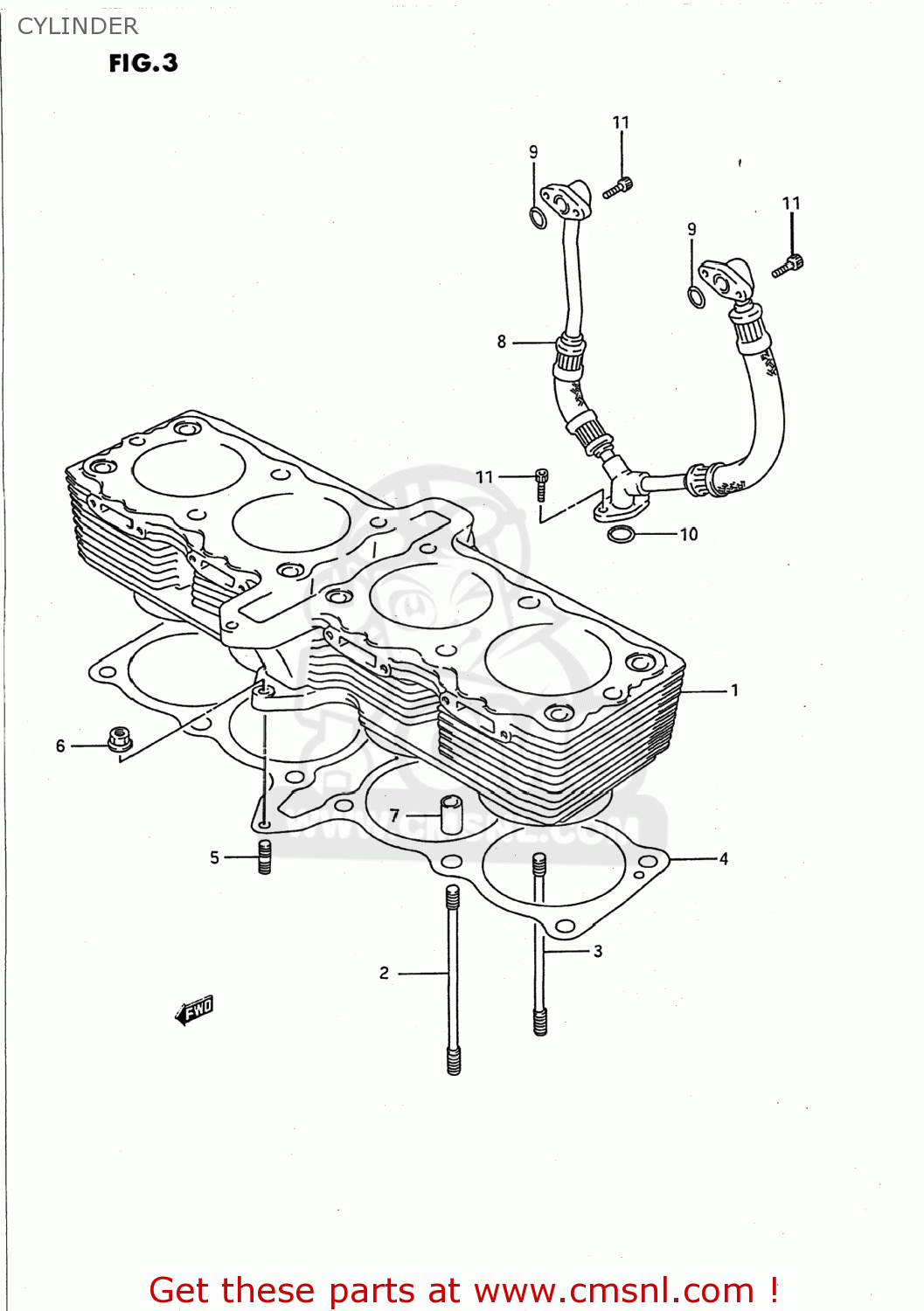

Cylinder diagram GSX750F KATANA 1993 (P) USA (E03)
CYLINDER GSX750F KATANA 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121020C00
ref: 1-1
CYLINDER
€ 833.00
1-2
1121020C10
ref: 1-2
CYLINDER COMP
€ 589.50
2
0910810097
ref: 2
BOLT,STUD
€ 10.00
3
0910810096
ref: 3
BOLT,STUD
€ 12.50
4-1
1124127A02
ref: 4-1
11241-27A04
GASKET,CYLINDER (NAS)
€ 20.00
4-2
1124127A03
ref: 4-2
11241-27A04
GASKET,CYLINDER (NAS)
€ 20.00
5-1
0142106205
ref: 5-1
01421-0620A
STUD BOLT L:20
€ 2.50
5-2
0142106203
ref: 5-2
01421-0620A
STUD,M6X1X32
€ 2.50
6-1
0831616064
ref: 6-1
08316-1006B
NUT 6MM
€ 2.50
6-2
0831610063
ref: 6-2
08316-1006B
NUT
€ 2.50
7
0920613006
ref: 7
09206-13017
PIN
€ 9.00
8-1
1132817C01
ref: 8-1
11328-17C03
HOSE
€ 216.50
8-2
1132817C02
ref: 8-2
11328-17C03
HOSE,OIL HEAD COOLER
€ 216.50
8-3
1132817C03
ref: 8-3
HOSE,OIL HEAD COOLER
€ 216.50
9
0928014011
ref: 9
O RING(D:2.5,ID:13.8)
€ 3.50
10
0928015007
ref: 10
O RING(D:2.4,ID:15.8)
€ 2.00
11-1
0711006165
ref: 11-1
07130-0616B
BOLT
€ 3.00
11-2
0713006163
ref: 11-2
07130-0616B
BOLT,OIL FILLE
€ 3.00
