FRONT BRAKE HOSE

GSX750F KATANA 1993 (P) USA (E03)

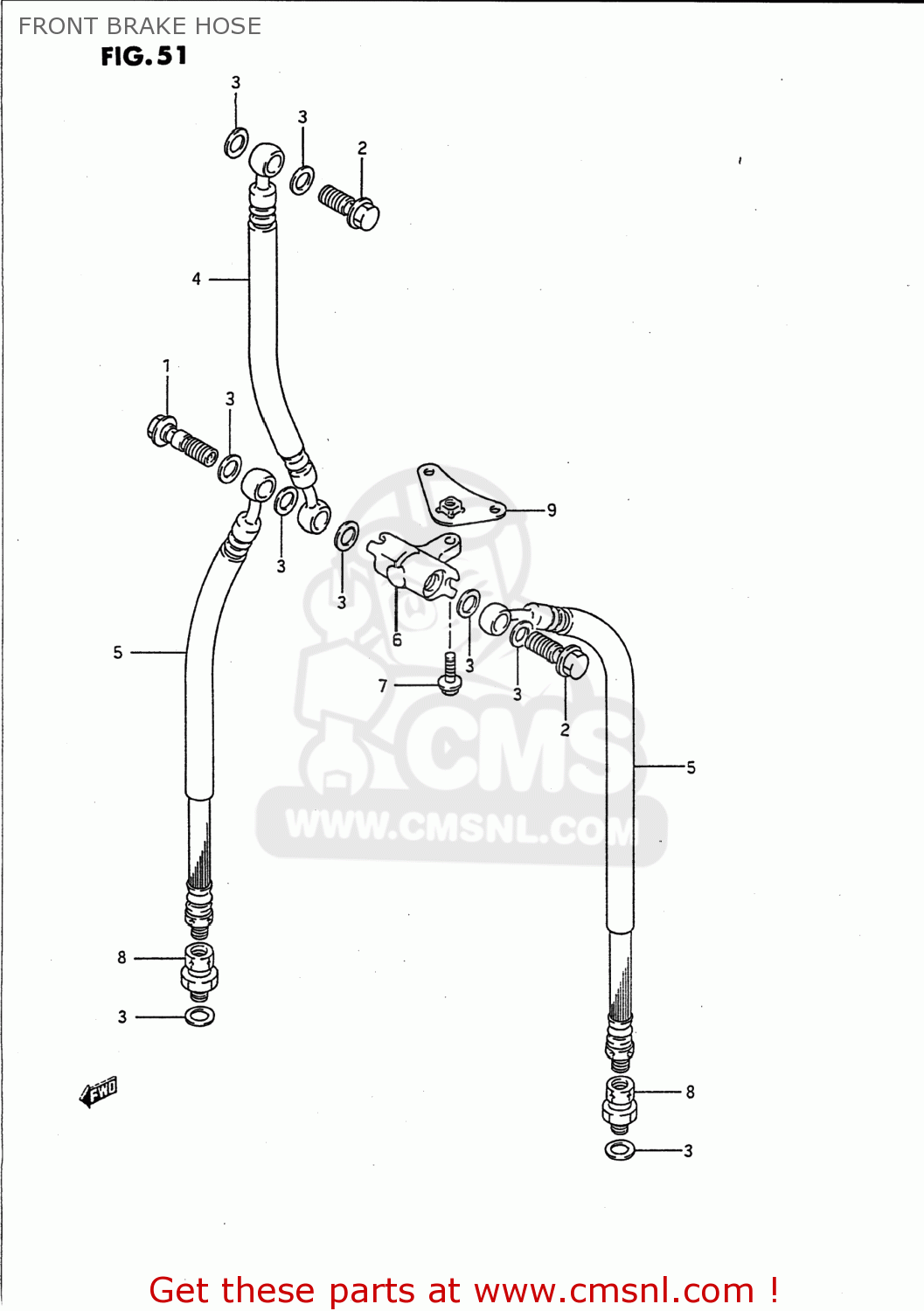

Front brake hose diagram GSX750F KATANA 1993 (P) USA (E03)

FRONT BRAKE HOSE GSX750F KATANA 1993 (P) USA (E03)

FRONT BRAKE HOSE GSX750F KATANA 1993 (P) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

0936010018
ref: 1

BOLT UNION

€ 7.00

2-1

0936010017
ref: 2-1

BOLT UNION

€ 6.50

2-2

0936010039
ref: 2-2
09360-10061

BOLT UNION

€ 6.50

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

5948020C01
ref: 4

HOSE,FR BRAKE NO.1

€ 55.50

5

5924019C10
ref: 5

HOSE,FR BRAKE NO.2

€ 48.00

6-1

5949145000
ref: 6-1
59491-45001

JOINT,BRAKE HOSE

€ 29.00

6-2

5949145001
ref: 6-2

JOINT,BRAKE HOSE

€ 29.00

7-1

0151706207
ref: 7-1
01550-06207

BOLT 6X20

€ 2.50

7-2

0155006203
ref: 7-2
01550-0620A

BOLT

€ 2.50

8

5929043500
ref: 8

ADAPTER,BRAKE HOSE

€ 34.50

9

5939019C00
ref: 9

PLATE,FRONT BRAKE JOINT

€ 3.00
