FRONT DAMPER
GSX750F KATANA 1993 (P) USA (E03)

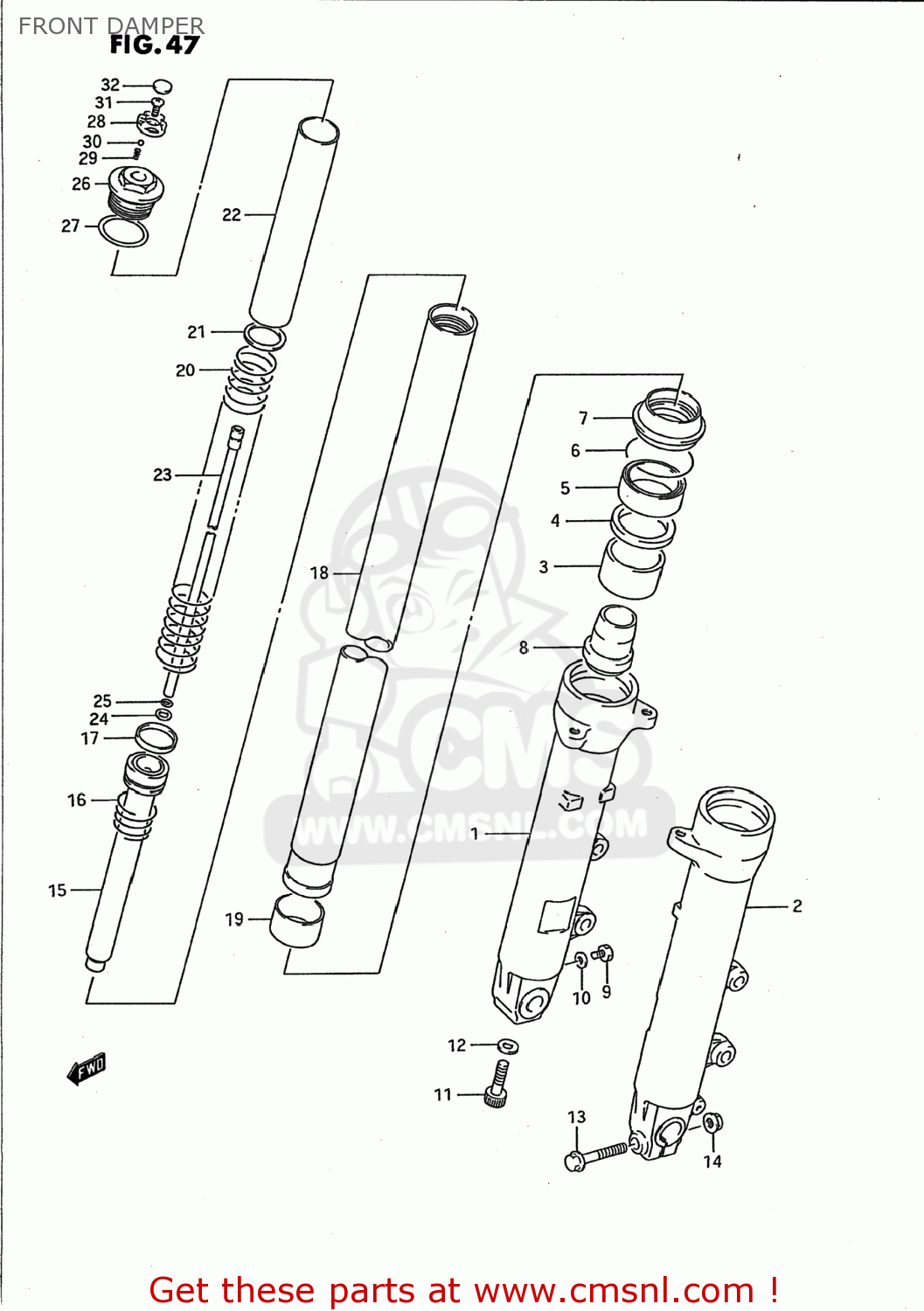

Front damper diagram GSX750F KATANA 1993 (P) USA (E03)
FRONT DAMPER GSX750F KATANA 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110320C00
ref:
51103-20C00-13L
DAMPER ASSEMBLY,RIGHT
€ 691.50
5110320C0012R
ref:
DAMPER ASSEMBLY,RIGHT
€ 691.50
5110320C0013L
ref:
DAMPER ASSY,FR FORK,R
€ 691.50
5110420C00
ref:
51104-20C03-13L
DAMPER ASSEMBLY,LEFT
€ 675.00
5110420C0012R
ref:
51104-20C03-12R
DAMPER ASSEMBLY,LEFT
€ 675.00
5110420C0013L
ref:
51104-20C03-13L
DAMPER ASSEMBLY,LEFT
€ 675.00
1-1
5113019C10
ref: 1-1
51130-19C10-13L
TUBE,OUTER,RIGHT
€ 395.00
1-2
5113019C1012R
ref: 1-2
51130-19C10-13L
TUBE,OUTER,RIGHT
€ 395.00
1-3
5113019C1013L
ref: 1-3
TUBE,OUTER,R
€ 395.00
2-1
5114019C10
ref: 2-1
51140-19C10-13L
TUBE,OUTER,LEFT
€ 385.50
2-2
5114019C1012R
ref: 2-2
51140-19C10-13L
TUBE,OUTER,LEFT
€ 385.50
2-3
5114019C1013L
ref: 2-3
TUBE,OUTER,L
€ 385.50
3
5115248B31
ref: 3
BUSH,GUIDE
€ 20.00
4
5116838B00
ref: 4
SPACER,SEAL
€ 5.00
5-1
5115312C00
ref: 5-1
51153-08D00
OIL SEAL,FRONT FORK
€ 15.50
5-2
5115308D00
ref: 5-2
SEAL,OIL
€ 15.50
6
5155638B00
ref: 6
CIRCLIP,FORK OIL SEAL
€ 4.50
7-1
5157138B00
ref: 7-1
51173-15D00
BOOT
€ 19.50
7-2
5117308D00
ref: 7-2
51173-15D00
DUST SEAL,FRONT FORK
€ 19.50
7-3
5117315D00
ref: 7-3
DUST SEAL
€ 19.50
8-1
5119519C10
ref: 8-1
51195-20C10
PIECE,OIL LOCK
€ 42.00
8-2
5119520C10
ref: 8-2
PIECE,OIL LOCK
€ 42.00
9
0910006011
ref: 9
BOLT(6X8)
€ 2.50
10
5118331030
ref: 10
GASKET,DRAIN,PLUG (NAS)
€ 4.00
11
5114748130
ref: 11
BOLT(8X27)
€ 3.50
12
5114836011
ref: 12
GASKET (NAS)
€ 4.00
13
0155008507
ref: 13
BOLT
€ 3.50
14
0831610087
ref: 14
NUT
€ 2.50
15
5119420C00
ref: 15
SEAT,UNDER
€ 0.00
16
5117748B31
ref: 16
SPRING,REBOUND
€ 12.00
17
5119619C00
ref: 17
RING,PISTON
€ 4.50
18
5111020C00
ref: 18
TUBE,INNER
€ 328.00
19
5112148B31
ref: 19
BUSH,SLIDE
€ 15.50
20
5117120C00
ref: 20
SPRING,MAIN
€ 52.00
21
5119219C00
ref: 21
JOINT,SPRING
€ 3.50
22
5117634C00
ref: 22
SPACER,SPRING
€ 6.00
23
5211119C10
ref: 23
ROD,INNER
€ 47.00
24
5135419C10
ref: 24
WASHER
€ 2.00
25
5111719C10
ref: 25
O RING
€ 2.00
26
5135120C00
ref: 26
BOLT,FORK
€ 52.50
27
5111712C00
ref: 27
O RING
€ 3.00
28
5219319C10
ref: 28
PLATE,ADJUSTER
€ 6.50
29
5111819C10
ref: 29
SPRING
€ 2.00
30
5183517C00
ref: 30
BALL
€ 3.00
31
5118819C10
ref: 31
SCREW
€ 2.00
32
5118919C10
ref: 32
CAP
€ 7.00
